Motherboard Size

NANO 120mmX120mm

Processors

Intel Pentium J5005 Processor, 4 cores 4 threads, 1.50GHz, up to 2.80GHz
4M Cache, TDP 10W

Intel Celeron N4000 Processor, 2 cores 2 threads, 1.10GHz, up to 2.60GHz

4M Cache, TDP 6W

Memory Types

1x SO-DIMM DDR4 slot Max support to 8GB

Expansion

1 x M.2 Key M（2280）for M.2 SATA SSD
1 x Mini PCIe slot for Wifi/Bluetooth /4G module

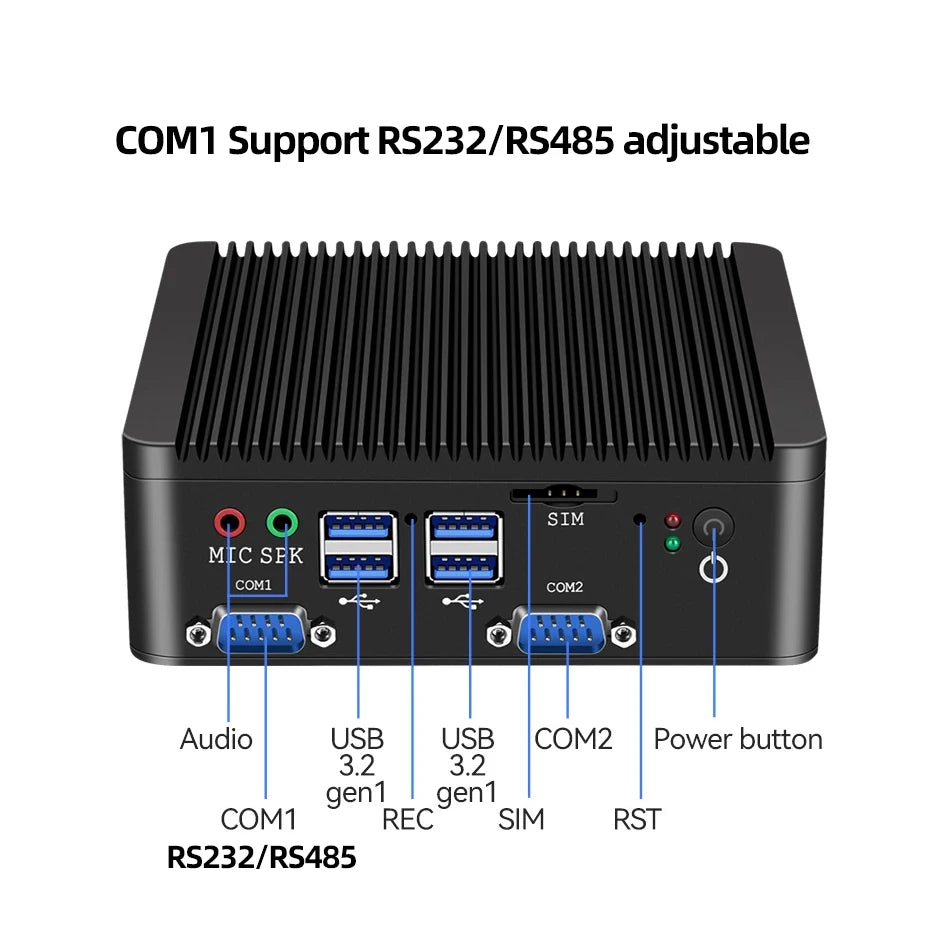

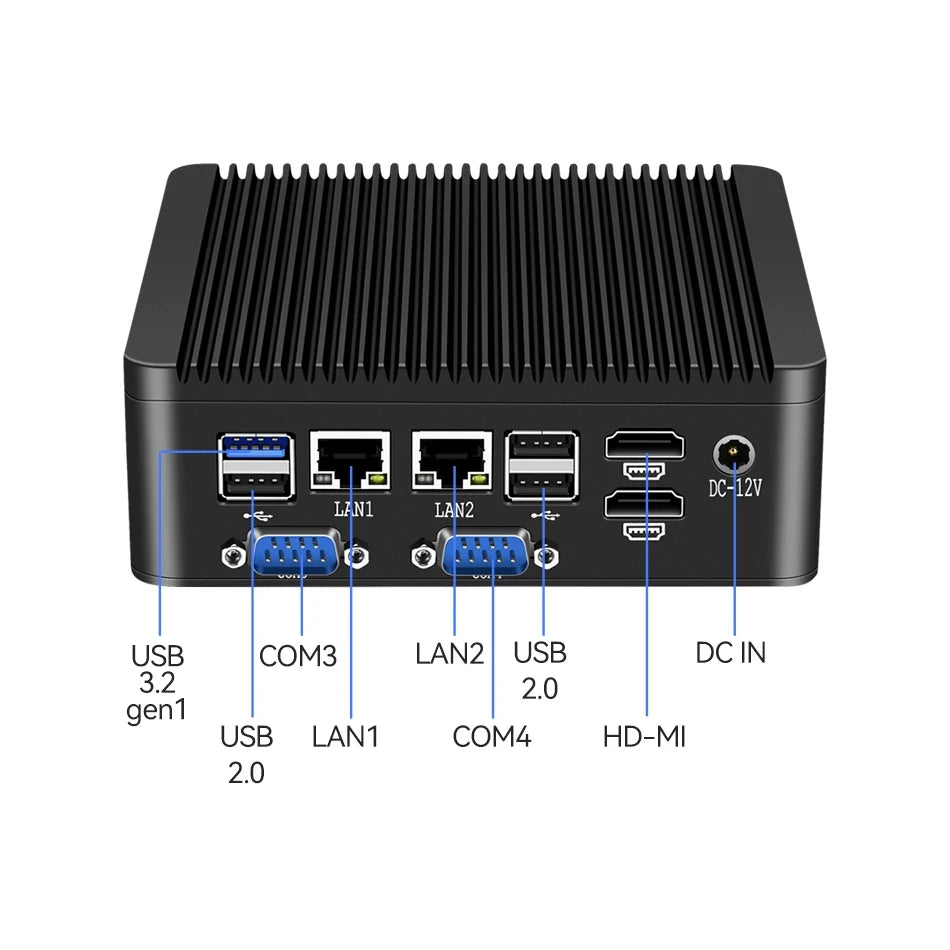

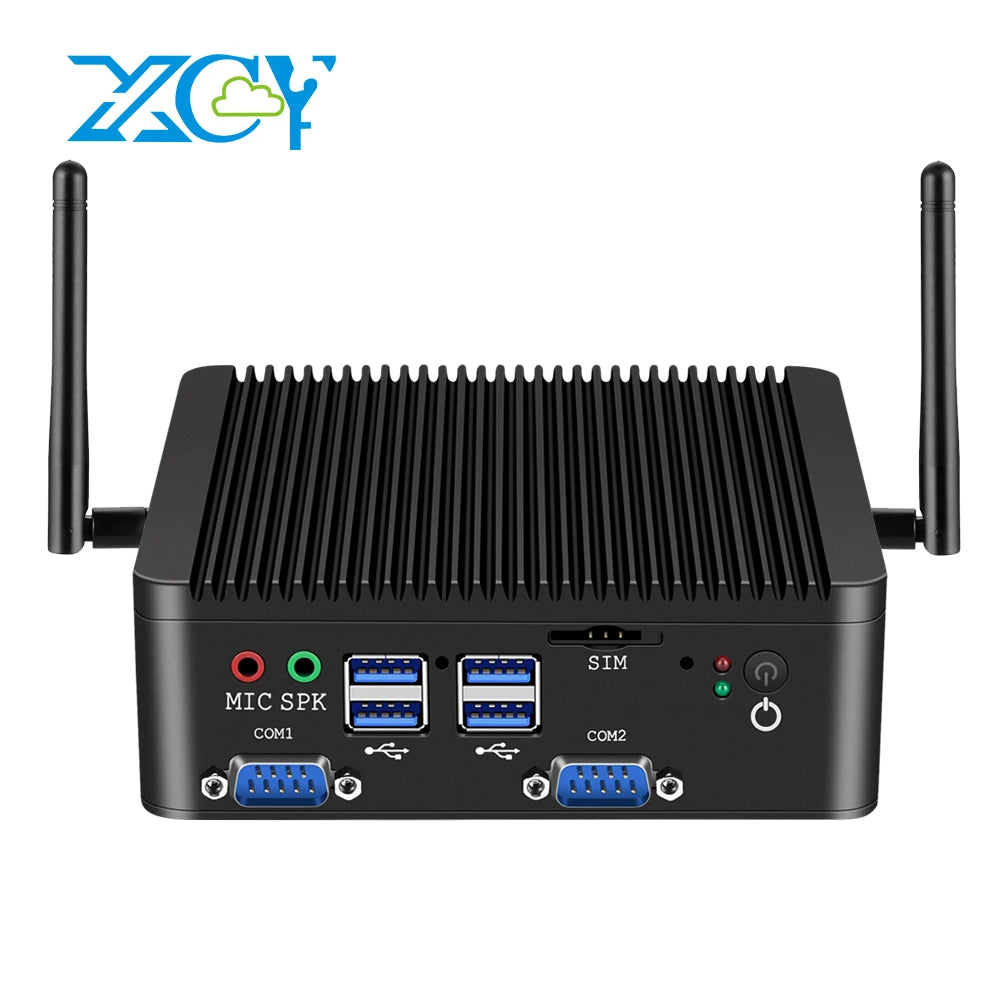

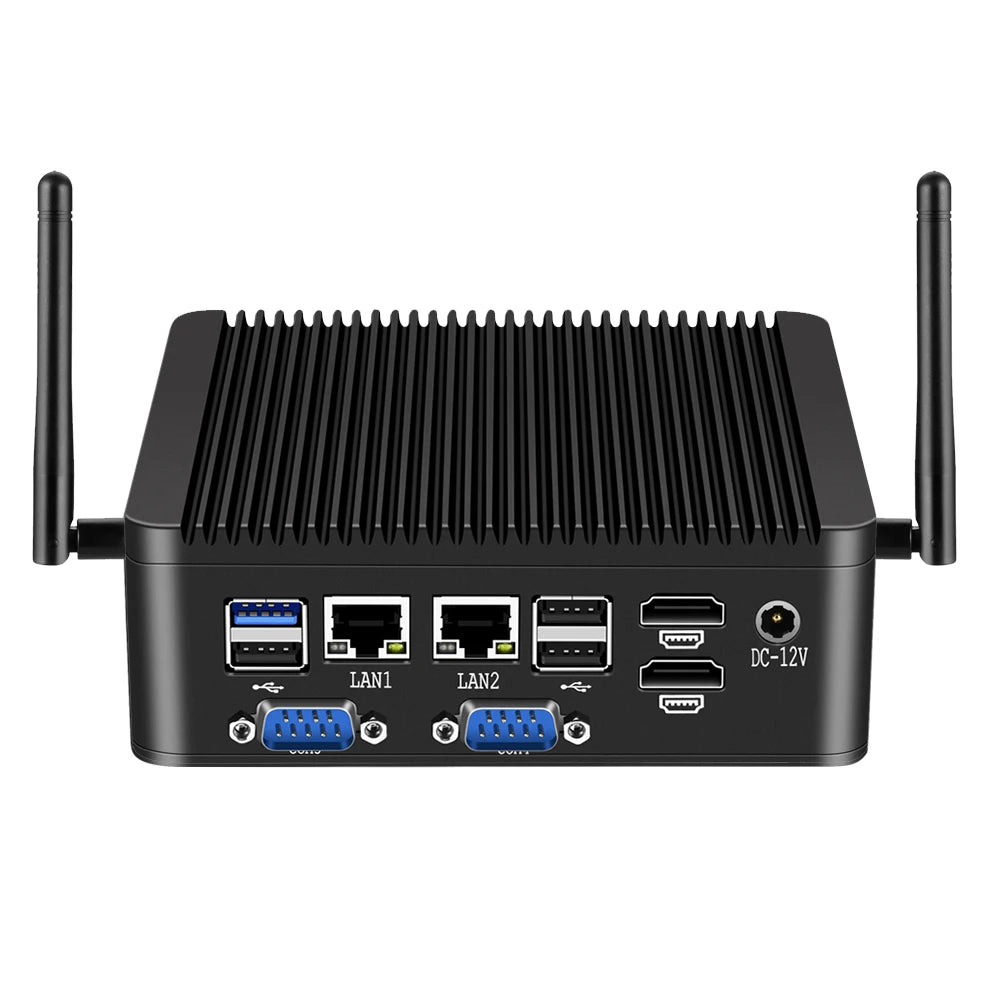

External Connectors

1 x DC-IN
2 x HDMI
3 x USB2.0
2 x LAN
1 x MIC-IN
1 x HP-OUT
5 x USB3.2 GEN1(5Gbps)
1 x REC (Ghost button (one-key system restore)
1 x RST (Reset button & CLR_CMOS button)
2 x LED,1 x HDD LED（red）
1 x WIFI&4G module states（green）
1 x PWR_BT

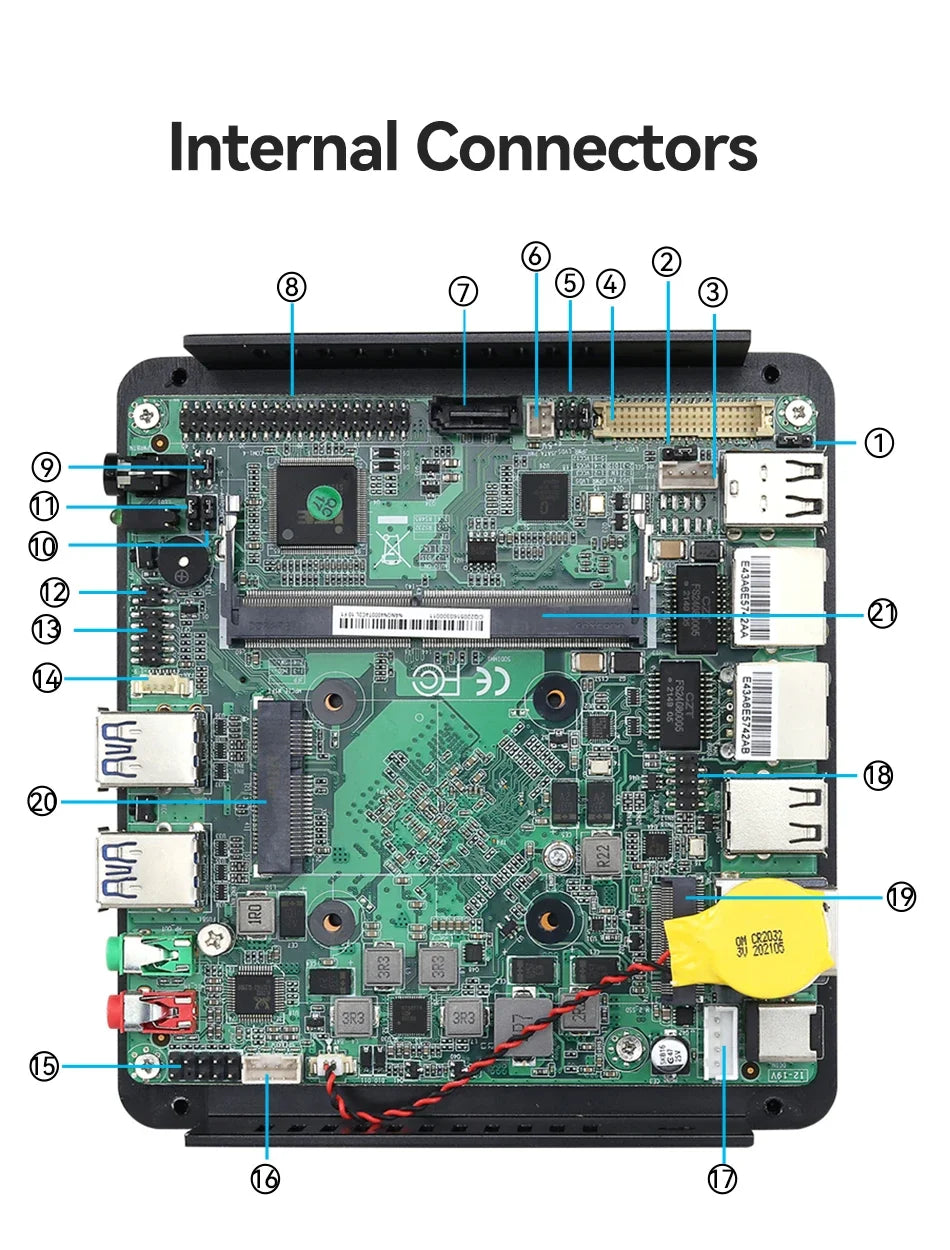

Internal Connectors

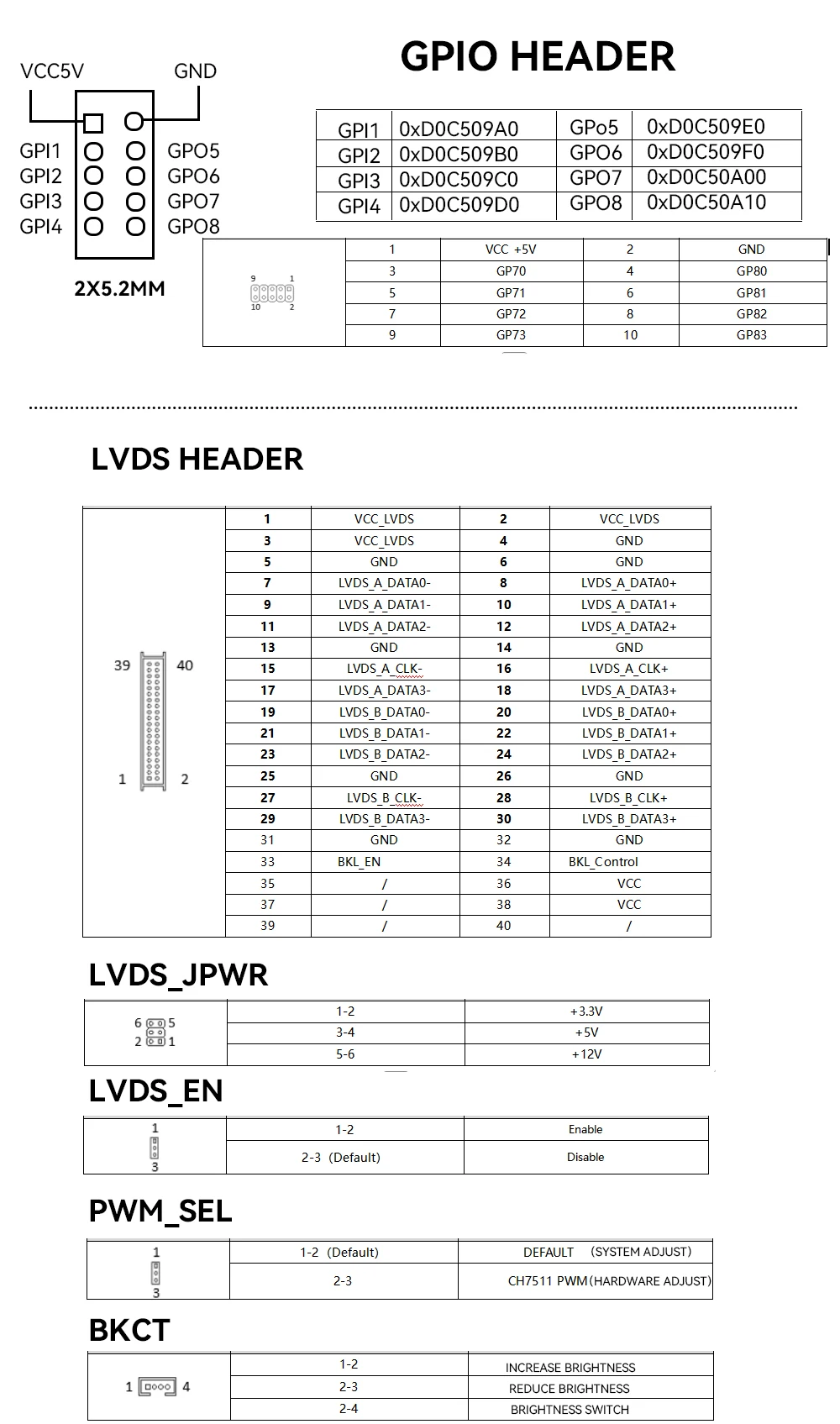

1 x Debug
1 x LVDS
1 x SATA_PWR
1 x SATA
1 x COM_CONN（4*COM232, COM1 support RS232/485 adjust on J1 jumper）
1 x JFP (automatic power on set up jumper)
1 x GPIO
1 x AUDIO
1 x Speaker
1 x F_USB2.0

BIOS

AMI BIOS

Power Management

Supports Advanced Power Management ACPI
Support hardware real-time monitoring ,
Support automatic power-on

Display

Support synchronous/asynchronous triple display (HDMI1, HDMI2, LVDS3)

Backlight Adjustment

LVDS can support system/hardware adjustment, select adjustment method through jump cap (default system adjustment)

LAN

2 x Realtek Gigabit Ethernet（RTL8111H/8111G）

Audio

Realtek ALC662/ALC887, Integrated power amplifier NS4251 3W@4Ω max

I/O Chipset

ITE8786E-I

Power Input

DC 12-19V

Working Environment

Working temperature: -15℃~60℃
Ambient humidity: 0%~95%

Operating System

Windows 10 / Windows 11/ Linux

Dimension

136 x 126x 46mm

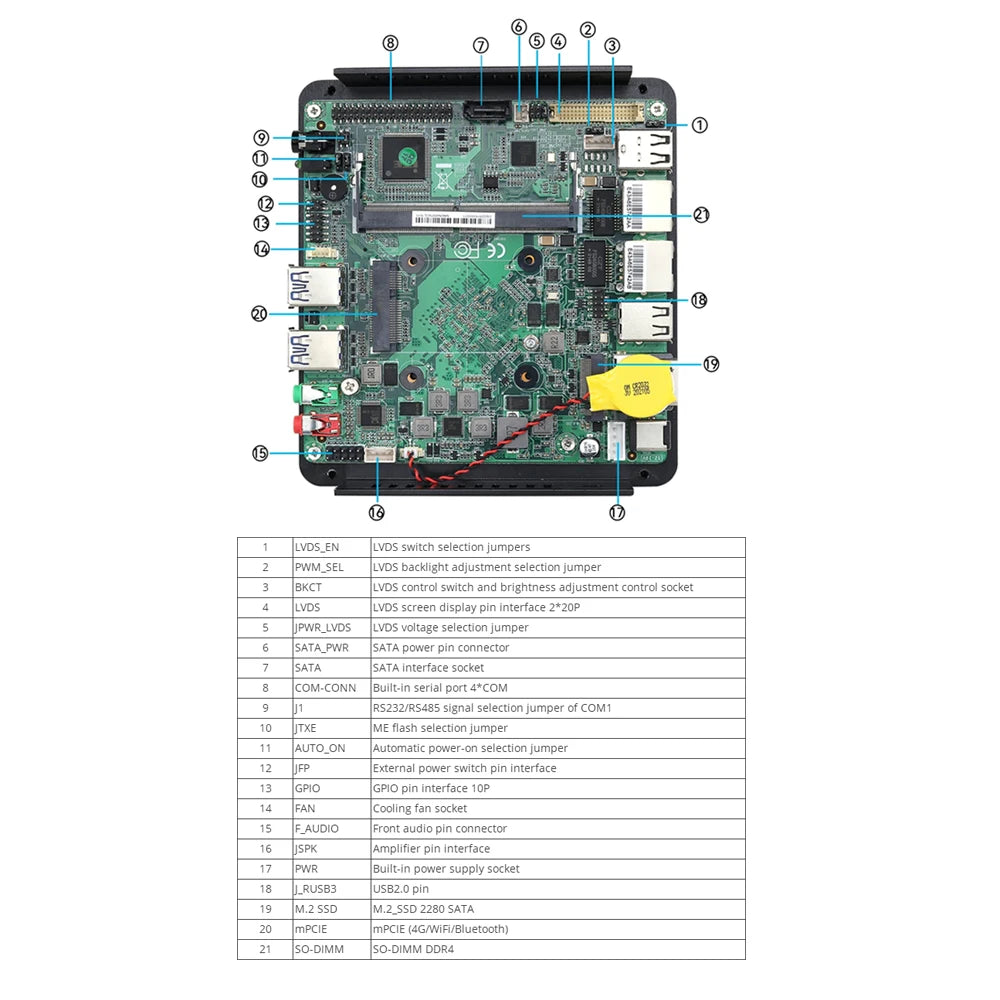

Item

Description

1

LVDS_EN

LVDS switch selection jumpers

2

PWM_SEL

LVDS backlight adjustment selection jumper

3

BKCT

LVDS control switch and brightness adjustment control socket

4

LVDS

LVDS screen display pin interface 2*20P

5

JPWR_LVDS

LVDS voltage selection jumper

6

SATA_PWR

SATA power pin connector

7

SATA

SATA interface socket

8

COM-CONN

Built-in serial port 4*COM

9

J1

RS232/RS485 signal selection jumper of COM1

10

JTXE

ME flash selection jumper

11

AUTO_ON

Automatic power-on selection jumper

12

JFP

External power switch pin interface

13

GPIO

GPIO pin interface 10P

14

FAN

Cooling fan socket

15

F_AUDIO

Front audio pin connector

16

JSPK

Amplifier pin interface

17

PWR

Built-in power supply socket

18

J_RUSB3

USB2.0 pin

19

M.2 SSD

M.2_SSD 2280 SATA

20

mPCIE

mPCIE (4G/WiFi/Bluetooth)

21

SO-DIMM

SO-DIMM DDR4
