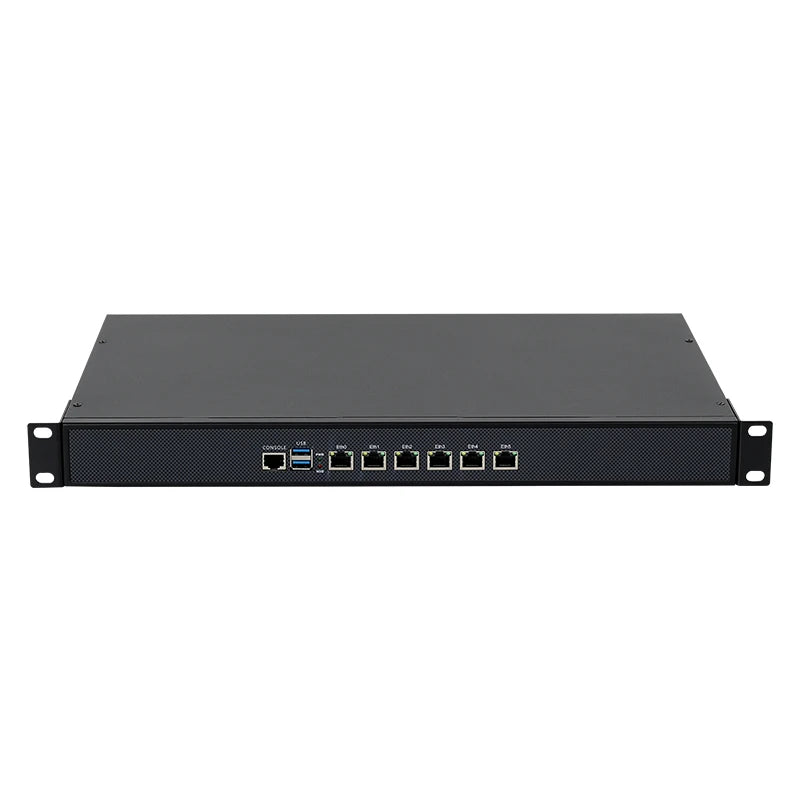

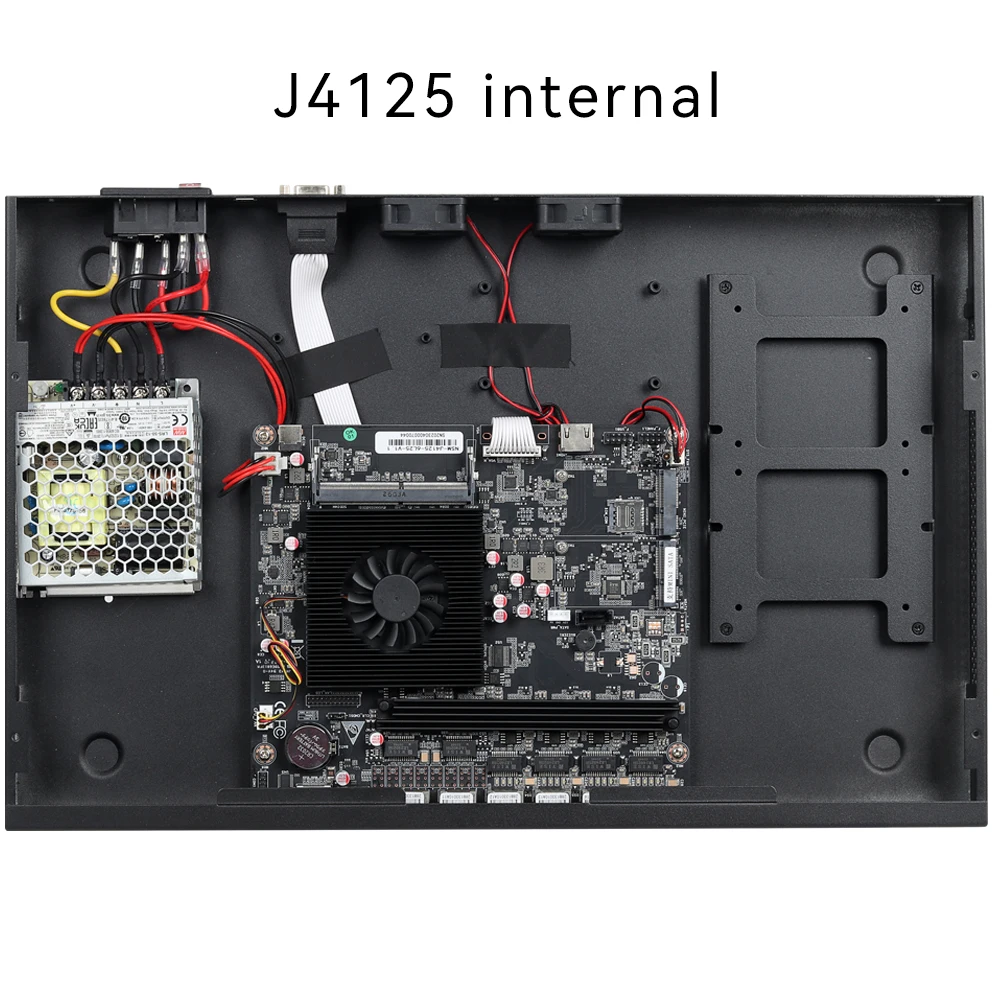

Model

J4125 6ETH

Case Materials

SGCC

Case Size

440 x 285 x 44.5mm

Netweight

3.15 KGS

CPU

Intel Celeron J4125 Processor, 4 cores 4 threads,
base frequency 2.00GHz,max turbo frequency 2.70GHz

Chipset

Intel CPU Integrated

Graphics

Intel HD Graphics

Network Card

6*Intel 82574L Gigabit Ethernet

Memory

1*SO-DIMM, DDR4 Memory, max support to 8GB

Storage

2*SATA, 1*MSATA

Expansion

1* Mini PCIe slot, 1x SIM slot

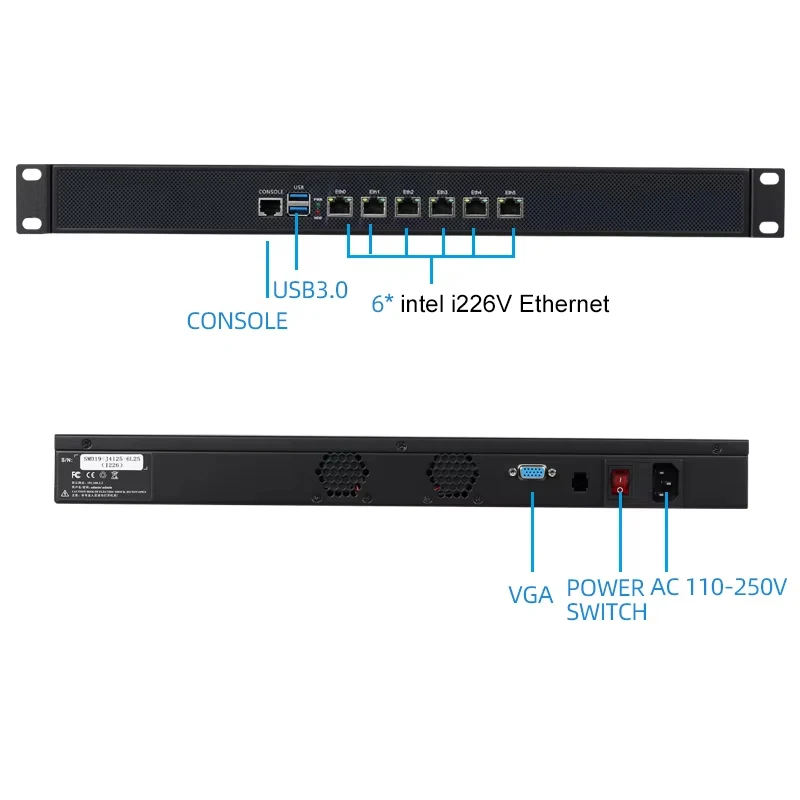

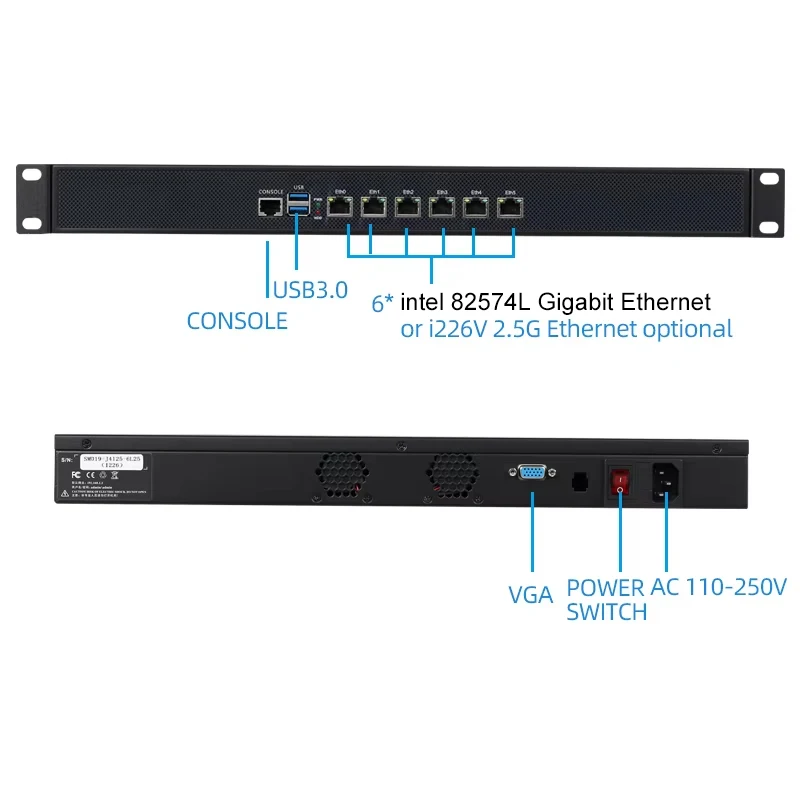

Front Panel

1* CONSOLE (RJ-45 to COM)
2* USB3.0
2* LED(HDD LED/Power LED)
6* RJ-45 LAN

Rear Panel

1* Power Key
1* DC IN
1* VGA

OS Support

Windows 10/Windows 11, Linux Ubuntu 16.04, CentOS 7.0, Pfsense and more

BIOS

AMI 64M BIOS

Watchdog

Supports hardware reset function (256 levels, 0-255 seconds)

Cooling

CPU heatsink and fan

Power Input

AC 110V to 250V

Operating Temperature

﹣10℃to 60℃

Storage Temperature

﹣20℃to 70℃

Operating Humidity

0%-95% Relative humidity, non-condensing

Model

4405U 6xETH

Case Materials

SGCC

Case Size

440 x 285 x 44.5mm

Netweight

3.15 KGS

CPU

Intel Pentium 4405U Processor, 2 cores 4 threads,

base frequency 2.10GHz

Chipset

Intel CPU Integrated

Graphics

Intel HD Graphics

Network Card

6*Intel 82574L Gigabit Ethernet or intel i226V Ethernet optional

Memory

1*SO-DIMM, DDR3L or DDR4 Memory

Storage

2*SATA, 1*MSATA

Expansion

1* Mini PCIe slot

Front Panel

1* CONSOLE (RJ-45 to COM)

2* USB3.0

2* LED(HDD LED/Power LED)

6* RJ-45 LAN

Rear Panel

1* Power Key

1* DC IN

1* VGA

OS Support

Windows 10/Windows 7, Linux Ubuntu 16.04, CentOS 7.0, pfsense and more

BIOS

AMI 64M BIOS

Watchdog

Supports hardware reset function (256 levels, 0-255 seconds)

Cooling

CPU heatsink and fan

Power Input

AC 110V to 250V

Operating Temperature

﹣10℃to 60℃

Storage Temperature

﹣20℃to 70℃

Operating Humidity

0%-95% Relative humidity, non-condensing

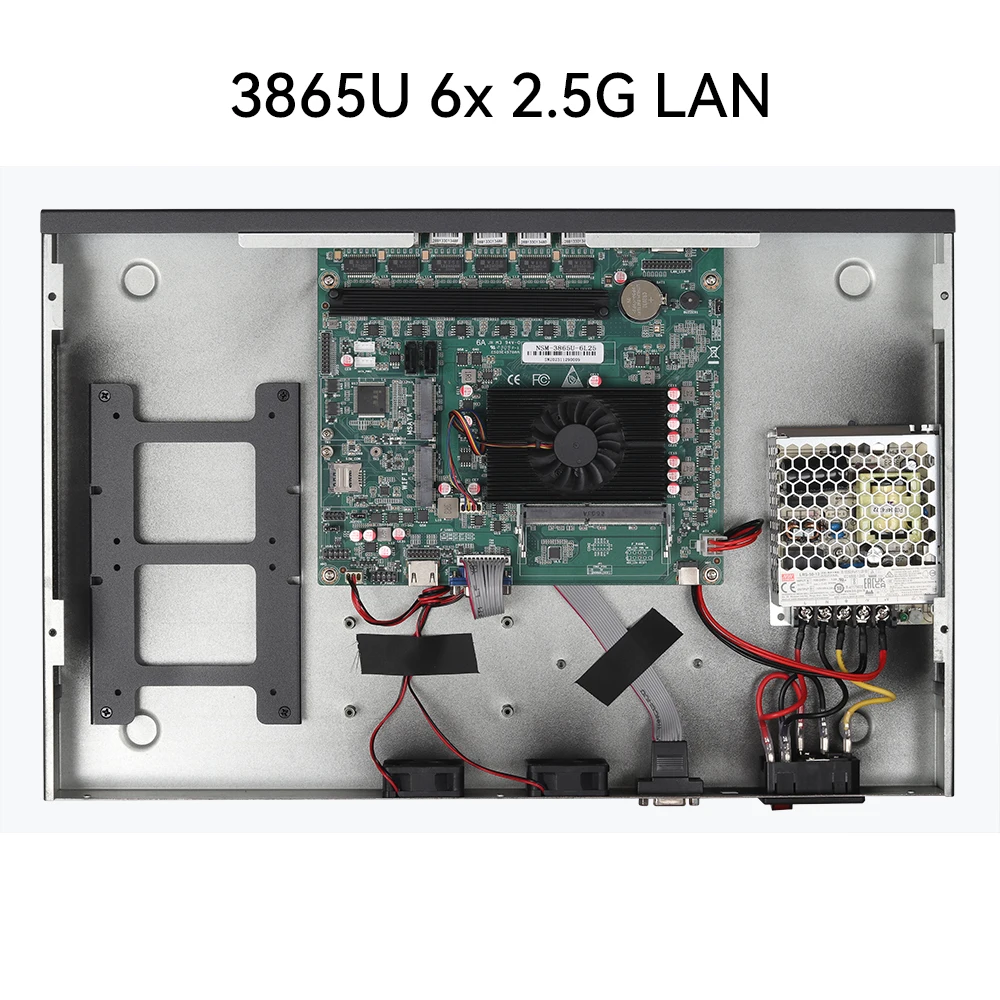

Model

3865U 6 x 2.5G ETH

Case Materials

SGCC

Case Size

440 x 285 x 44.5mm

Netweight

3.15 KGS

CPU

Intel Celeron 3865U Processor, 2 cores 2 threads,

base frequency 1.80GHz

Chipset

Intel CPU Integrated

Graphics

Intel HD Graphics

Network Card

6*Intel i226V 2.5G Ethernet

Memory

1*SO-DIMM, DDR4 Memory, max support to 32GB

Storage

2*SATA, 1*MSATA

Expansion

1* Mini PCIe slot

Front Panel

1* CONSOLE (RJ-45 to COM)

2* USB3.0

2* LED(HDD LED/Power LED)

6* RJ-45 LAN

Rear Panel

1* Power Key

1* DC IN

1* VGA

OS Support

Windows 10/Windows 7, Linux Ubuntu 16.04, CentOS 7.0

BIOS

AMI 64M BIOS

Watchdog

Supports hardware reset function (256 levels, 0-255 seconds)

Cooling

CPU heatsink and fan

Power Input

AC 110V to 250V

Operating Temperature

-10℃ to 60℃

Storage Temperature

-20℃ to 70℃

Operating Humidity

0%-95% Relative humidity, non-condensing

Model

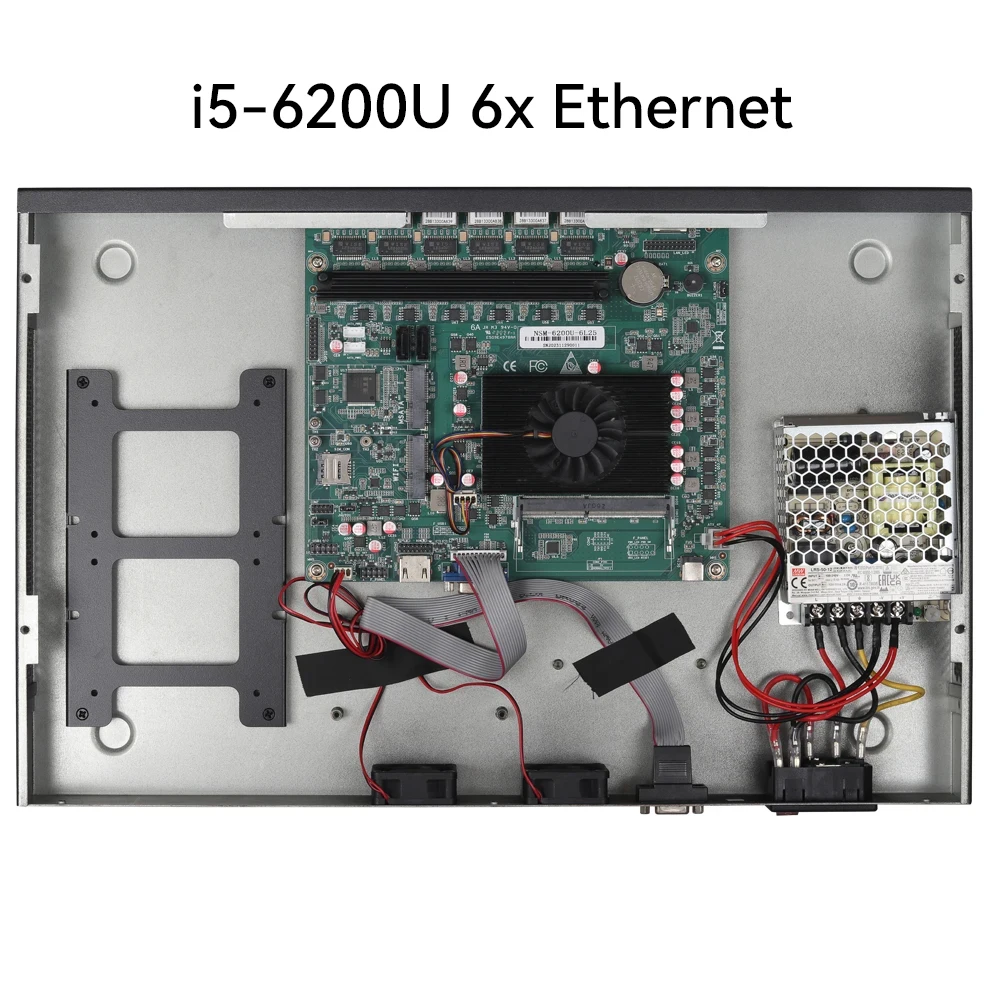

i5-6200U/6300U 6 x 2.5G ETH

Case Materials

SGCC

Case Size

440 x 285 x 44.5mm

Netweight

3.15 KGS

CPU

Intel Core i5-6200U Processor, 2 cores 4 threads,

base frequency 2.30GHz, up to 2.80GHz

Chipset

Intel CPU Integrated

Graphics

Intel HD Graphics

Network Card

6*Intel i226V 2.5G Ethernet

Memory

1*SO-DIMM, DDR4 Memory, max support to 32GB

Storage

2*SATA, 1*MSATA

Expansion

1* Mini PCIe slot, 1x SIM slot

Front Panel

1* CONSOLE (RJ-45 to COM)

2* USB3.0

2* LED(HDD LED/Power LED)

6* RJ-45 LAN

Rear Panel

1* Power Key

1* DC IN

1* VGA

OS Support

Windows 10/Windows 7, Linux Ubuntu 16.04, CentOS 7.0, pfsense and more

BIOS

AMI 64M BIOS

Watchdog

Supports hardware reset function (256 levels, 0-255 seconds)

Cooling

CPU heatsink and fan

Power Input

AC 110V to 250V

Operating Temperature

-10℃ to 60℃

Storage Temperature

-20℃ to 70℃

Operating Humidity

0%-95% Relative humidity, non-condensing

Model

i5-6200U/6300U 6 x TH

Case Materials

SGCC

Case Size

440 x 285 x 44.5mm

Netweight

3.15 KGS

CPU

Intel Core i5-6200U Processor, 2 cores 4 threads,

base frequency 2.30GHz, up to 2.80GHz

Chipset

Intel CPU Integrated

Graphics

Intel HD Graphics

Network Card

6*Intel 82574L/82583V/i211 Gigabit Ethernet optional

Memory

1*SO-DIMM, DDR3L Memory, max support to 16GB

Storage

2*SATA, 1*MSATA

Expansion

1* Mini PCIe slot, 1x SIM slot

Front Panel

1* CONSOLE (RJ-45 to COM)

2* USB3.0

2* LED(HDD LED/Power LED)

6* RJ-45 LAN

Rear Panel

1* Power Key

1* DC IN

1* VGA

OS Support

Windows 10/Windows 7, Linux Ubuntu 16.04, CentOS 7.0, pfsense and more

BIOS

AMI 64M BIOS

Watchdog

Supports hardware reset function (256 levels, 0-255 seconds)

Cooling

CPU heatsink and fan

Power Input

AC 110V to 250V

Operating Temperature

-10℃ to 60℃

Storage Temperature

-20℃ to 70℃

Operating Humidity

0%-95% Relative humidity, non-condensing

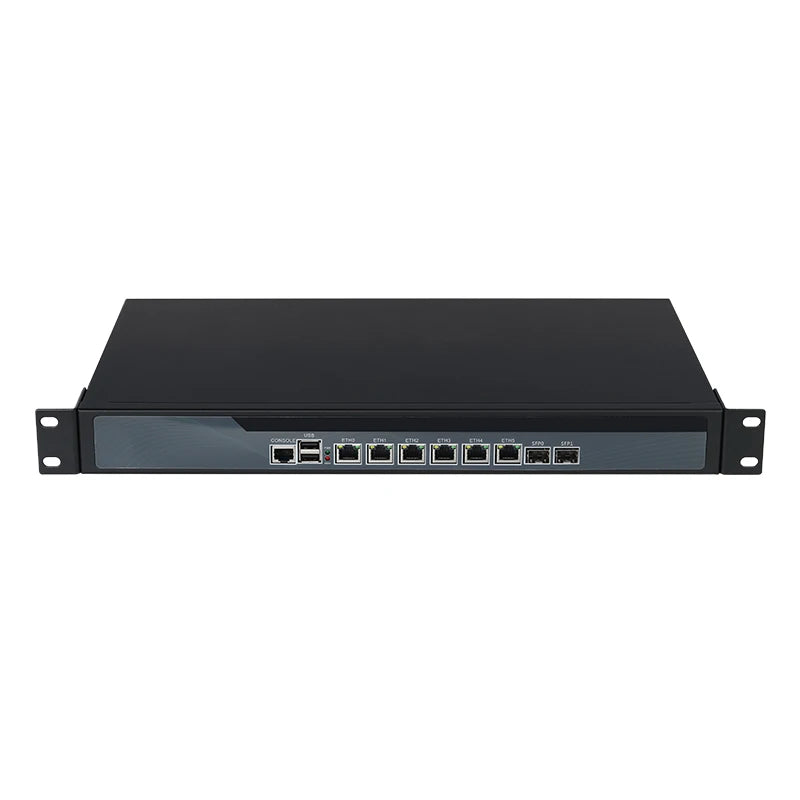

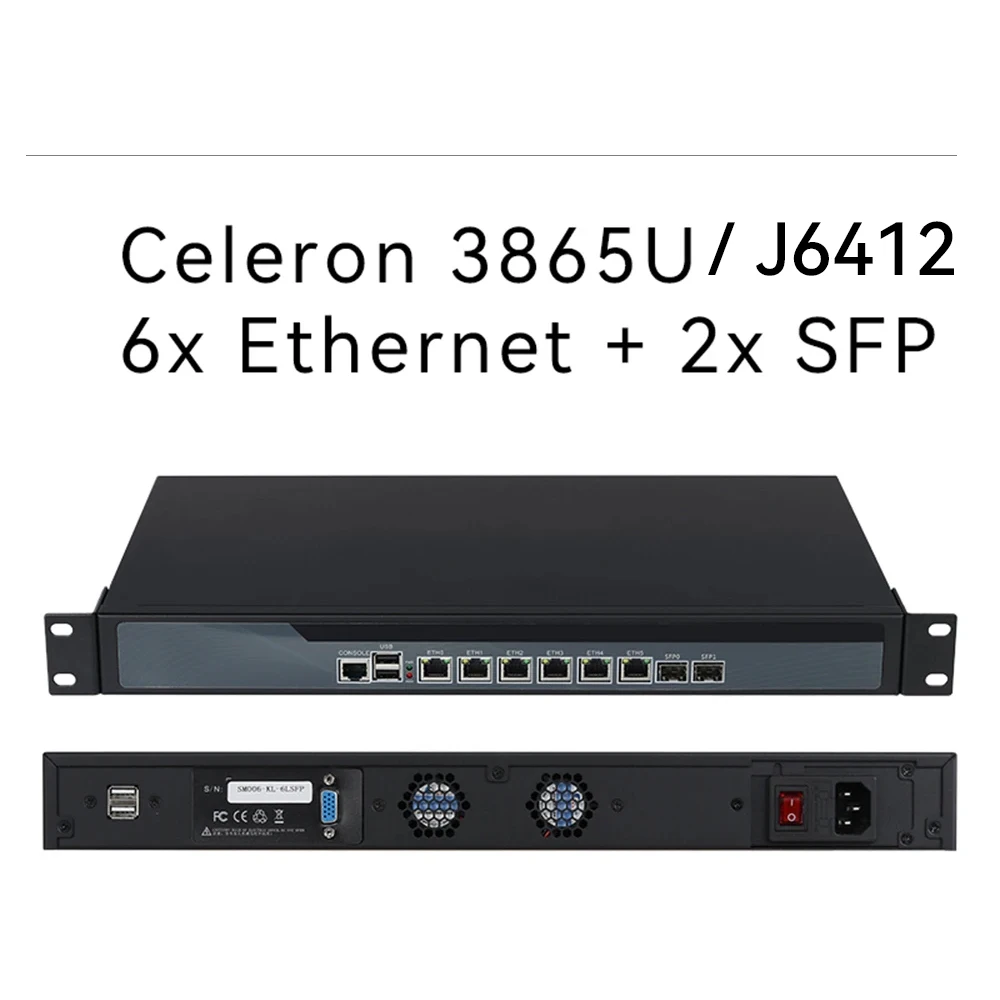

Model

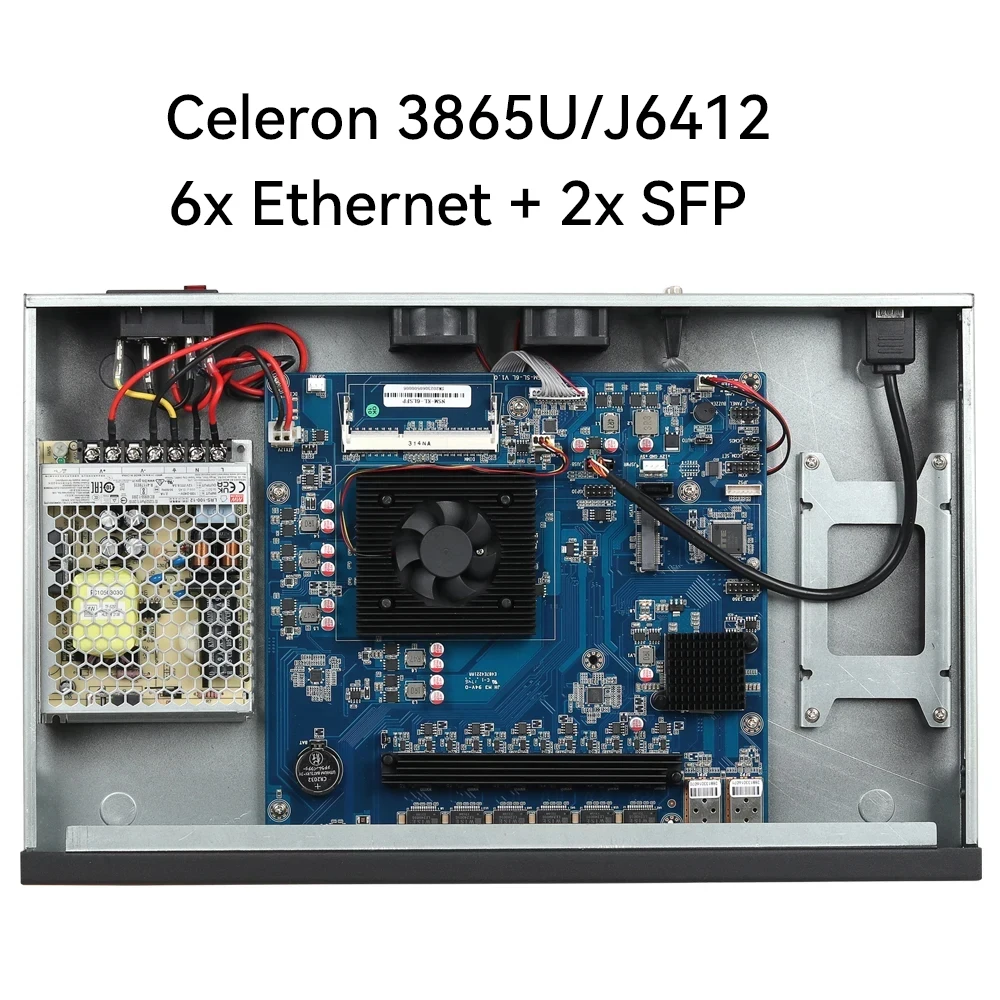

3865U/J6412 6x ETH +2x SFP

Case Materials

Aluminum Alloy

Case Size

432 x 266 x 46mm

Netweight

3.3 KGS

CPU

Intel Celeron 3865U Processor, 2 cores 2 threads,base frequency 1.80GHz

Intel  Celeron J6412 Processor, 4 cores 4 threads, up to 2.60GHz

Chipset

Intel CPU with Intel HD Grapghics 610 and North and South Bridge chipsets Integrated

Graphics

Intel HD Graphics 610

Network Card

8*Intel 82574L Gigabit Ethernet,

2*SFP Intel I350AM2

Memory

1*SO-DIMM，DDR3L 1.35V 1333\1600MHz Memory, max support to 16GB

J6412 sue 1* SODIMM DDR4, max support 16GB

Storage

1*SATA2.0, 1* MSATA

Front Panel

1* CONSOLE (RJ-45 to COM)
2* USB2.0
2* LED(HDD LED/Power LED)
6* RJ-45 LAN
2* SFP

Rear Panel

1* Power Key
1* DC IN
1* VGA

OS Support

Windows 7/Windows 10, Linux Ubuntu 16.04, CentOS 7.0, pfsense and more

BIOS

AMI 64M BIOS

Watchdog

Supports hardware reset function (256 levels, 0-255 seconds)

Cooling

CPU heatsink and fan

Power Input

AC 110V to 250V

Operating Temperature

-10℃ to 60℃

Storage Temperature

-20℃ to 70℃

Operating Humidity

0%-95% Relative humidity, non-condensing

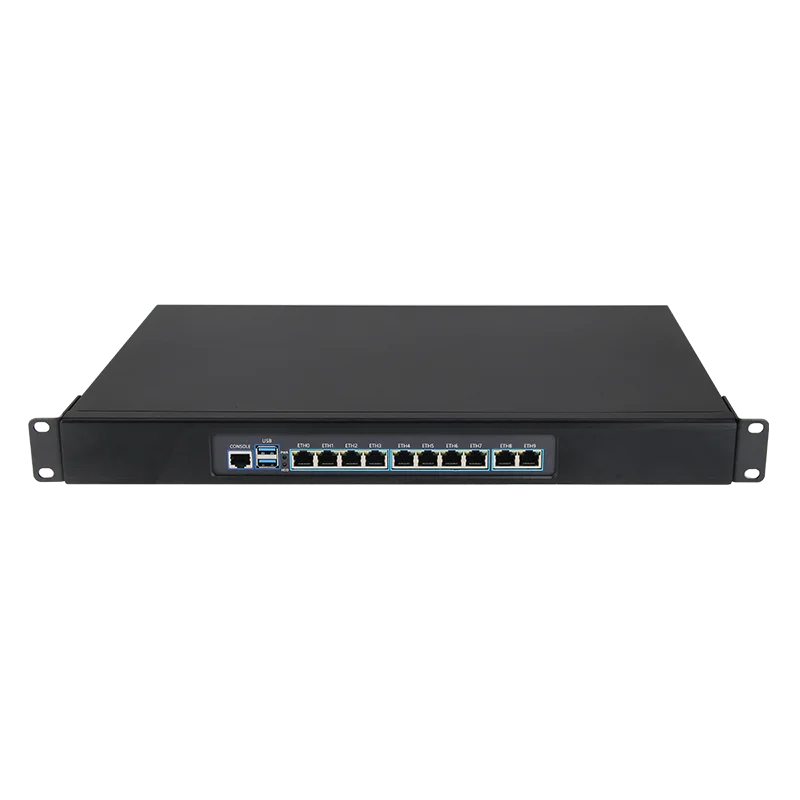

Model

3965U/4417U 10x Ethernet

Case Materials

Aluminum Alloy

Case Size

439 x 285 x 43mm

Netweight

3.65 KGS

CPU

Intel Celeron 3865U Processor, 2 cores 2 threads, base frequency 1.80GHz

Intel Celeron 3965U Processor, 2 cores 2 threads, base frequency 2.20GHz

Intel Pentium 4417U Processor, 2 cores 4 threads, base frequency 2.30GHz

Graphics

Intel HD Graphics 610

Network Card

3865U/3965U: 8* Intel i211/i210 Ethernet, 2* intel i350 Ethernet,

LAN 1/ LAN 2 support bypass;

4417U: 10* intel i226V Ethernet

Memory

2*SO-DIMM, DDR4, max support to 16GB

Storage

1*SATA, 1* MSATA

Expansion

1*Mini PCIe full height size slot, 1* SIM slot

Front Panel

1* CONSOLE (RJ-45 to COM)

2* USB3.0

2* LED (HDD LED/Power LED)

10* RJ-45 Gigabit LAN

Rear Panel

1* Power Key

1* DC IN

1* VGA

OS Support

Windows 7/Windows 10, Linux Ubuntu 16.04, CentOS 7.0, pfsense and more

BIOS

AMI 64M BIOS

Watchdog

Supports hardware reset function (256 levels, 0-255 seconds)

Cooling

CPU heatsink and cooling fan

Power Input

AC 110V to 250V

Operating Temperature

-10℃ to 60℃

Storage Temperature

-20℃ to 70℃

Operating Humidity

0%-95% Relative humidity, non-condensing

Model

i5-3210M 8x Ethernet

Case Materials

SGCC

Case Size

440 x 285 x 44.5mm

Netweight

3.15 KGS

CPU

Intel Core i5-3210M, 2 cores 4 threads,

base frequency 2.5GHz, up to 3.10GHz

Chipset

Intel CPU Integrated

Graphics

Intel HD Graphics

Network Card

6*Intel 82574L Gigabit Ethernet

Memory

1*SO-DIMM, DDR3L 1.5V, Memory, max support to 8GB

Storage

2*SATA2.0, 2*SATA3.0, 1*MSATA

Expansion

1* Mini PCIe slot

Front Panel

1* CONSOLE (RJ-45 to COM)

2* USB3.0

2* LED(HDD LED/Power LED)

8* RJ-45 LAN

Rear Panel

1* Power Key

1* DC IN

1* VGA

OS Support

Windows 10/Windows 7, Linux Ubuntu 16.04, CentOS 7.0, pfsense and more

BIOS

AMI 64M BIOS

Watchdog

Supports hardware reset function (256 levels, 0-255 seconds)

Cooling

CPU heatsink and fan

Power Input

AC 110V to 250V

Operating Temperature

-10℃ to 60℃

Storage Temperature

-20℃ to 70℃

Operating Humidity

0%-95% Relative humidity, non-condensing
