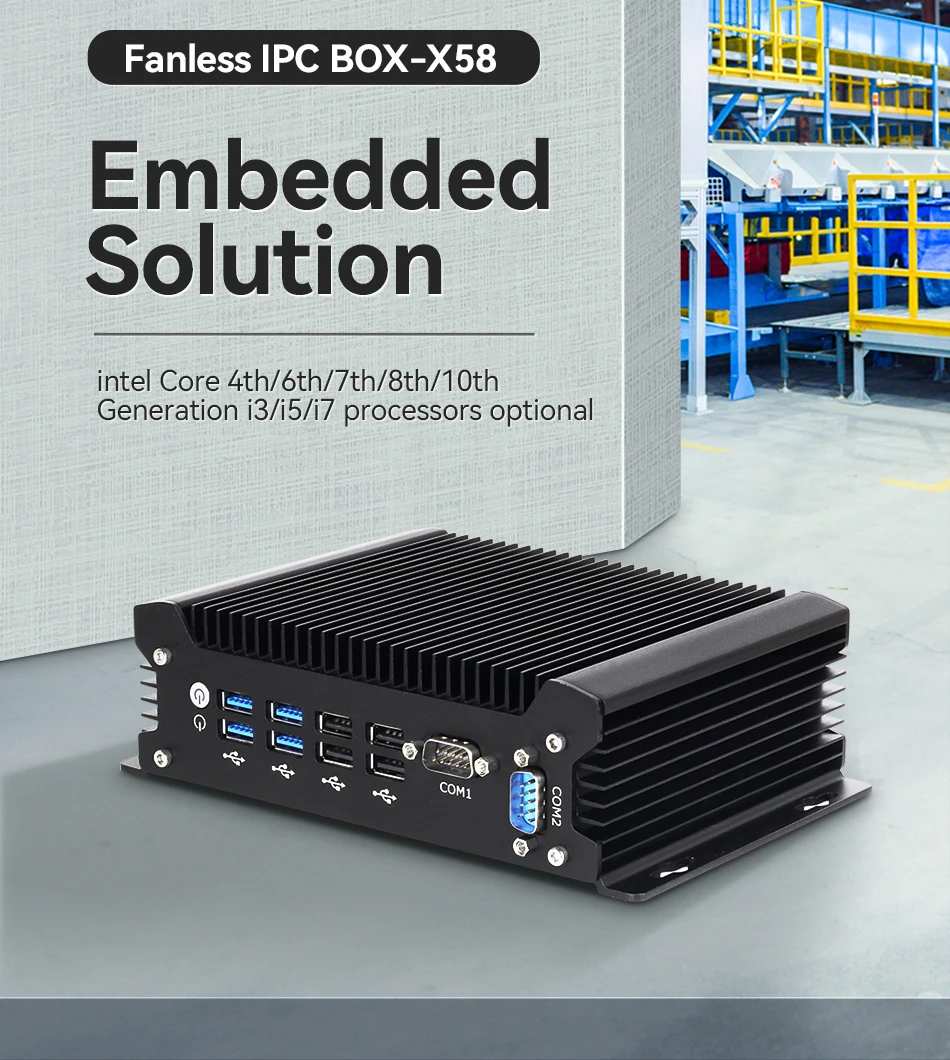

Processors Option

intel Core i5-4278U,2 cores 4 threads,3M Cache,2.60GHz, up to 3.10GHz
intel Core i7-4578U,2 cores 4 threads,4M Cache,3.00GHz, up to 3.50GHz
intel Core i3-6157U,2 cores 4 threads,3M Cache,2.40GHz

intelCore i3-7020U, 2 cores 4 threads, 3M Cache, 2.30GHz
intel Core i5-7267U,2 cores 4 threads,4M Cache,3.10GHz, up to 350GHz
intel Core i5-7360U,2 cores 4 threads,4M Cache,2.30GHz, up to 3.60GHz
intel Core i5-8350U,4 cores 8 threads,6M Cache,1.60GHz, up to 3.40GHz
intel Core i7-8565U,4 cores 8 threads,8M Cache,1.80GHz, up to 4.60GHz
intel Core i3-10110U,2 cores 4 threads,4M Cache,2.10GHz, up to 4.10GHz
intel Core i5-10310U,4 cores 8 threads,6M Cache,1.70GHz, up to 4.40GHz
intel Core i7-10710U,4 cores 8 threads,8M Cache,1.10GHz, up to 4.70GHz

intel Core i5-1235U, 10 Cores 12 Threads, 12M Cache, up to4.40GHz

intel Core i5-1335U,10 cores12 threads, 12M Cache, up to 4.60GHz,

intel Core i3-1215U, 6 cores 8 threads, 10M Cache, up to 4.40Ghz

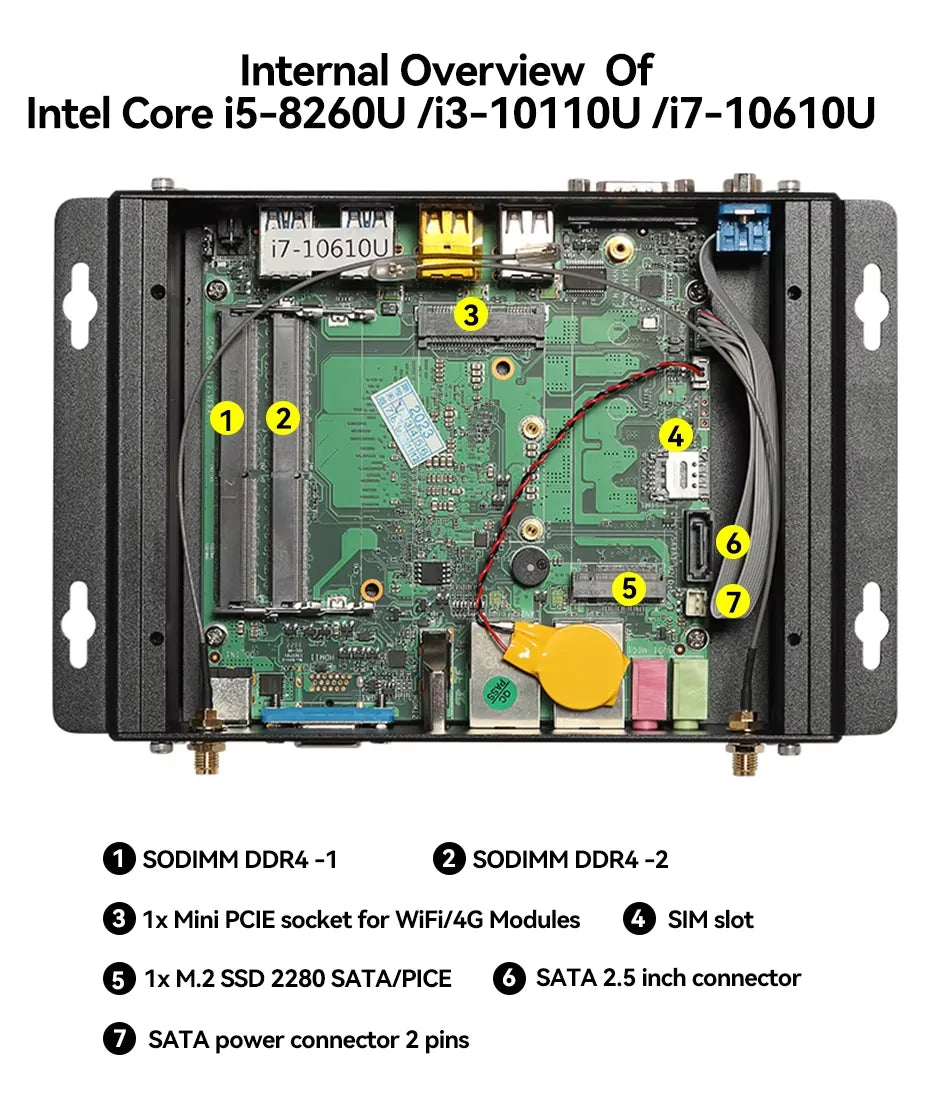

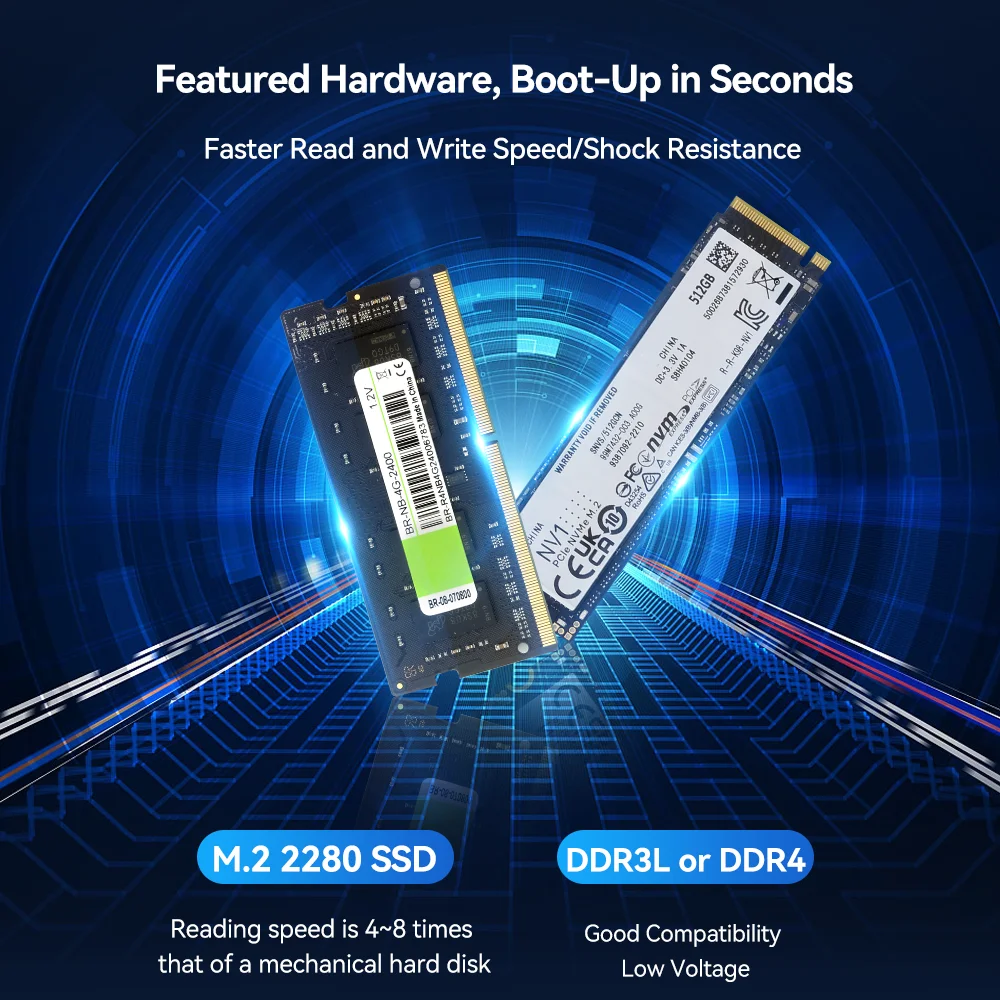

Memory Types

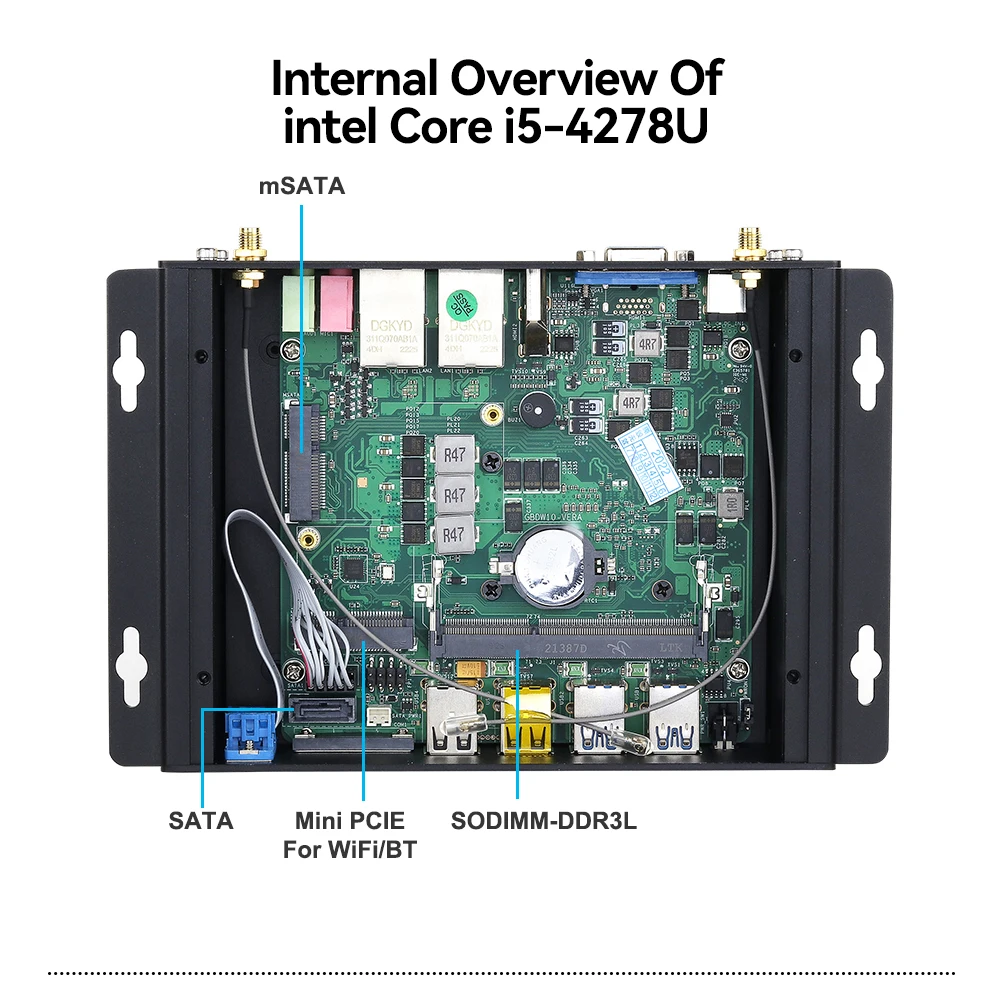

4th Generation processors: 1x SODIMM DDR3L,1 slot, max support 8GB

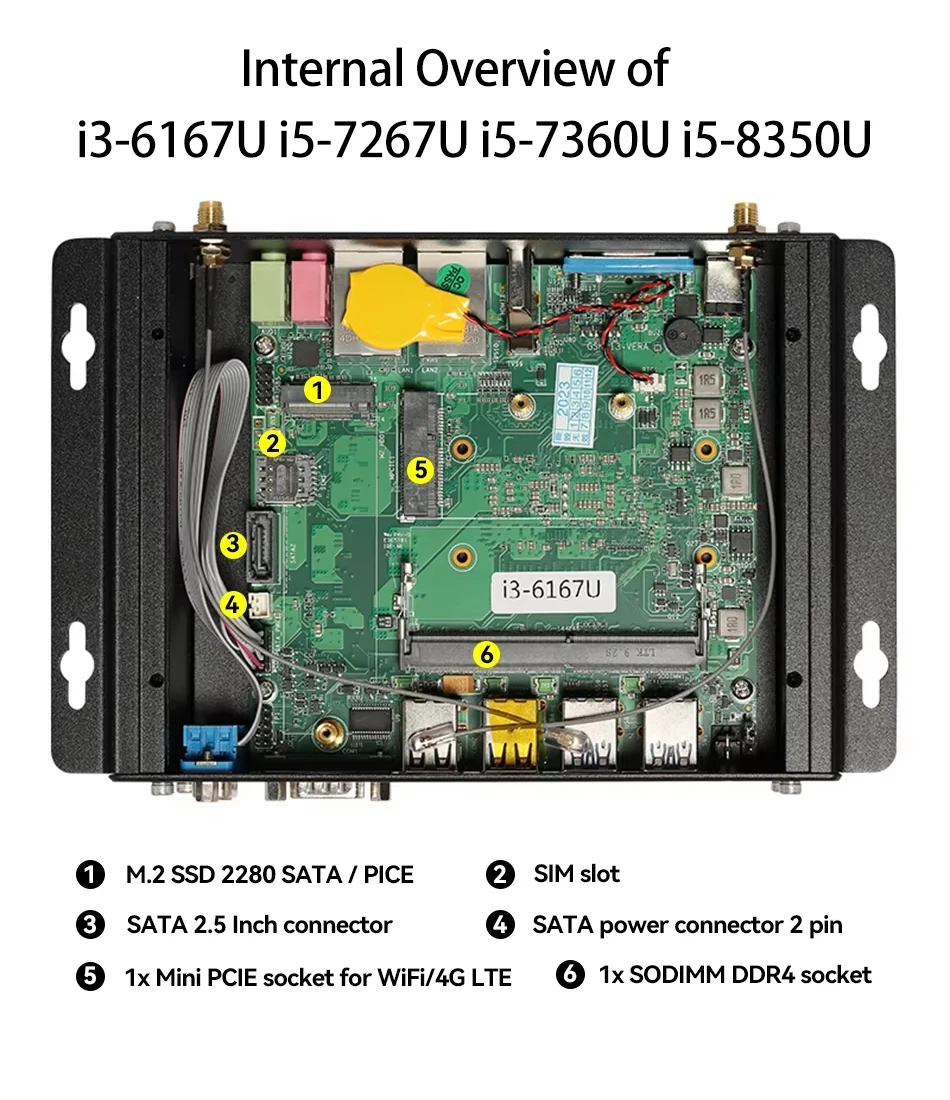

6th/7th/8th Generation processors: 1x SODIMM DDR4, 1 slot,
10th Generation processors: 2x SODIMM DDR4, 2 slots,

12th/13th Generation Procesors: 1x SODIMM DDR5, 1 slot

Hard Drive

4th Generation processors: 1x mSATA SSD
6th/7th/8th/10th/12th/13th Generation processors:1x M.2 SSD 2280 NVME/SATA

Graphics

Processor Graphics (depends on processor)

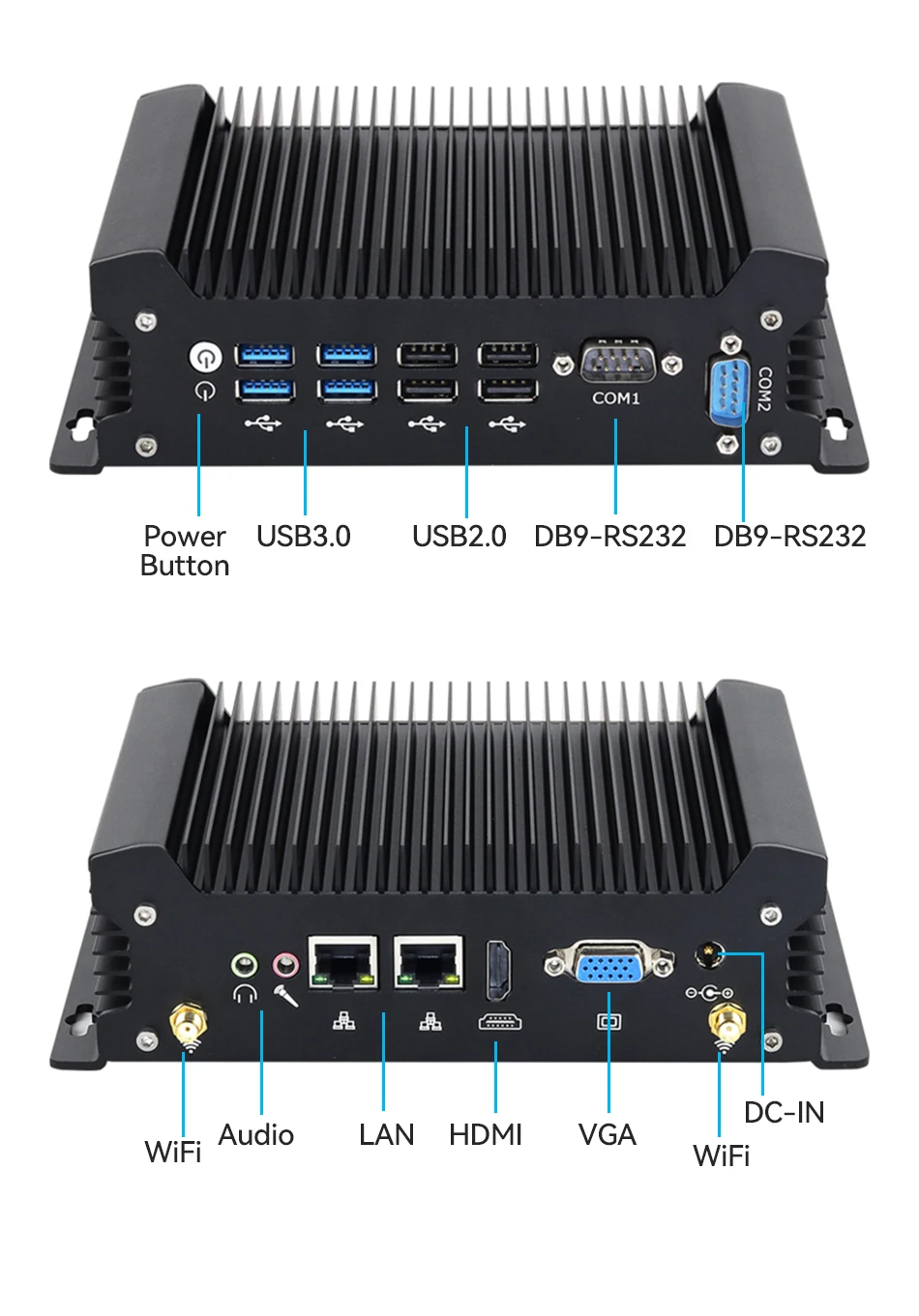

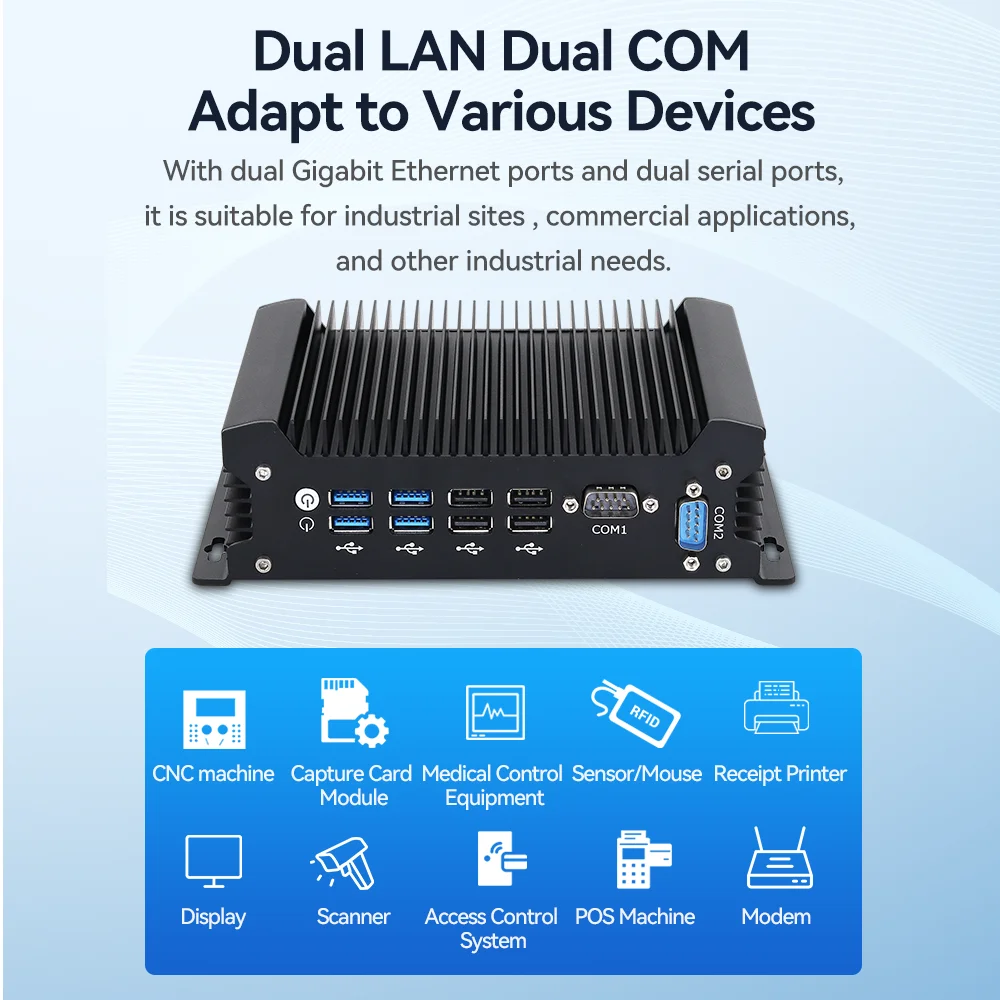

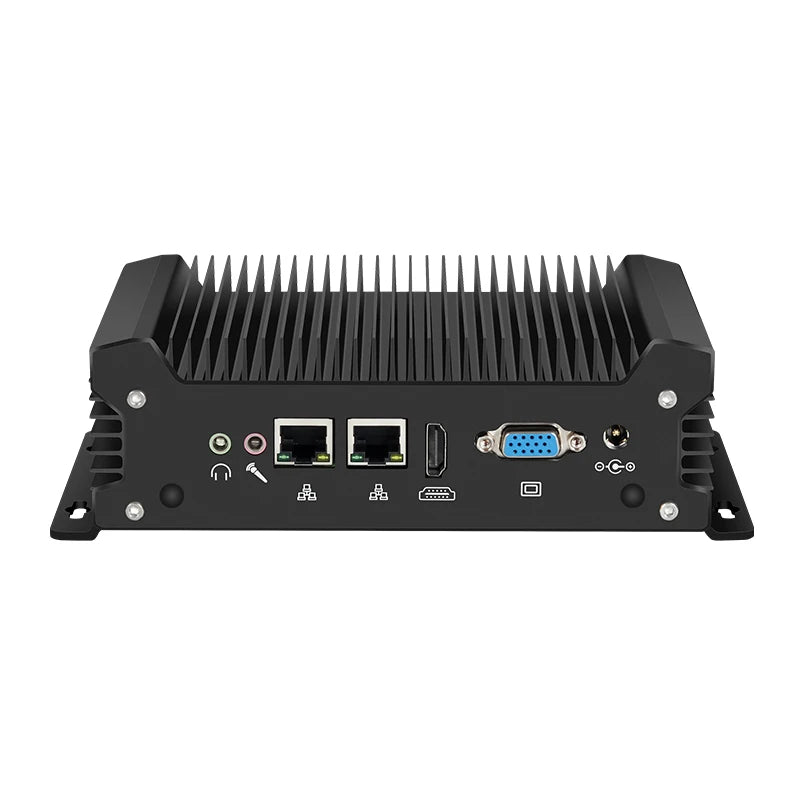

Ethernet

2 x GbE RJ45 Realtek 8111H

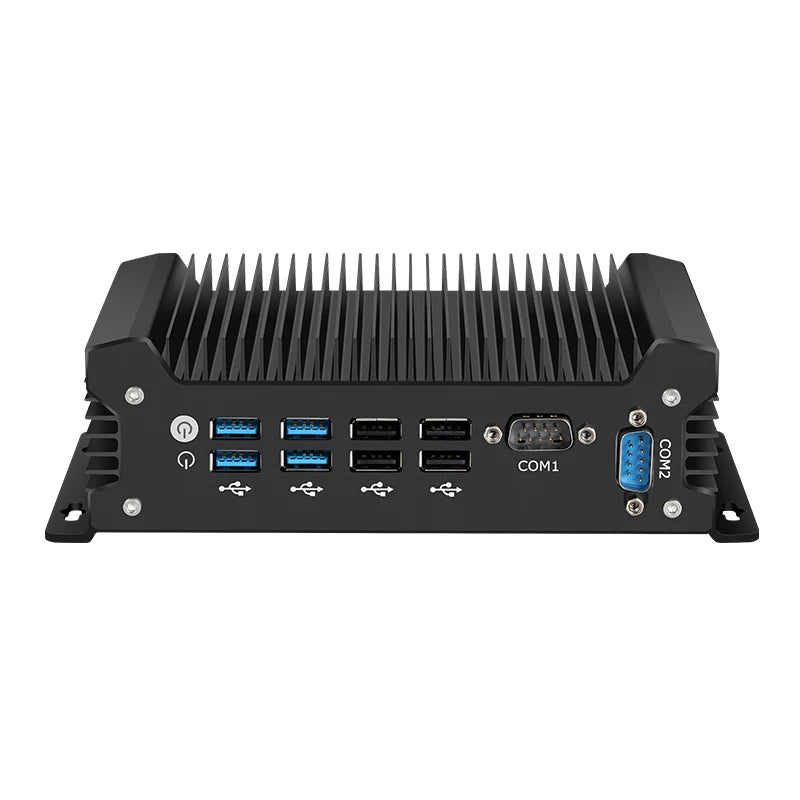

USB

4 x USB3.0  4 x USB2.0

COM

2 x DB9 RS232

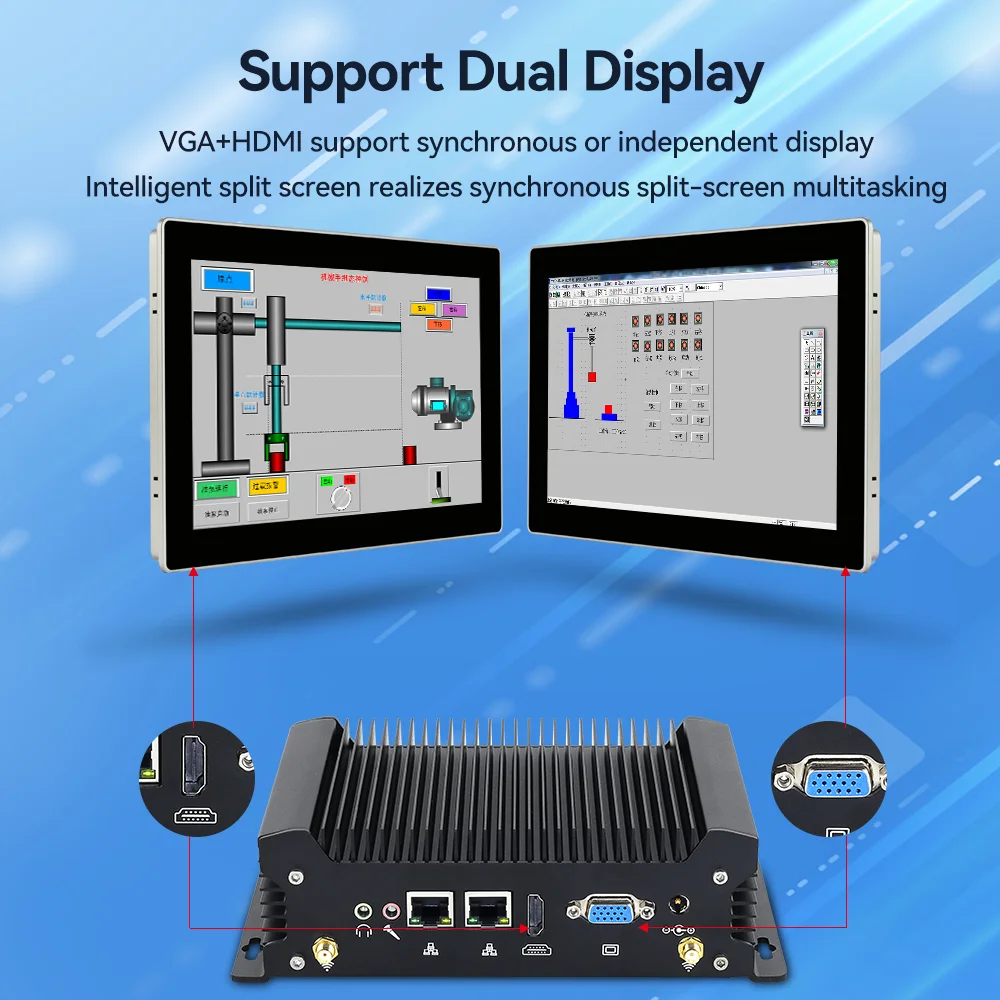

Display

1 x HDMI 1 x VGA

Audio

1x Earphone IN, 1x Microphone

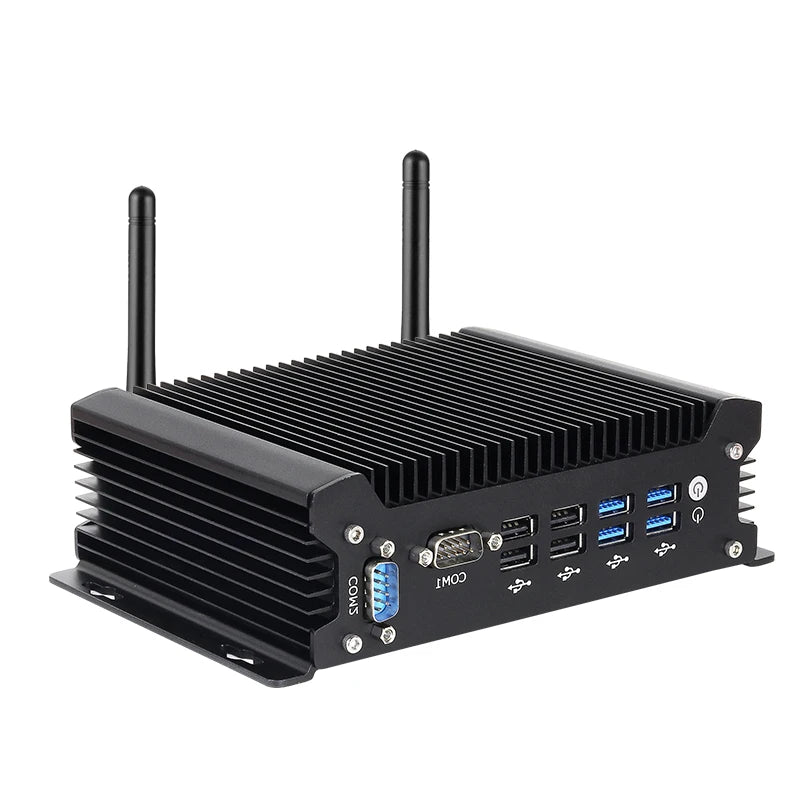

Wireless

1x Mini PCIe half-size for WiFi/BT/4G LTE

i5-4278U without SIM card slot, other CPUs with 1x SIM card slot on-board.

Mini PC without 4G LTE module and SIM card pre-installed, please contact us if you need pre-install 4G LTE module to mini PC.

OS Support

Windows 7/8/10/11, LINUX

Others

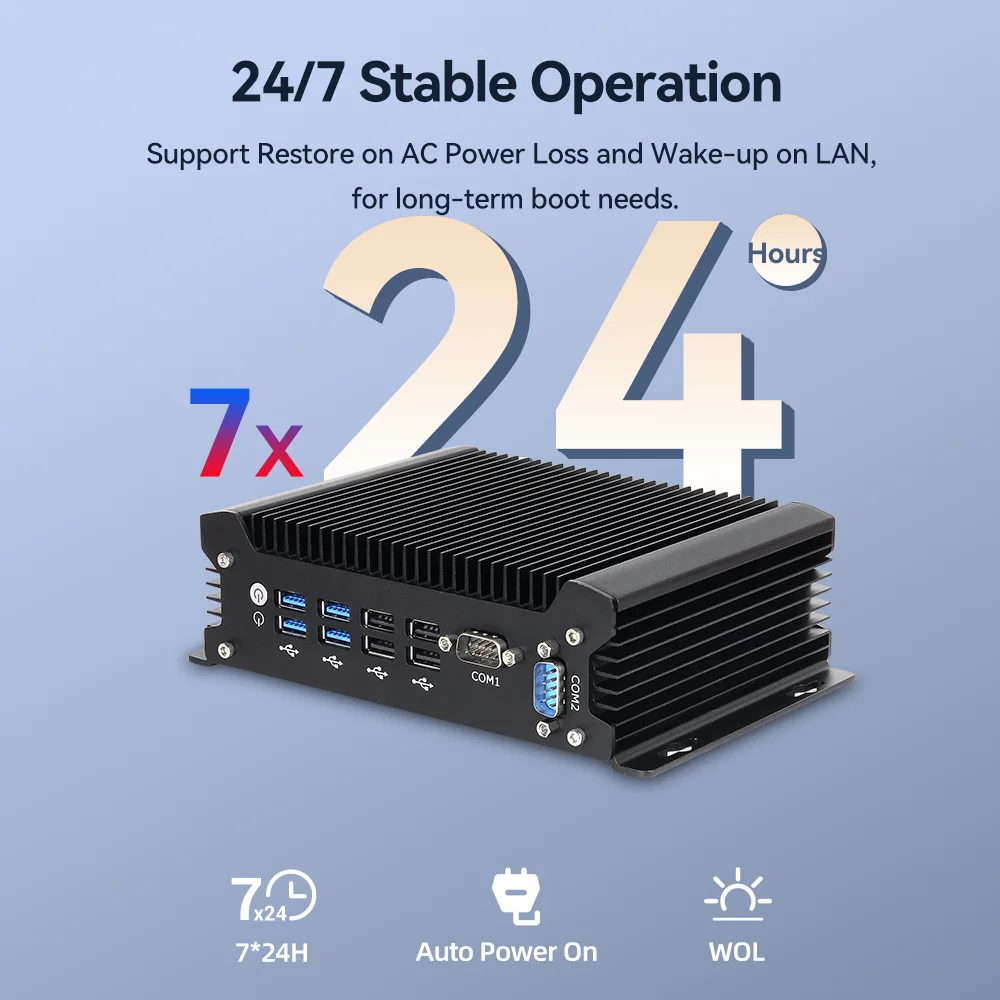

Support Wake on LAN, PXE, Watchdog, Auto power on after power loss

Working Voltage

DC12V-19V

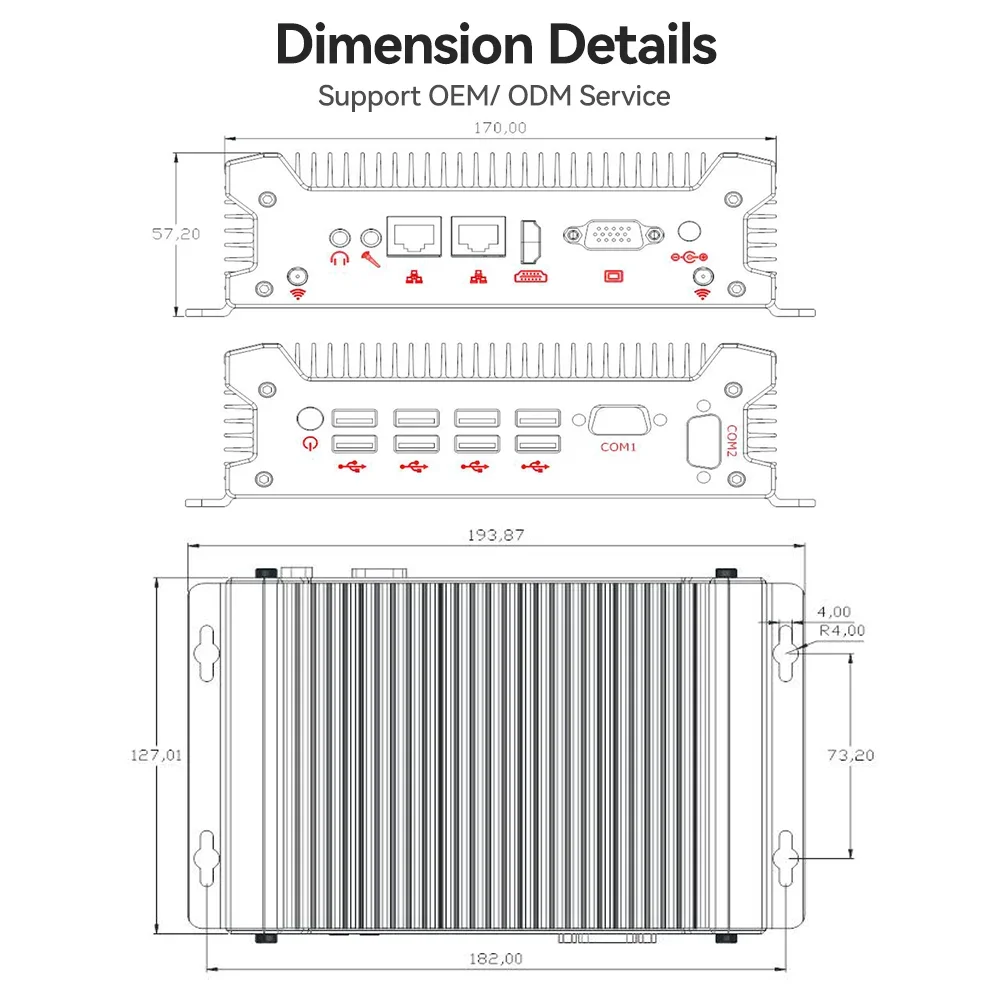

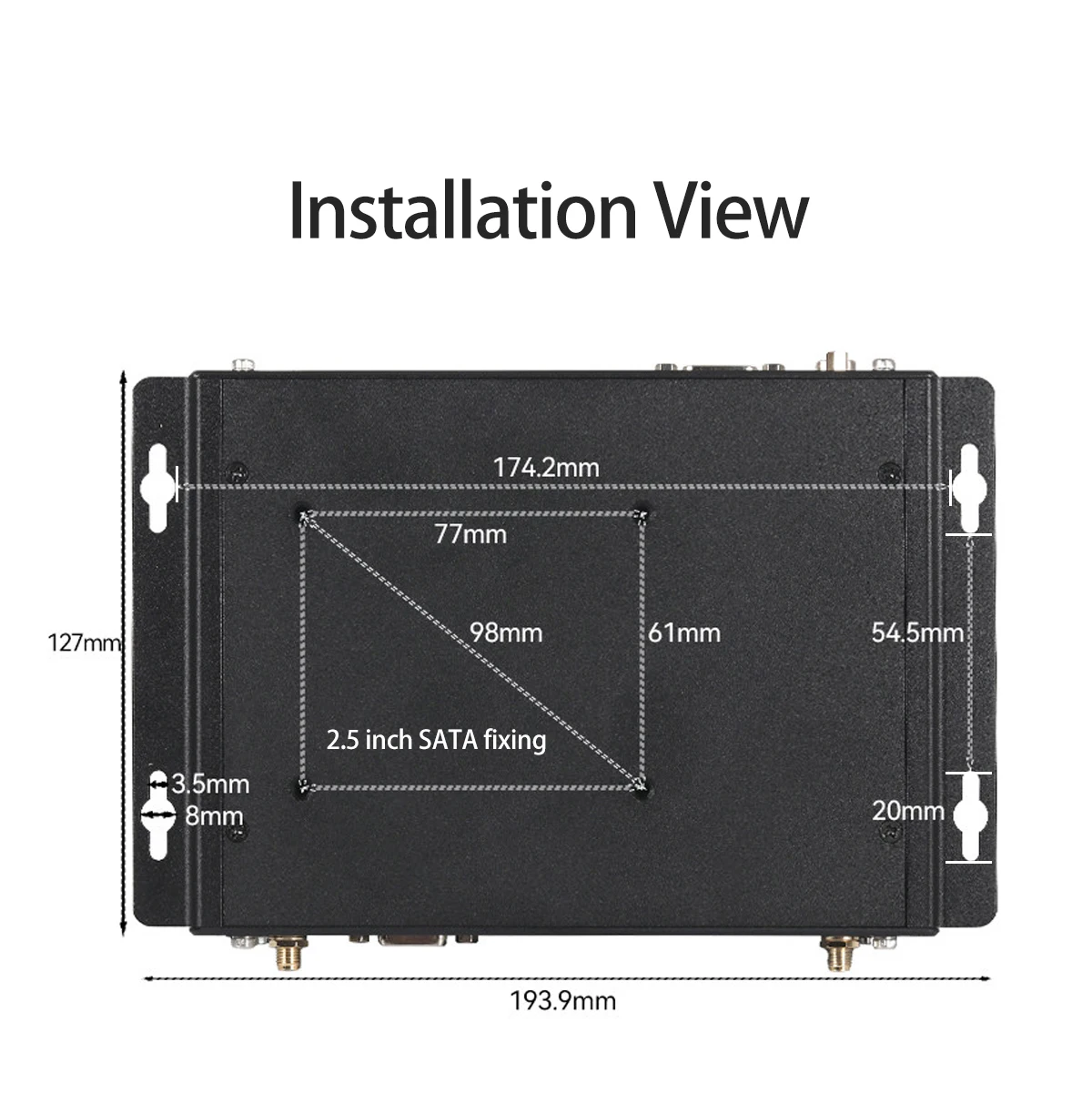

Dimension

193.9 x 127 x 57.2 mm

Netweight

1KG

Storage Temperature

-30℃ to +70℃

Working Temperature

-20℃ to +60℃

Relative Humidity

10%~90% @30℃, non-condensing

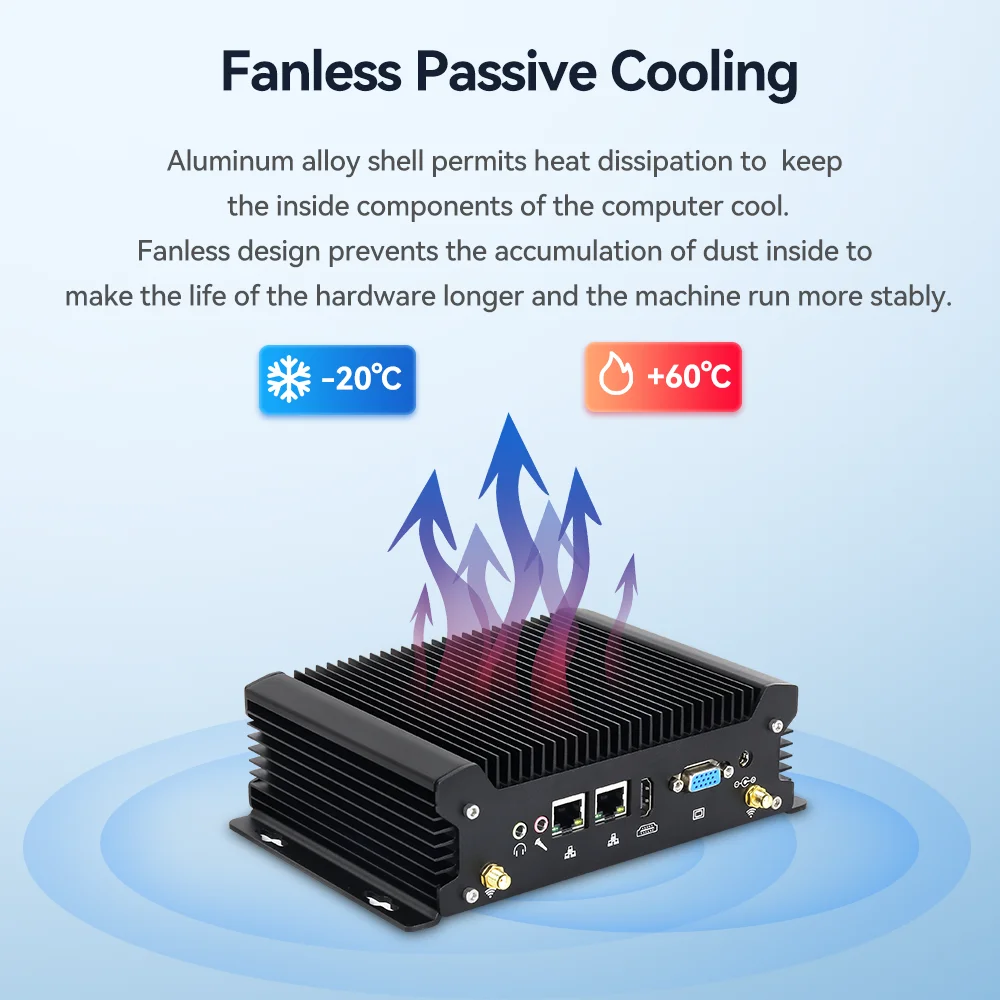

Cooling

Fanless passive cooling

Package

1x Mini PC 1x AC Adapter 1x Power Cord 1x User guide
