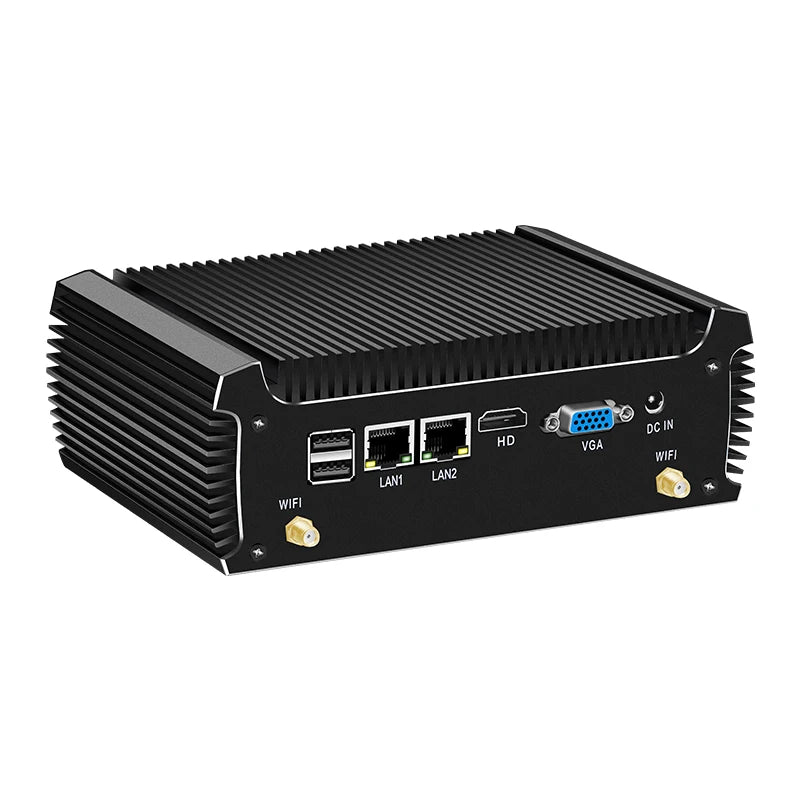

Fanless Industrial Mini PC Intel i3-8130U i5-8250U 2x DB9 RS232 RS485 2x LAN 6x USB Mini PCIe GPIO WiFi 4G LTE Win10/11 Linux
CHF 542.79
Taxes included.
Shipping Countries & Returns
Free express shipping within the EU in 3–5 days. Worldwide shipping in 3–7 days.
We process and ship all orders as quickly as possible and ensure that your items arrive the soonest.
Returns & Exchanges
Returns are accepted within 14 days of the delivery date. Please contact us to initiate a return if there is a product defect or damage.
Shipping countries
INTERNATIONAL - United States, Canada, Hong Kong SAR, Israel, Japan, South Korea, Malaysia, New Zealand, Singapore.
EUROPE - Austria, Belgium, Bulgaria, Croatia, Cyprus, Czechia, Denmark, Estonia, Finland, France, Greece, Hungary, Ireland, Italy, Latvia, Lithuania, Luxembourg, Malta, Netherlands, Poland, Portugal, Romania, Slovakia, Slovenia, Spain, Sweden, Germany, Switzerland, United Kingdom, Norway.
Best Value Mini PCs Online
Free Shipping Worldwide
24/7 Technical Support
Fanless Industrial Mini PC Intel i3-8130U i5-8250U 2x DB9 RS232 RS485 2x LAN 6x USB Mini PCIe GPIO WiFi 4G LTE Win10/11 Linux
SPECIFICATIONS
AUDIO: ALC891, support Line out, MIC IN
Brand Name: XCY
COM Ports: 2x DB9 RS232, can be support RS485
Certification: CE,RoHS
Display: 1x HDMI, 1x VGA
Ethernet: 2x RJ45 Realtek 8111H, support PXE, wake up on LAN
Expansion: 1x Mini PCIe slot for WiFi or 4G LTE
GPIO Expansion: Yes, support
Graphics Card Type: Integrated Card
Hard Drive Capacity: 256GB
Hard Drives Support: 1x M.2 NVME/SATA SSD, 1x SATA 2.5 inch
High-concerned chemical: None
Memory Capacity: ≥ 4GB
Memory Type: 1x SODIMM DDR4
Model Number: X46-2C485
OS Support: Windows 11, Windows 10, Linux
Origin: Mainland China
PC Case Size: 182*127*58mm
Power Supply: DC12V -5A
Processor Brand: Intel
Processor Model: i3-7100U, i3-8130U, i5-7200U, i5-8250U, i5-6300U
TMP Expansion: Yes, Support
Type: Mini Desktop,Mini PC
USB Ports: 4x USB3.0, 2x USB2.0
Use: Commercial
Industrial PC without 4G LTE module installed, buyer need add 4G LTE module, please contact us
Processors |
Intel®Core i5-6300U |
Intel®Core i3-7100U |
Intel®Core i5-7200U |
Intel®Core i5-8250 |
2 cores, 2.4GHz (Up to 3.0GHz) |
2 cores, 2.4GHz |
2 cores,2.5GHz (Up to 3.1GHz) |
4 cores, 1.6GHz（upto 3.4Ghz） |
|
Memory |
1* SO-DIMM DDR4, max support to 16GB |
|||
Graphics |
Intel® HD Graphics 540/610/620/650（depends on CPU） |
|||
Display |
1* VGA，1*HDMI |
|||
Ethernet |
2* Realtek RTL8111H Gigabit Ethernet, support Wake up on LAN/PXE |
|||
Hard Drives |
1* 7pin SATA3.0 conenctor,max 6Gbps |
|||
1* M.2 Key-M 2280 NVMe/SATA SSD | ||||
Audio |
ALC897 7.1，support MIC/Line-out，Amplifier (2 ohms 5W dual channel) |
|||
Expansion |
1* Mini-PCIe for WiFi/4G LTE |
|||

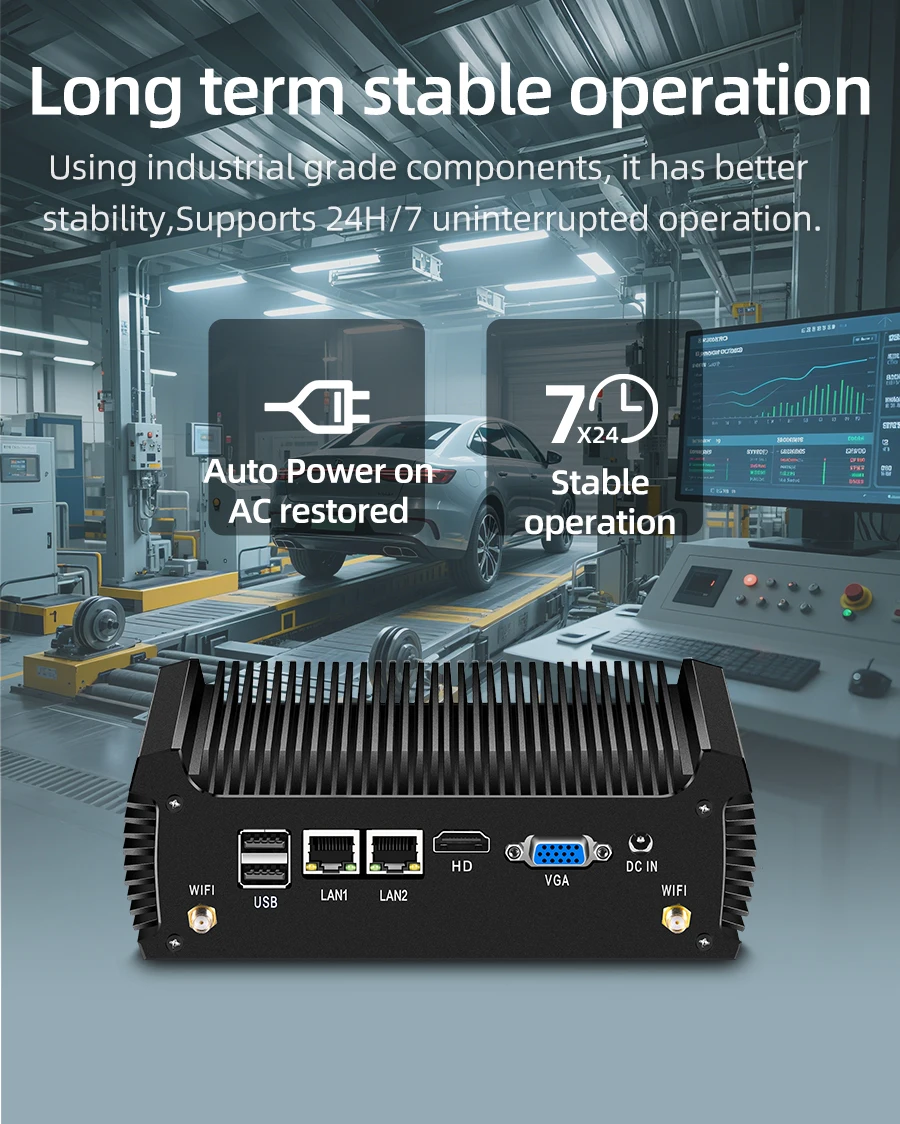

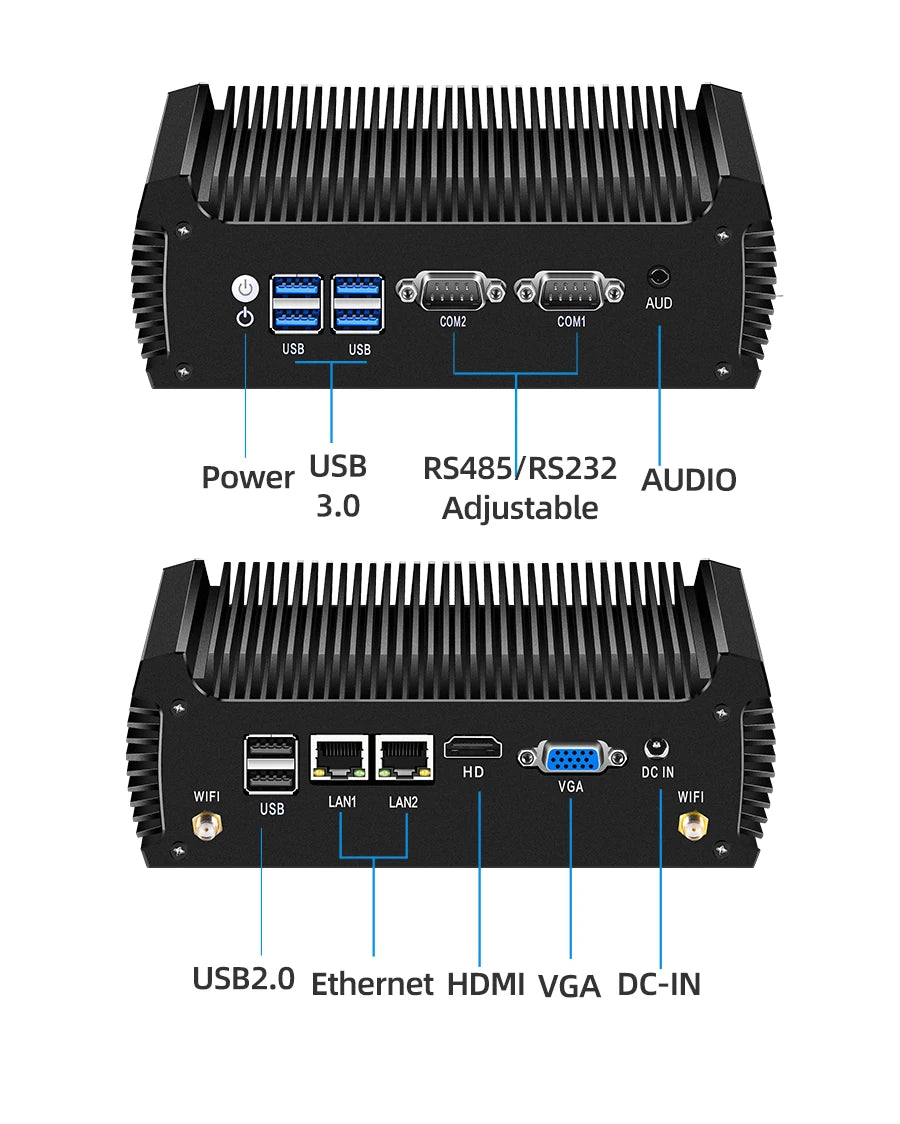

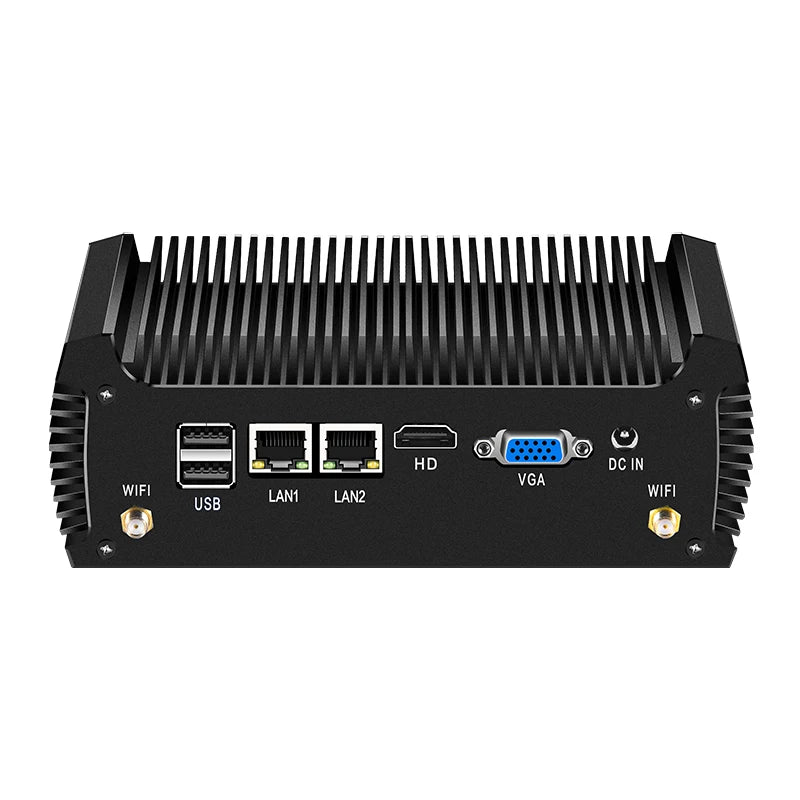

Front I/O |
1* HDMI |
|||
1* VGA | ||||
2* USB 2.0 | ||||
2* RJ-45 | ||||
1* 12V DC | ||||

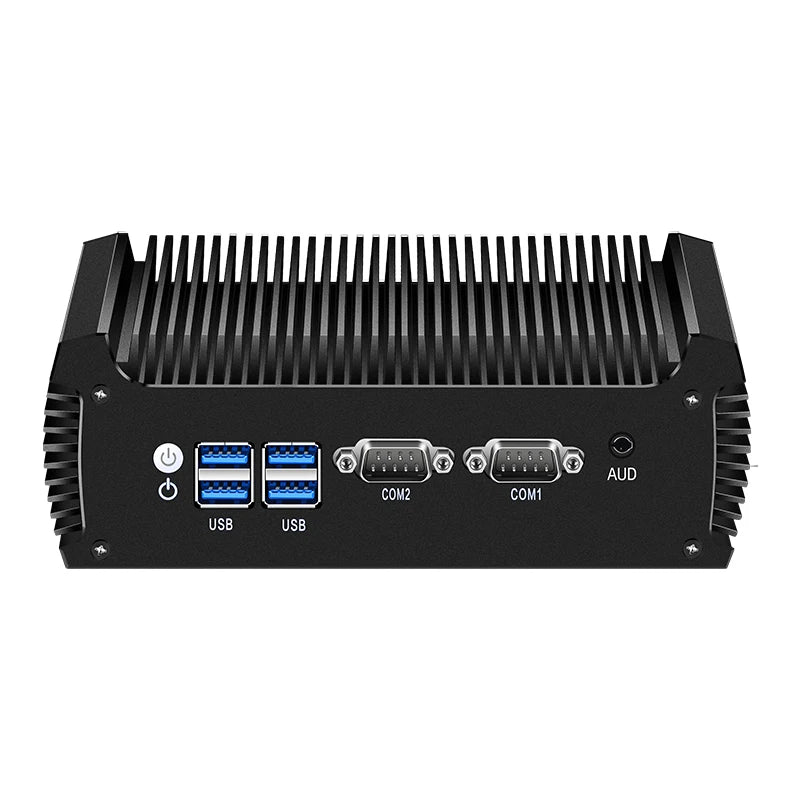

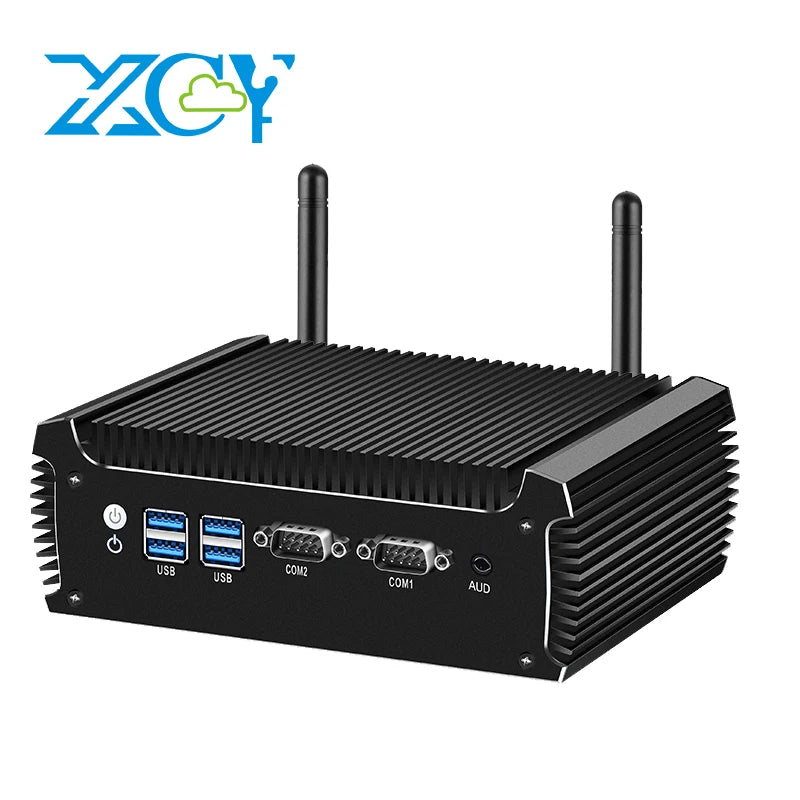

Rear I/O |
1* 3.5mm audio jack support Line-OU,MIC in |
|||
2* RS232（DB9）support RS485 | ||||
1* HDD LED | ||||
4* USB3.0 | ||||
1* Power Key | ||||
1* Clear COMS key | ||||

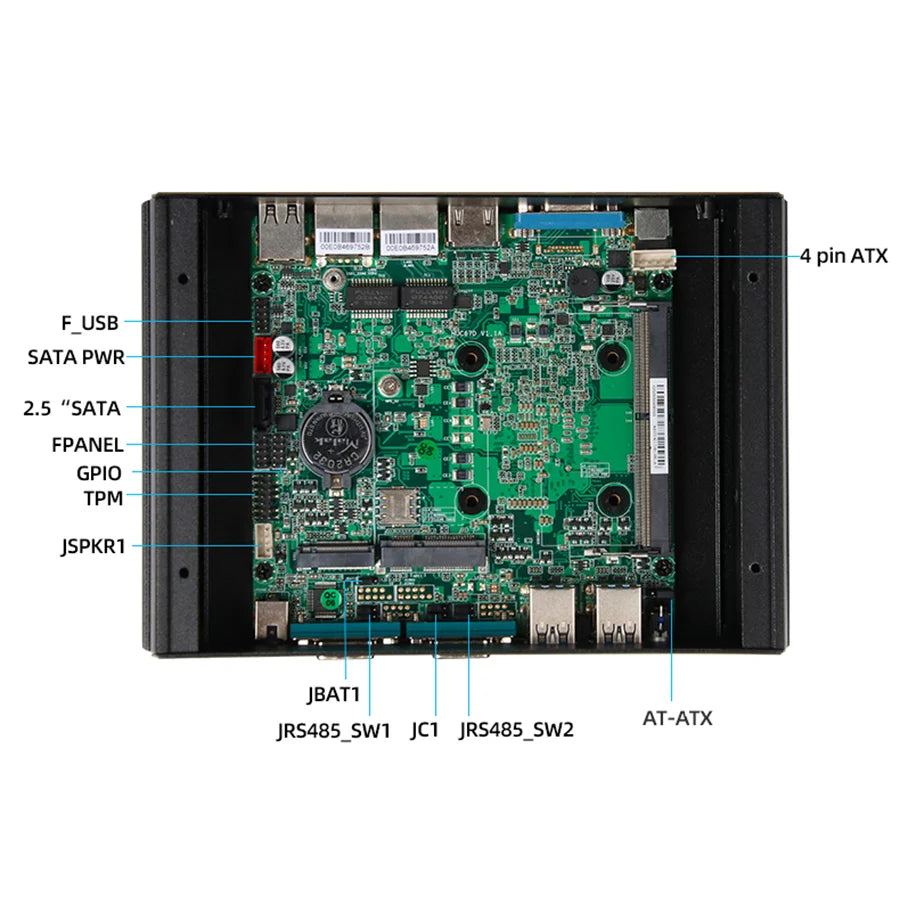

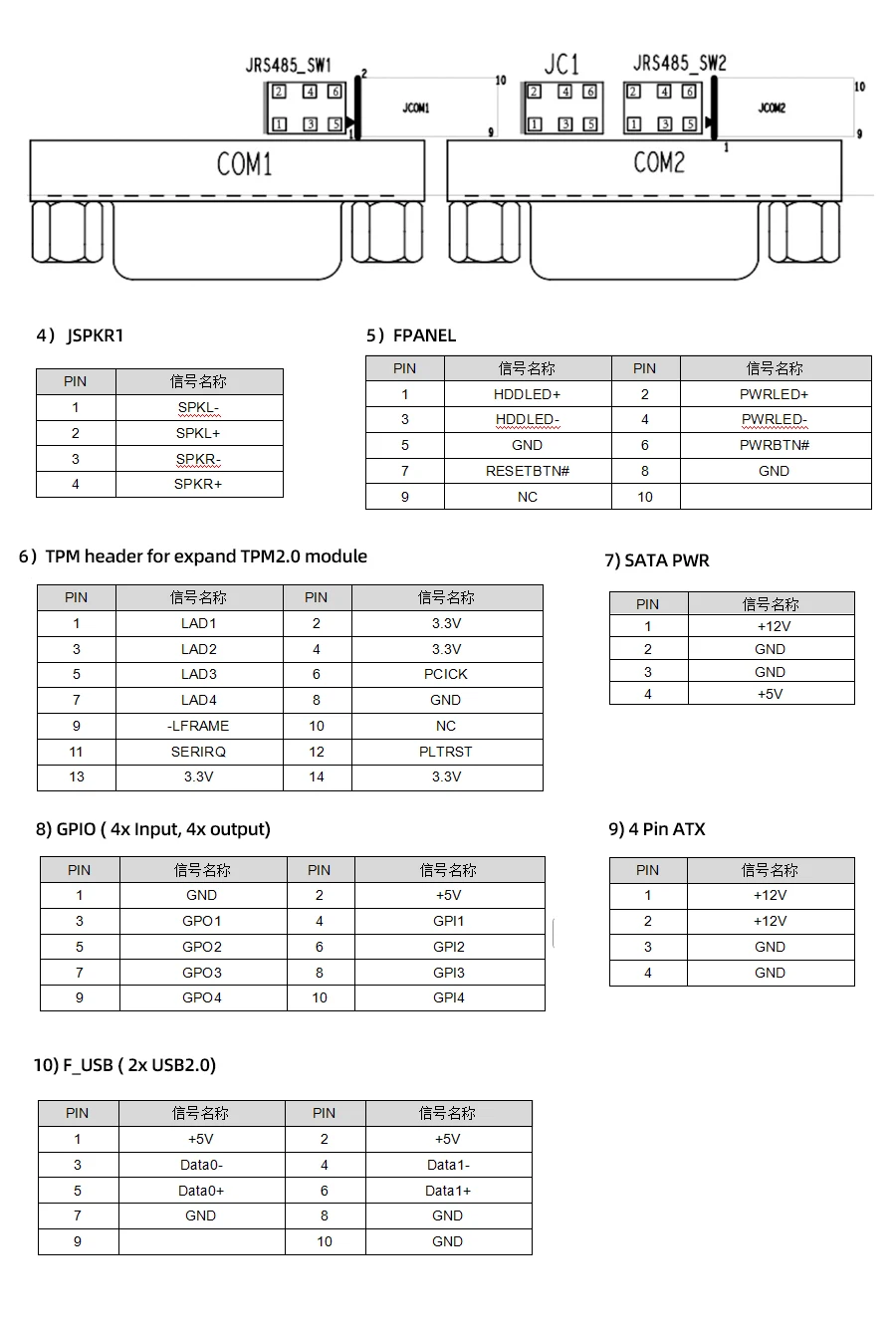

Internal I/O |
1 *SIM card slot |
|||
1* USB2.0 header,can expand 2x USB2.0 | ||||
1* Speaker header 1*4pin | ||||
1* GPIO header 2*5Pin | ||||
1* SATA Power header 1*4Pin | ||||
1* 4pin ATX | ||||
1* FPANEL header 2*5Pin | ||||
TPM |
1* TPM2.0 header 2*7Pin |
|||
Operating Temp |
-10℃～60℃ |
|||
Storage Temp |
-20℃～70℃ |
|||
Relative humidity |
5%-95% Non-condesing |
|||

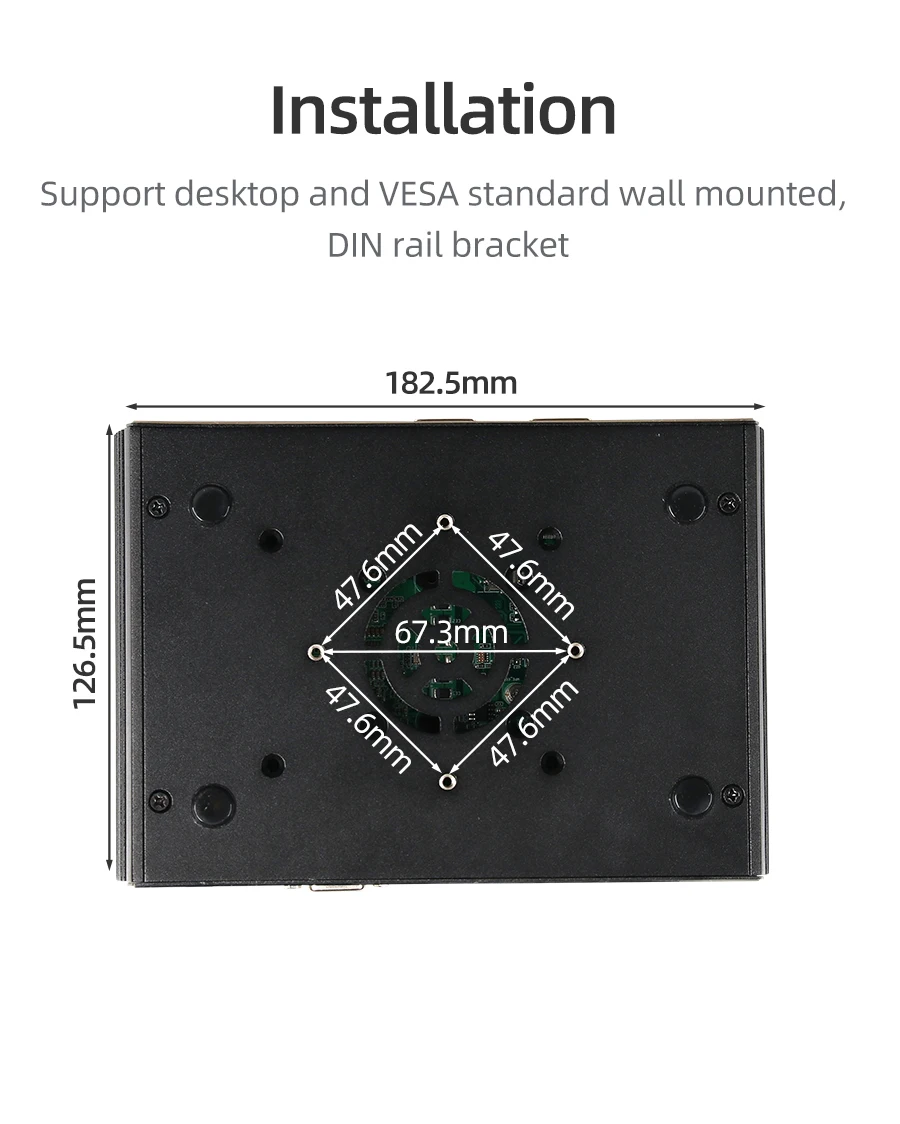

PC Case Size |
182*127*58mm |
|||
Power SUPPLY |
DC12V 5A |
|||
