CPU Option

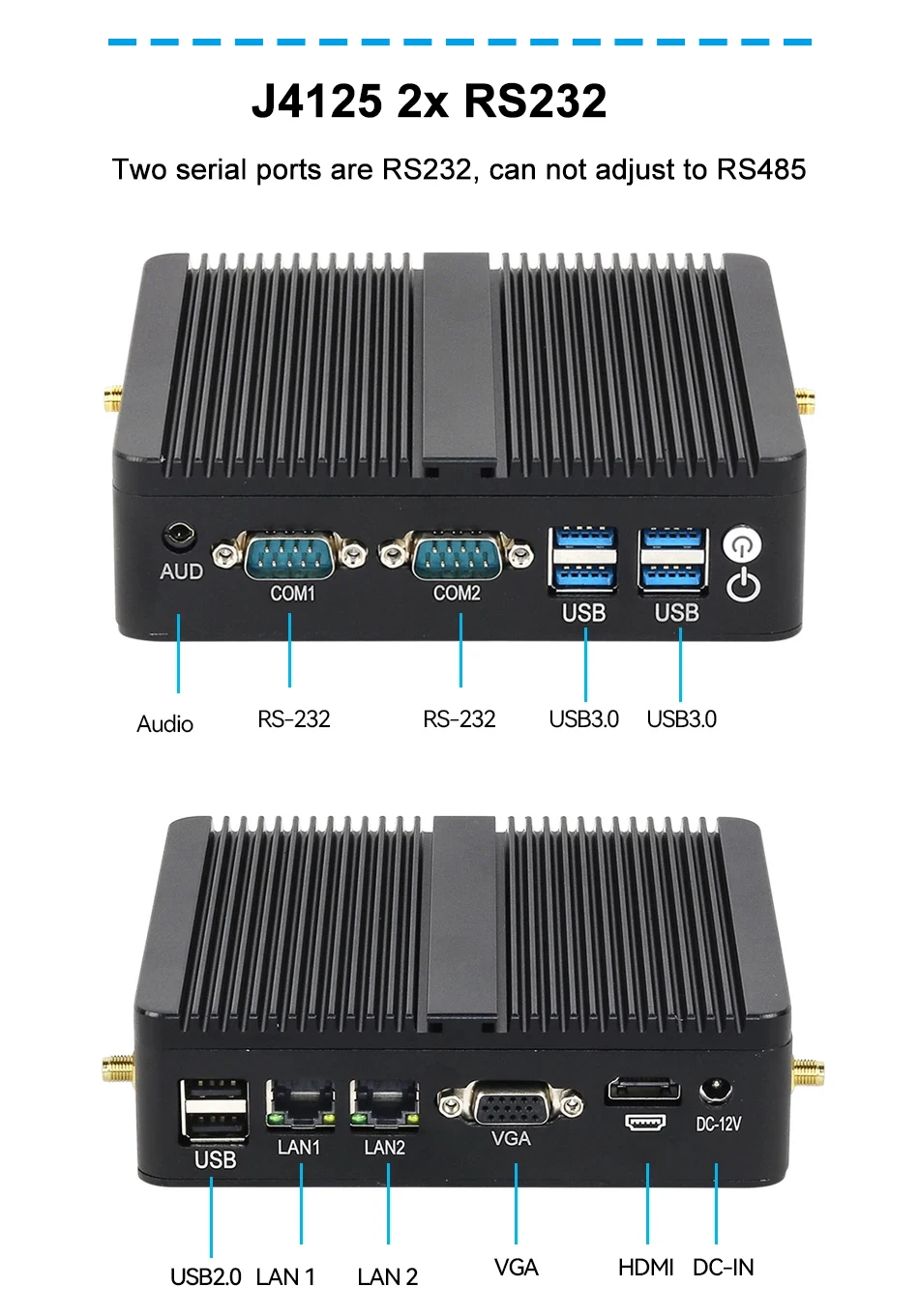

Intel Celeron J4125, 4 cores 4 threads, base frequency 2.00GHz, up to 2.70GHz

Intel Celeron J6412, 4 cores 4 threads, base frequency 2.00GHz, up to 2.60GHz

Intel Celeron J1900, 4 cores 4 threads, base frequency 2.00GHz, up to 2.41GHz

intel Celeron N2840, 2 cores 2 threads, base frequency 2.16GHz, up to 2.58GHz

intel Pentium J2900, 4 cores 4 threads, base frequency 2.41GHz, up to 2.66GHz

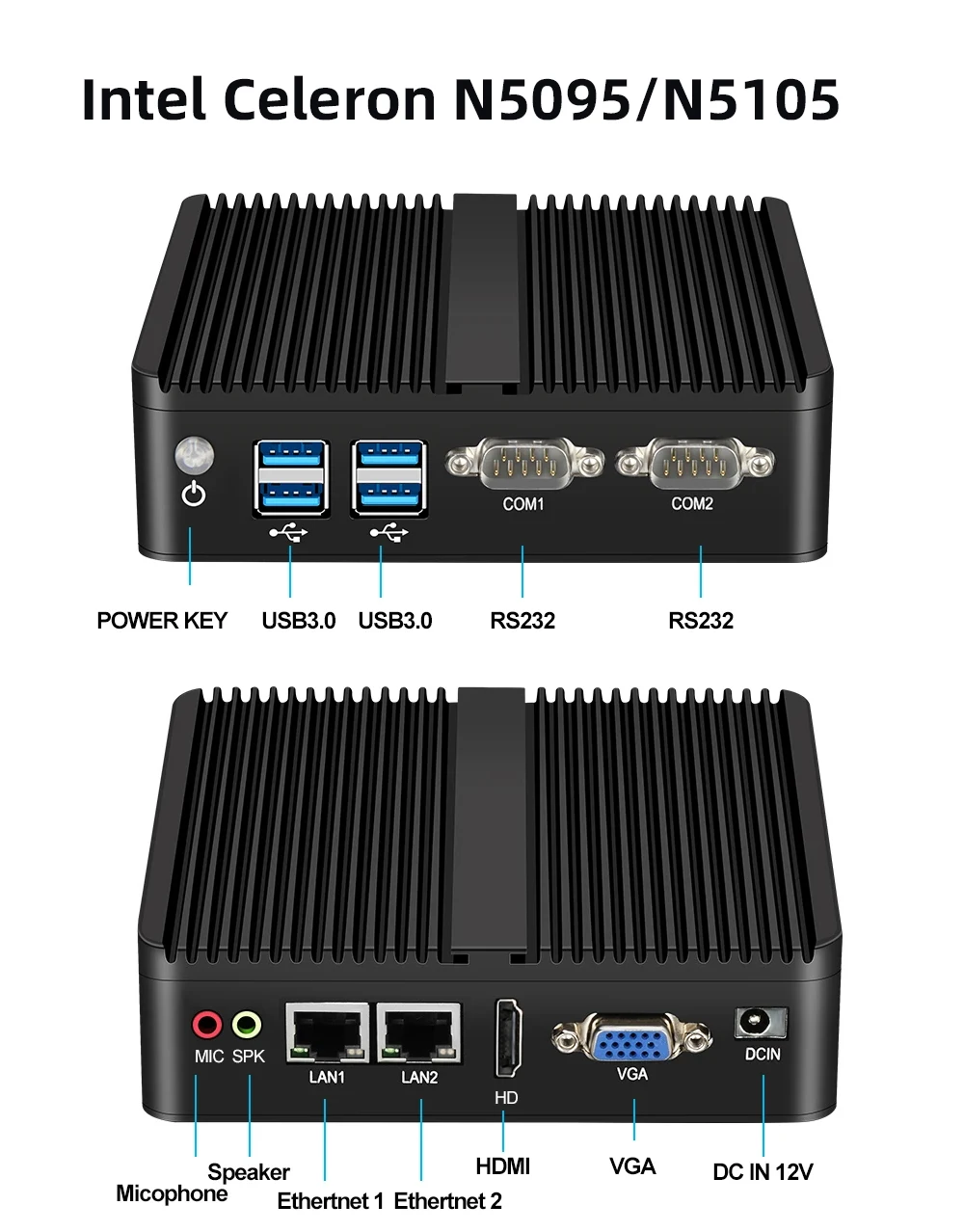

intel Celeron N5105, 4 cores 4 threads, base frequency 2.0GHz, up to 2.90GHz

Intel Pentium 3805U, 2 cores 2 threads, base frequency 1.90GHz

intel Core i3-5005U, 2 cores 4 threads, base frequency 2.0GHz

Memory

J6412/J4125: 1x DDR4 SO-DIMM,

other CPUs: 1x DDR3L SODIMM
J6412 max support 16GB RAM, other CPUs max support 8GB RAM

Storage

J4125/J2900/J1900/N2840/3805U support 1x mSATA SSD, 1x SATA 2.5inch HDD ( Pre-installed mSATA type SSD )

J6412 support 1x M.2 NVMe/SATA SSD 2280, 1x SATA 2.5 inch HDD ( Pre-install M.2 SATA SSD)

N5105 support 1x M.2 NVMe SSD, 1x SATA 2.5 inch ( pre-install N.2 NVMe SSD)

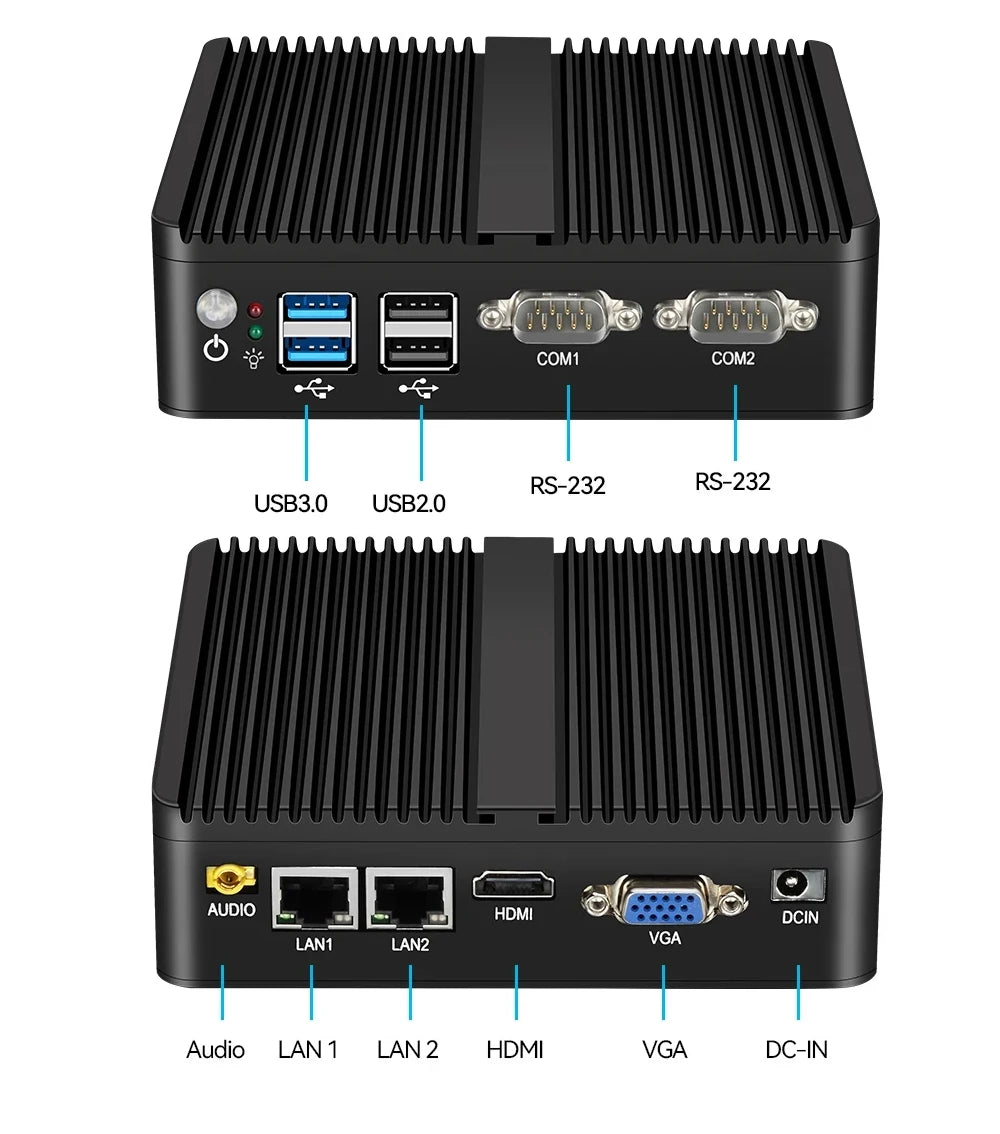

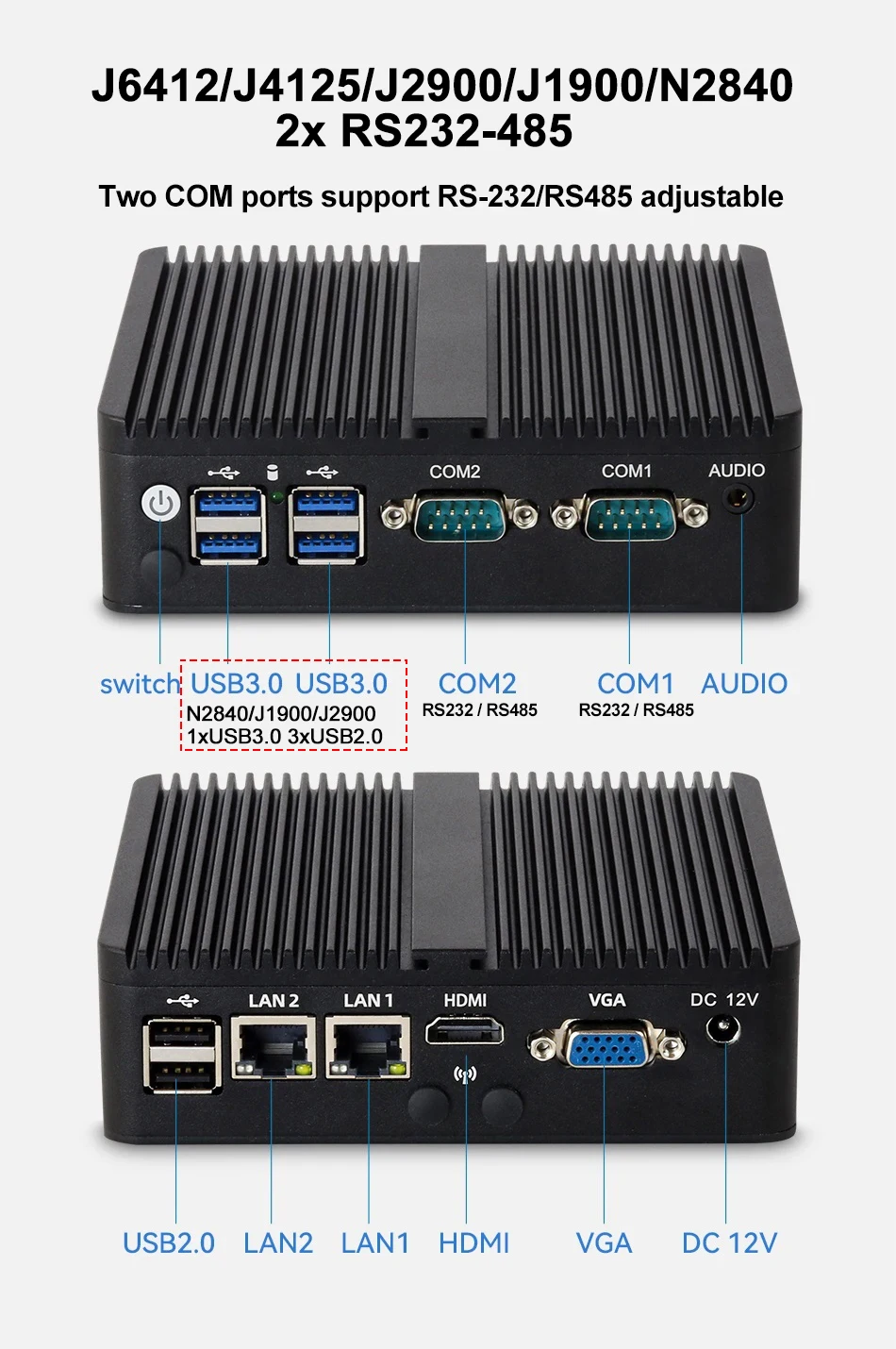

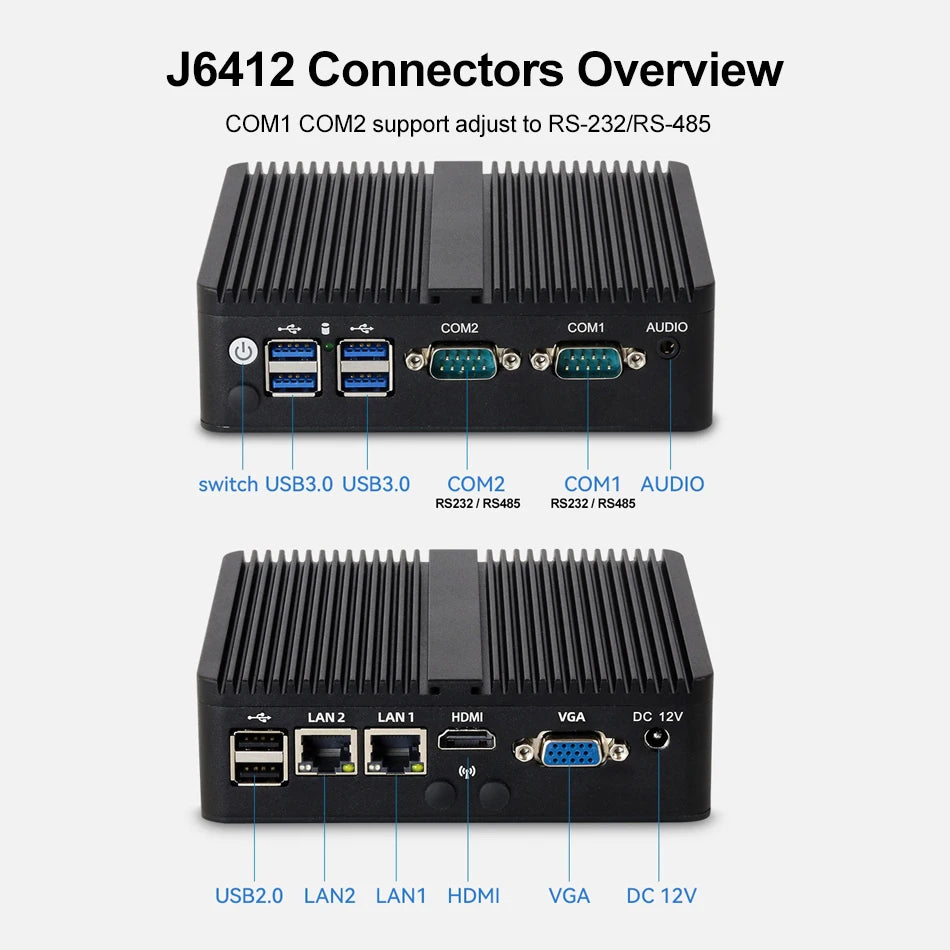

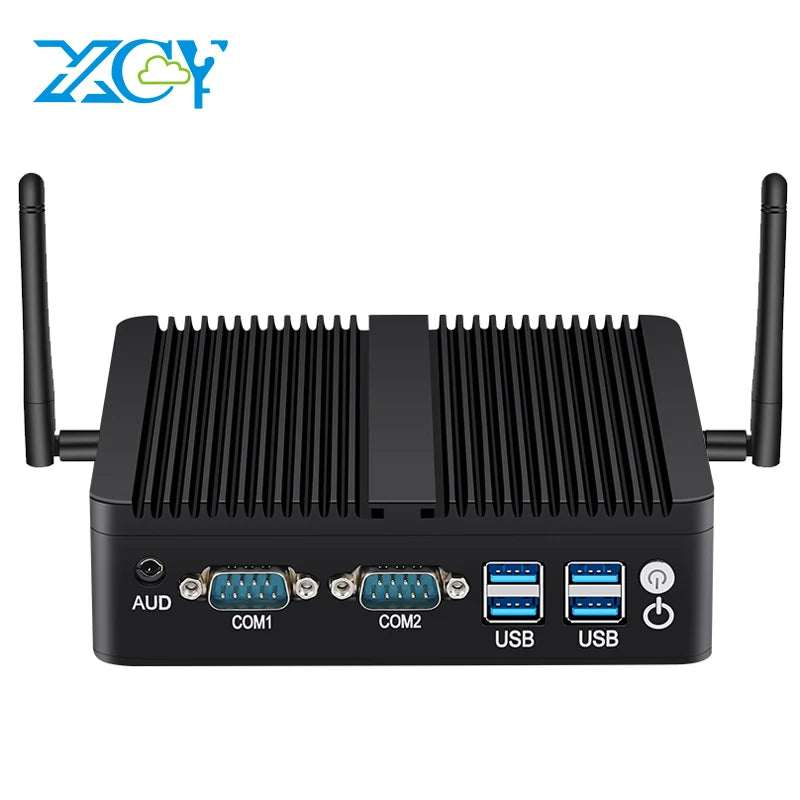

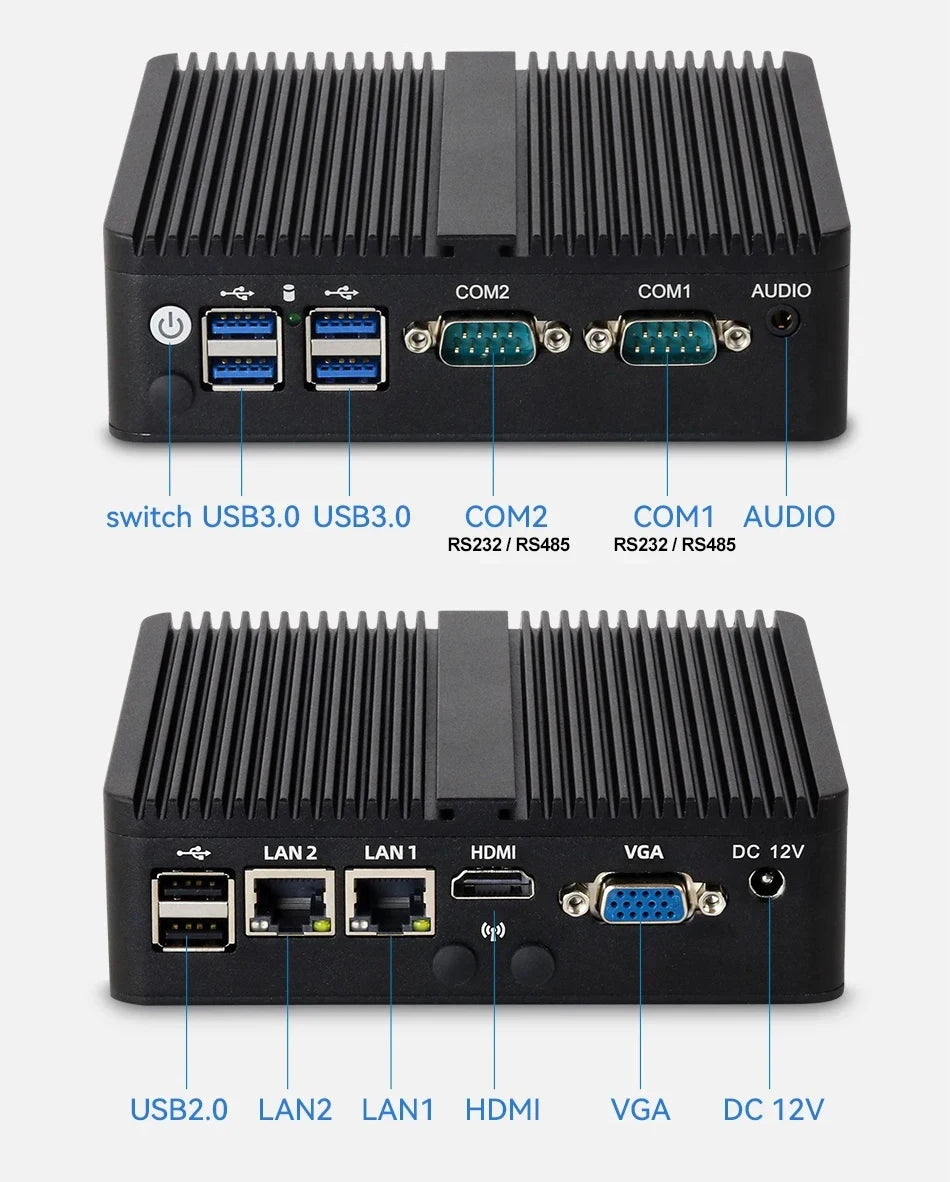

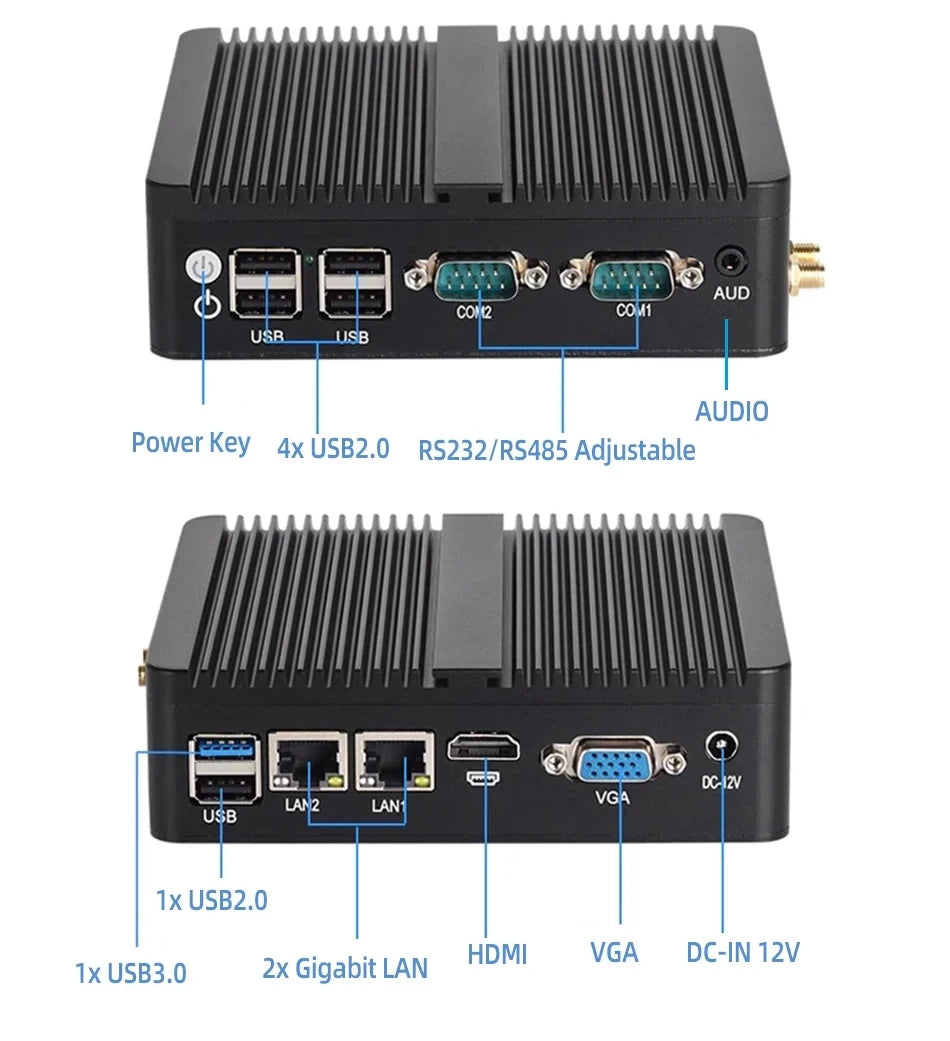

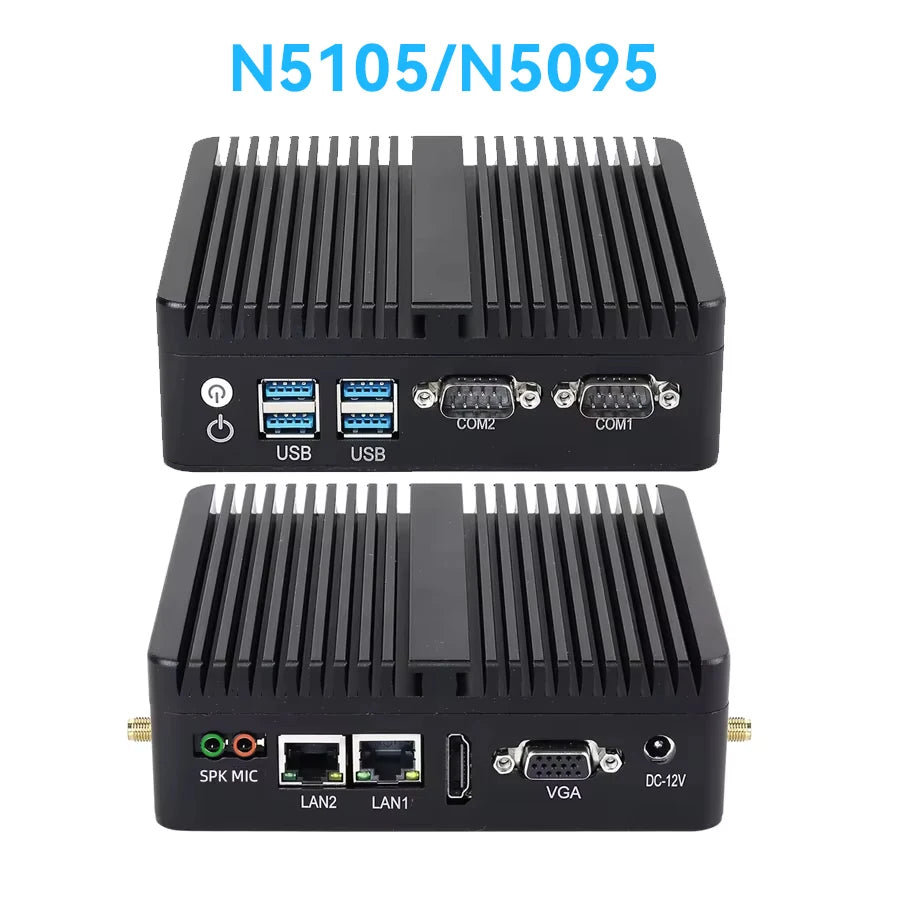

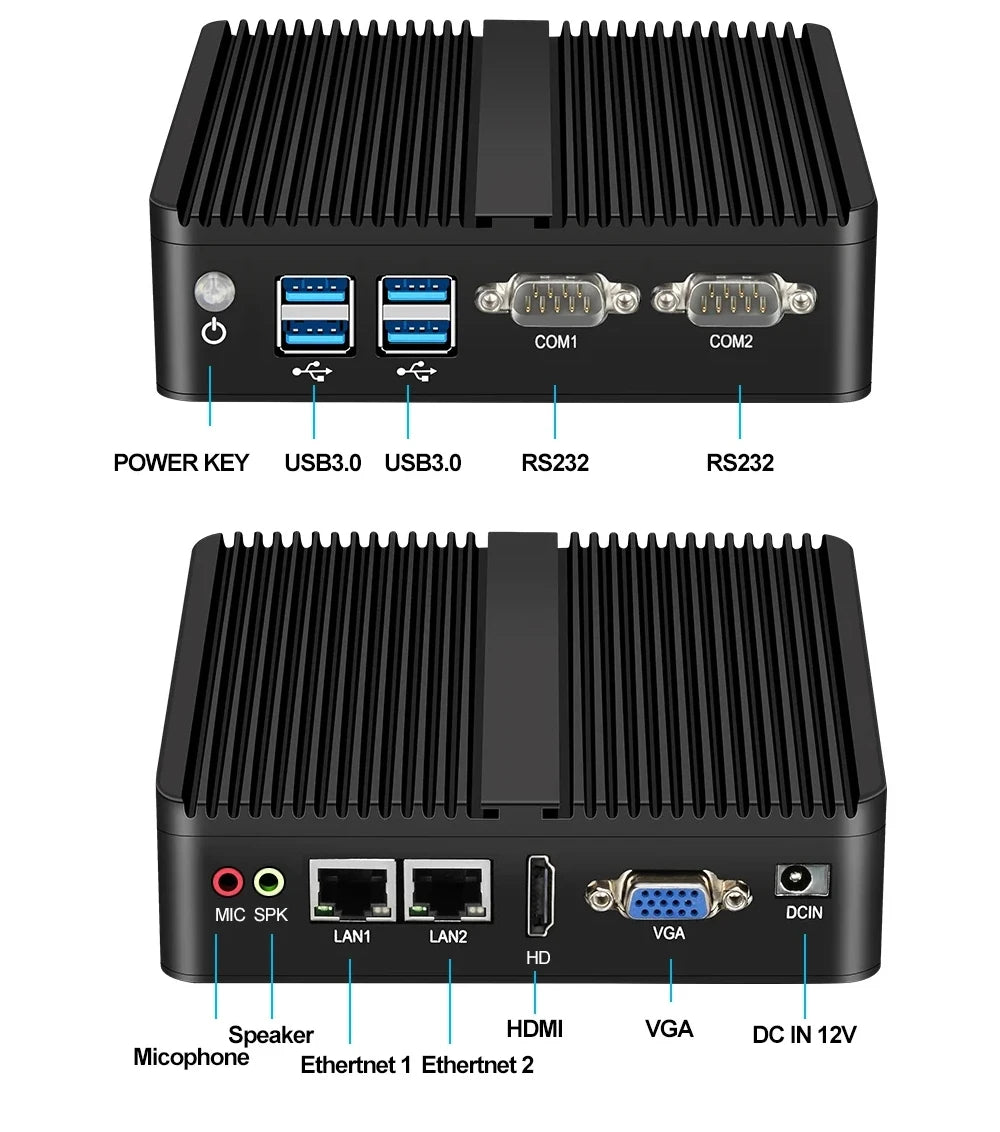

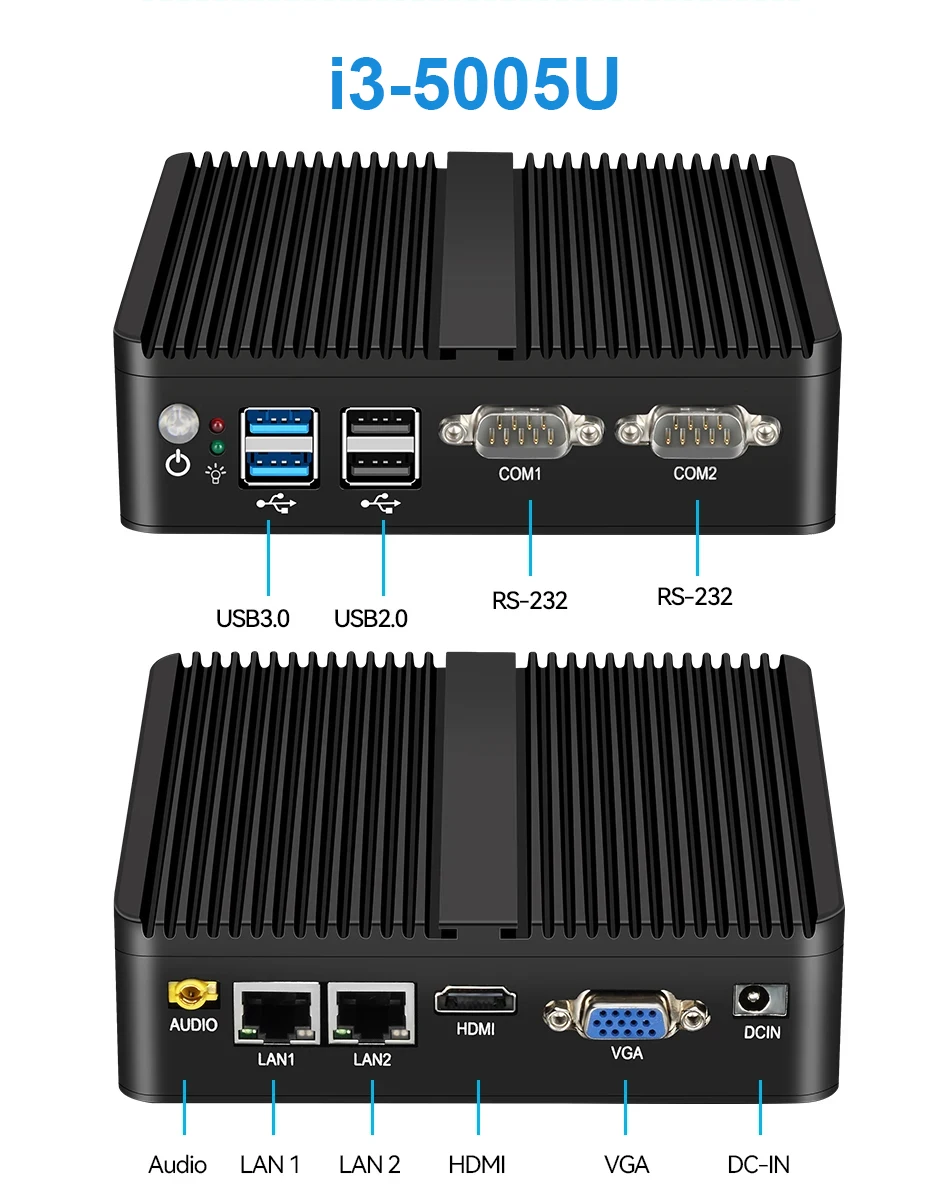

I/O Interface-Front

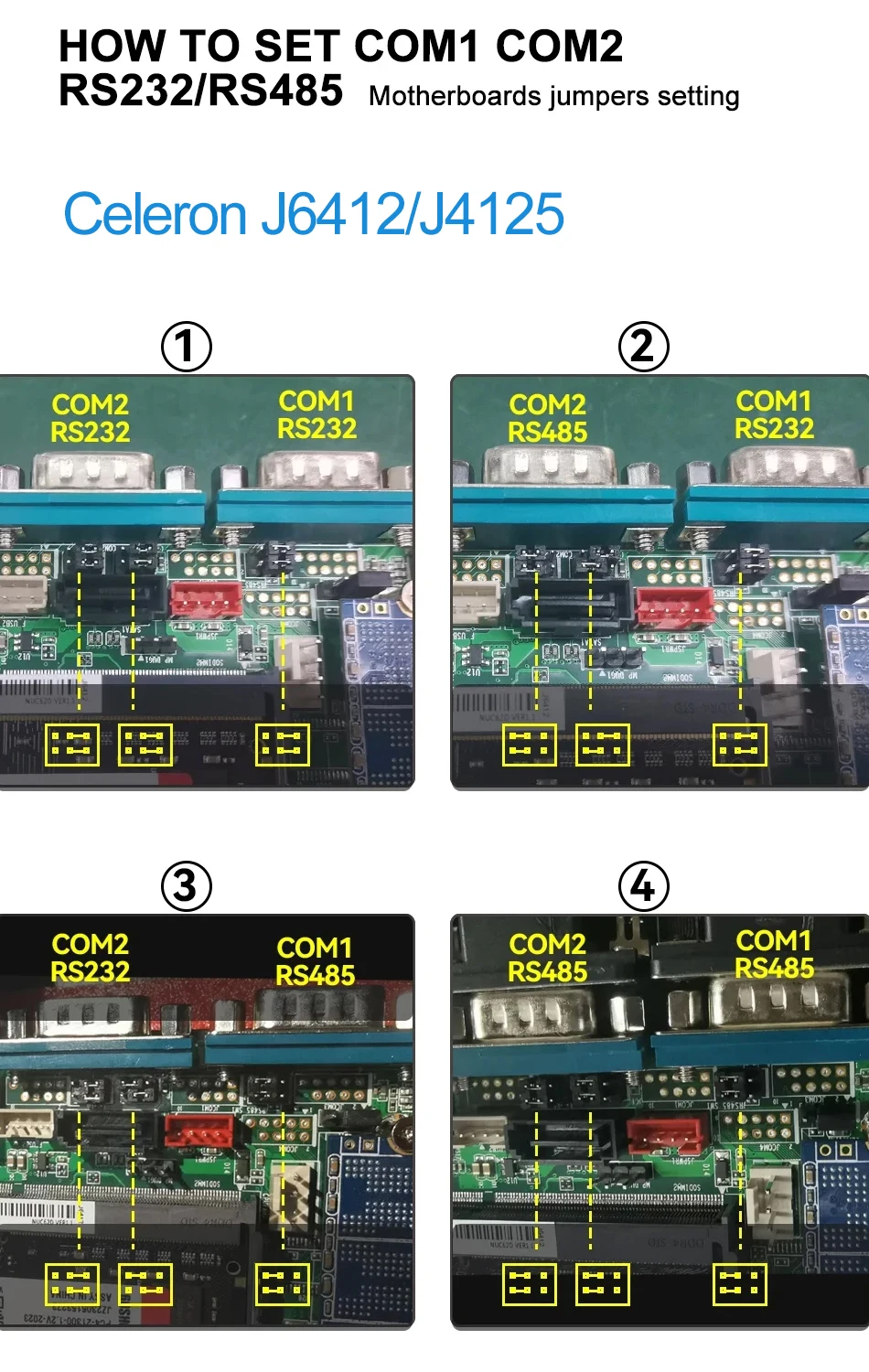

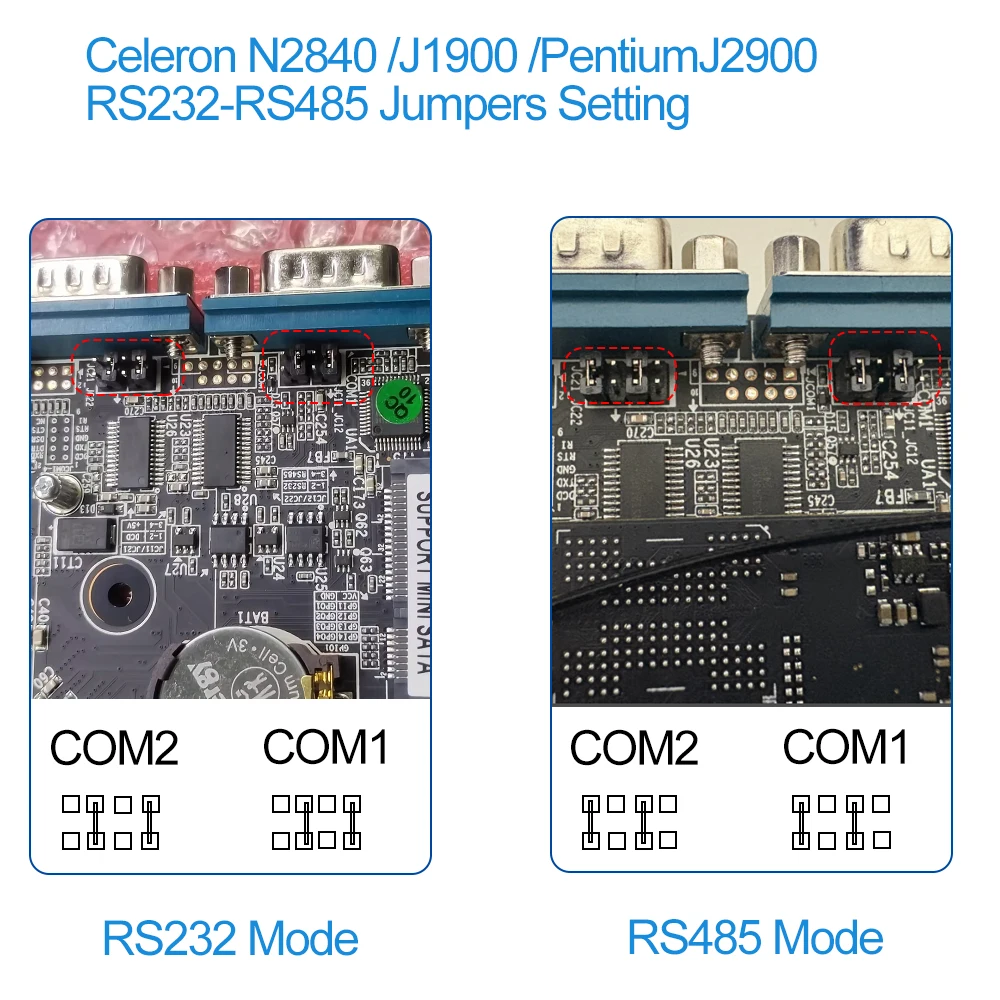

2x COM
4x USB 3.0 (N2840 1x USB3.0, 3x USB2.0)
2x USB 2.0
1x Power button

I/O Interface-Rear

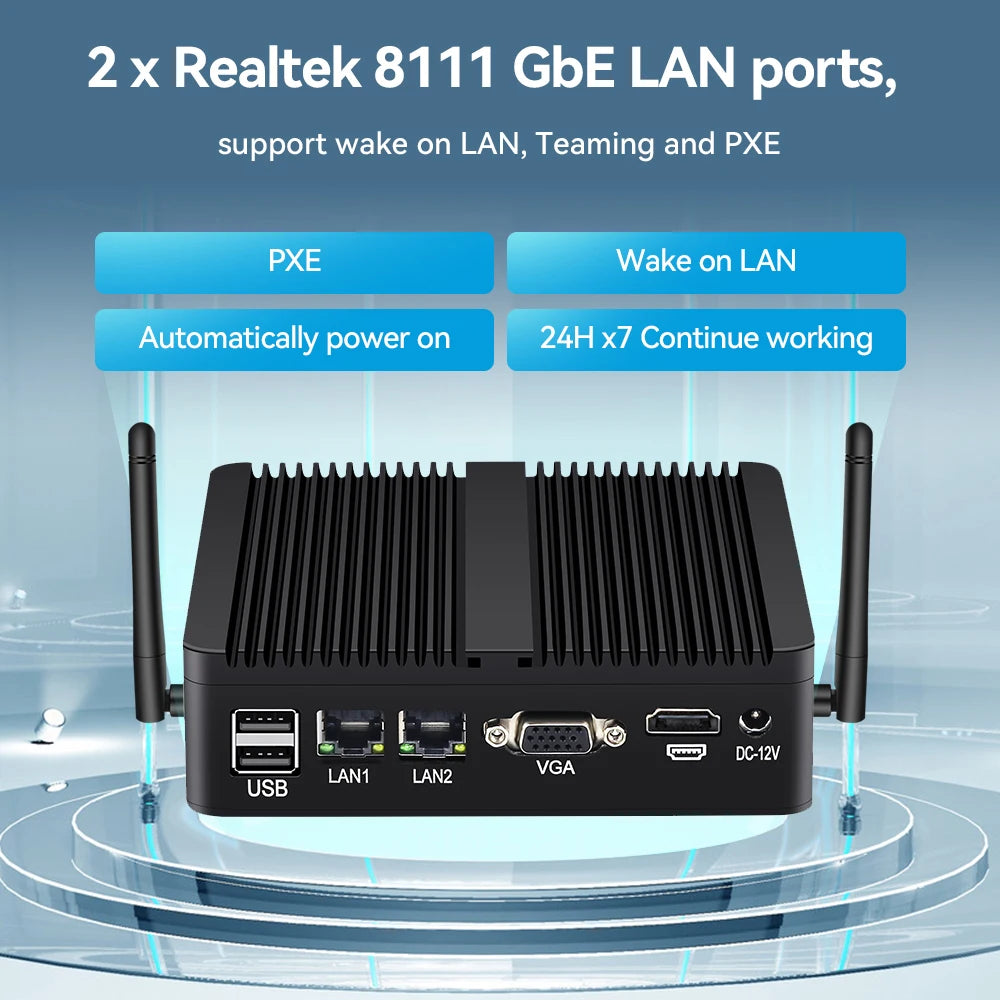

2x Realtek 8111H GbE LAN ports, support WOL, teaming and PXE
1x HDMI
1x VGA
1x DC-IN 12V
1x Audio combo jack

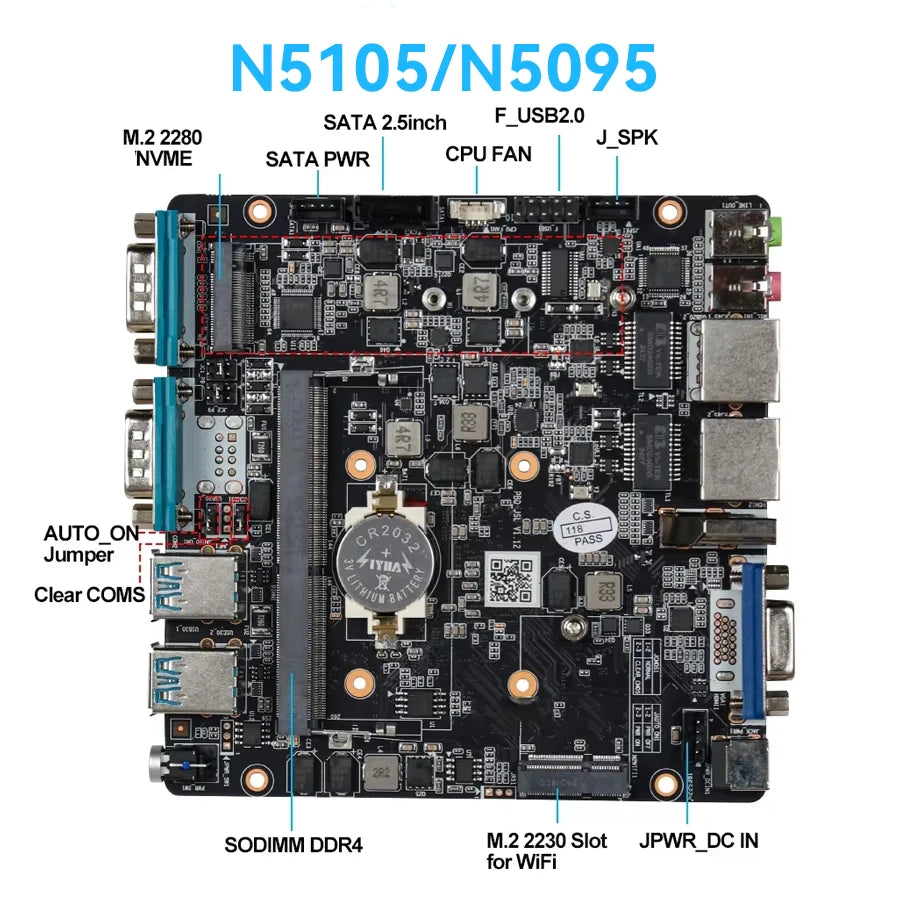

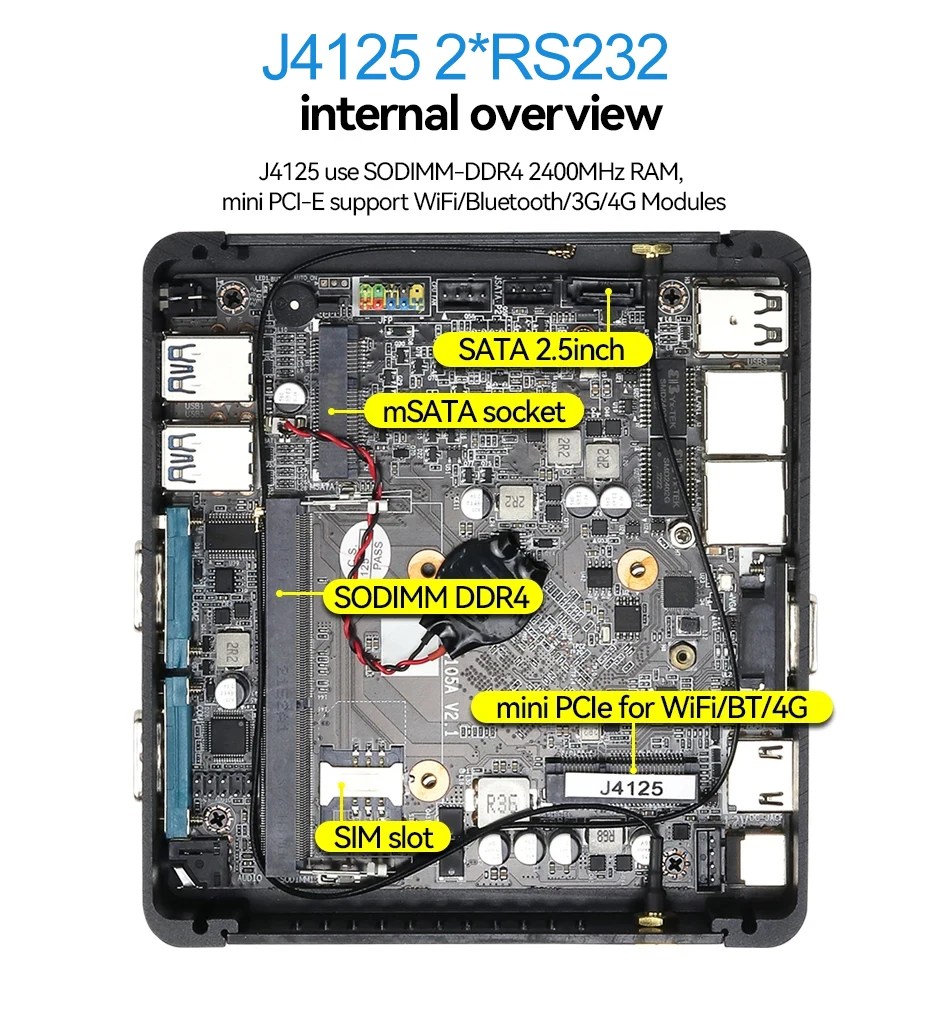

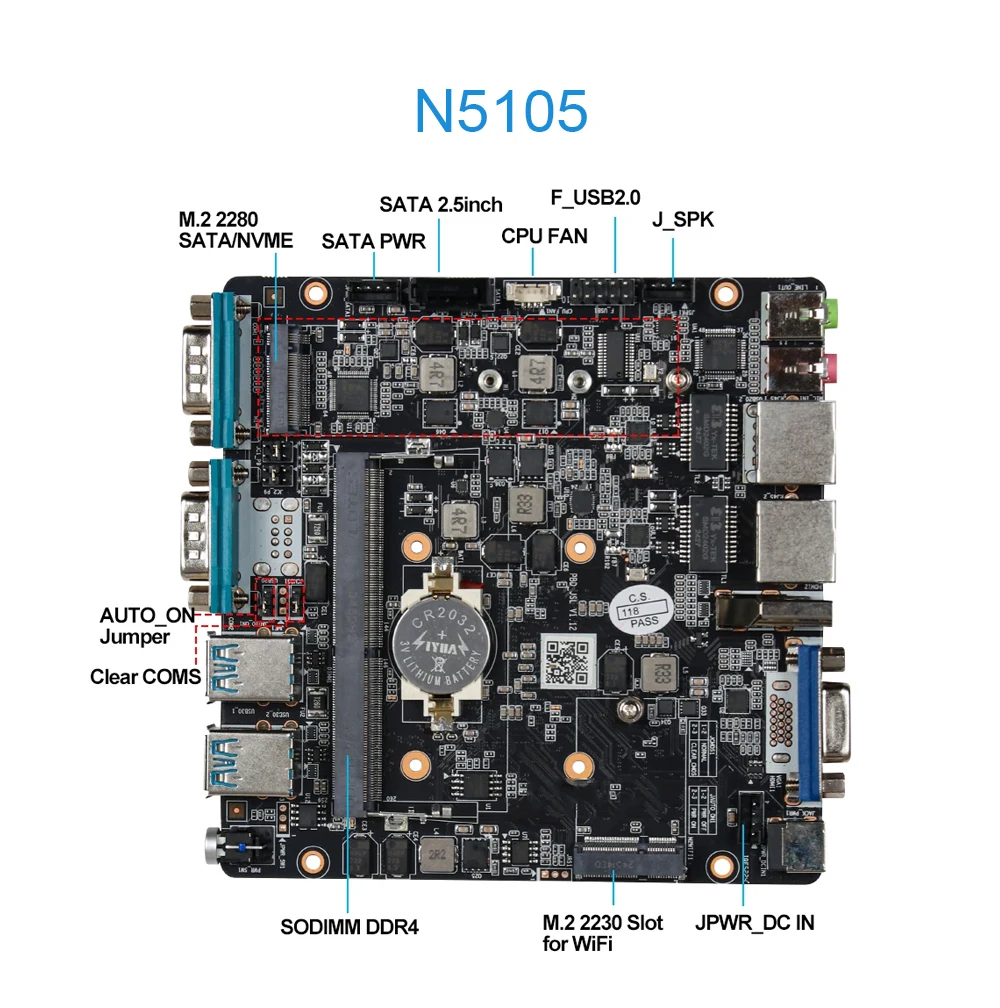

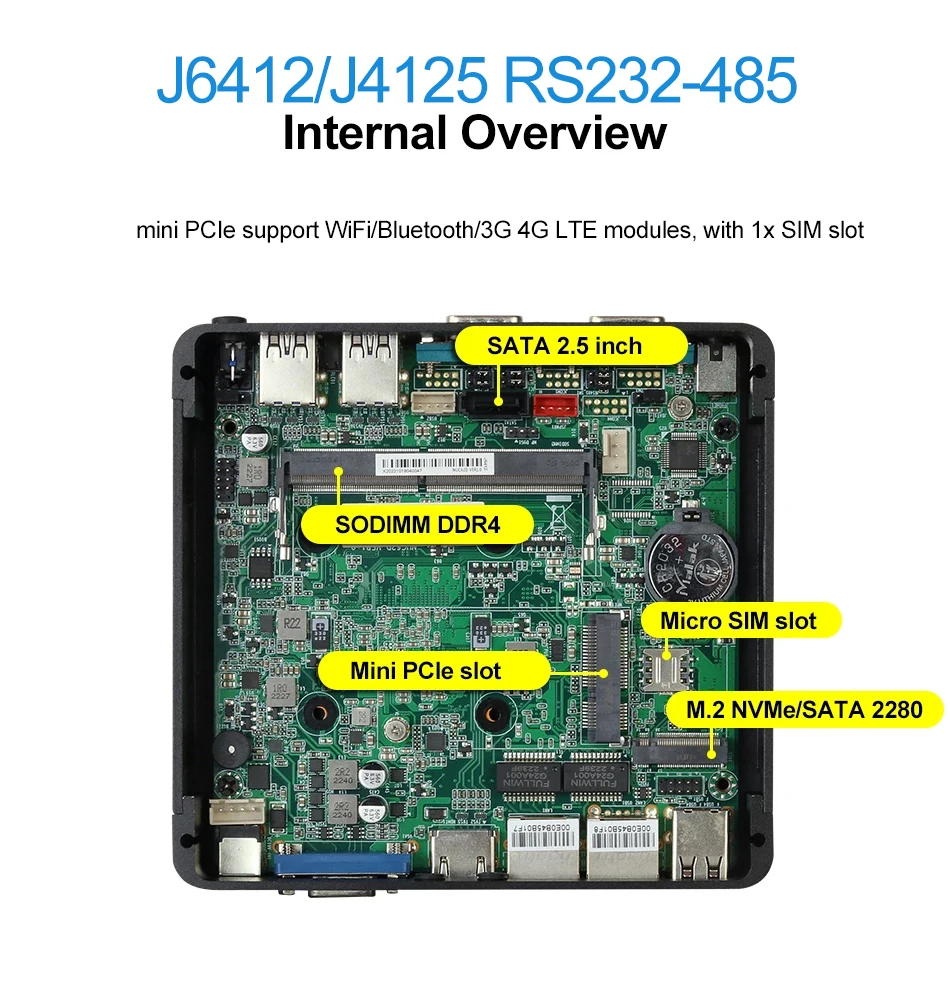

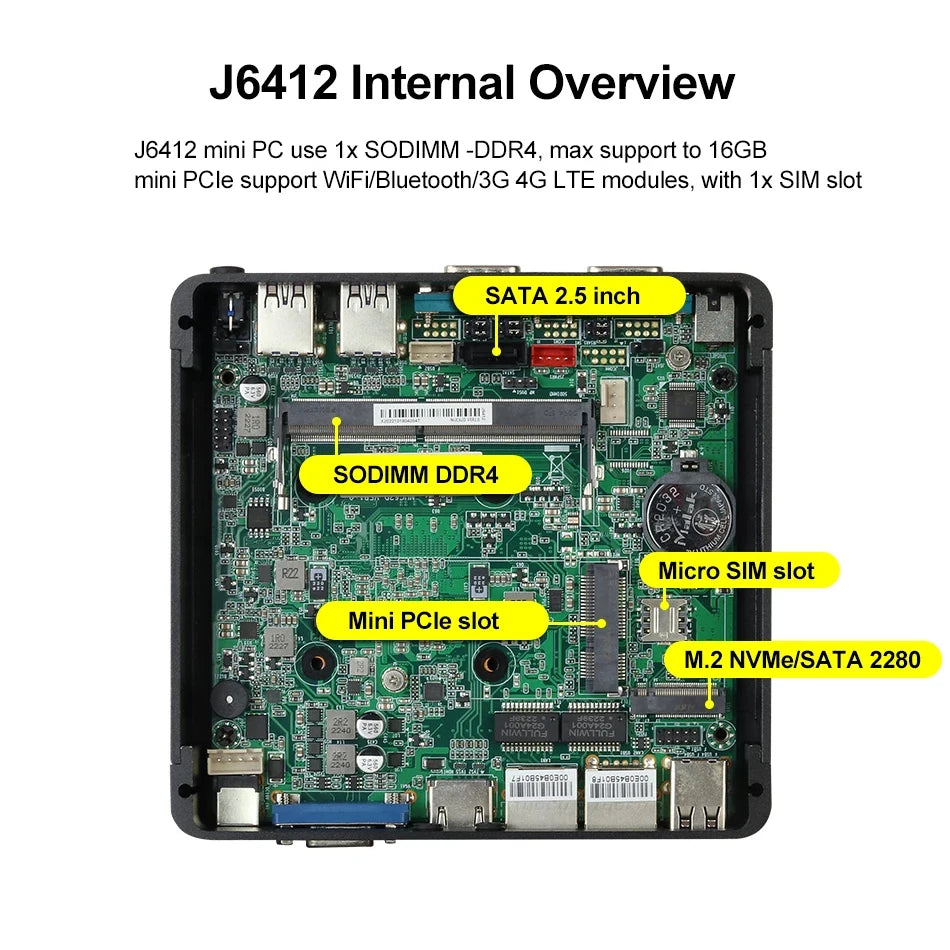

I/O Interface - Internal

1x SODIMM-DDR4 slot
1x mSATA socket ( J6412 1x M.2 SATA/NVMe 2280 socket )
1x 2.5 inch SATA connector
1x Mini PCI-E socket for WiFi/Bluetooth/4G module

Support OS

J4125 support Windows 10, Linux /Ubuntu/CentOS

J6412 support Windows 11, Windows 10, Linux/Ubuntu/CentOS

other CPUs support Windows 7/8/10, Linux/Ubuntu/CentOS

Construction

Aluminum and metal case with fanless design

Dimensions

135x124x40mm

Environment

Operating Temperature: -20°C to 70°C
Storage temperature: -20°C to 70°C
Relative Humidity: 5% to 95% (non-condensing)

Power Requirement

Power Input DC12V-3A

Package List

1x Mini PC
1x Power Adapter
1x SATA cable
1x User manual
