Processors

Intel Pentium Processor J2900 ( 4 core 4 threads, 2M cache, 2.41GHz tp to 2.66GHz TDP 10W)

Intel Celeron Processor J1900 (4 core 4 threads, 2M cache, 2.0GHz up to 2.42GHz, TDP 15W)

Intel Pentium Processor 3805U ( 2 core 2 threads, 2M cache, 1.90GHz TDP 15W)

Inte Core Processor i3 4005U (2 core 4 threads, 3M Cache, 1.70 GHz, TDP: 15W)

Inte Core Processor i5 4200U(2 core 4 threads, 3M Cache, 1.60 GHz up to 2.60 GHz, TDP: 15W)

Inte Core Processor i7 4500U(2 core 4 threads, 4M Cache, 1.80 GHz up to 3.00 GHz, TDP: 15W)

Intel Core Processor i7 5500U (2 core 4 threads, 4M Cache, 2.40GHz up to 3.00GHz, TDP 15W )

Graphics Card

Processor Graphics

Memory(RAM)

J1900/J2900:1x SODIMM DDR3L slot, max support 8GB 1333/1600MHz

other CPUs :2x SODIMM DDR3L slots, max support 2x 8GB 1333/1600MHz

Hard Disk(SSD)

Support 1x SATA 2.5"HDD, Support 1x mSATA SSD

Dual Display

1x VGA

1x HDMI

Support Synchronous or Dual-line Independently Display

Support System

Windows 10 32/64bit

Windows 8.1 32/64bit

Windows 7 64bit

Linux/ubuntu/Openelec, etc.

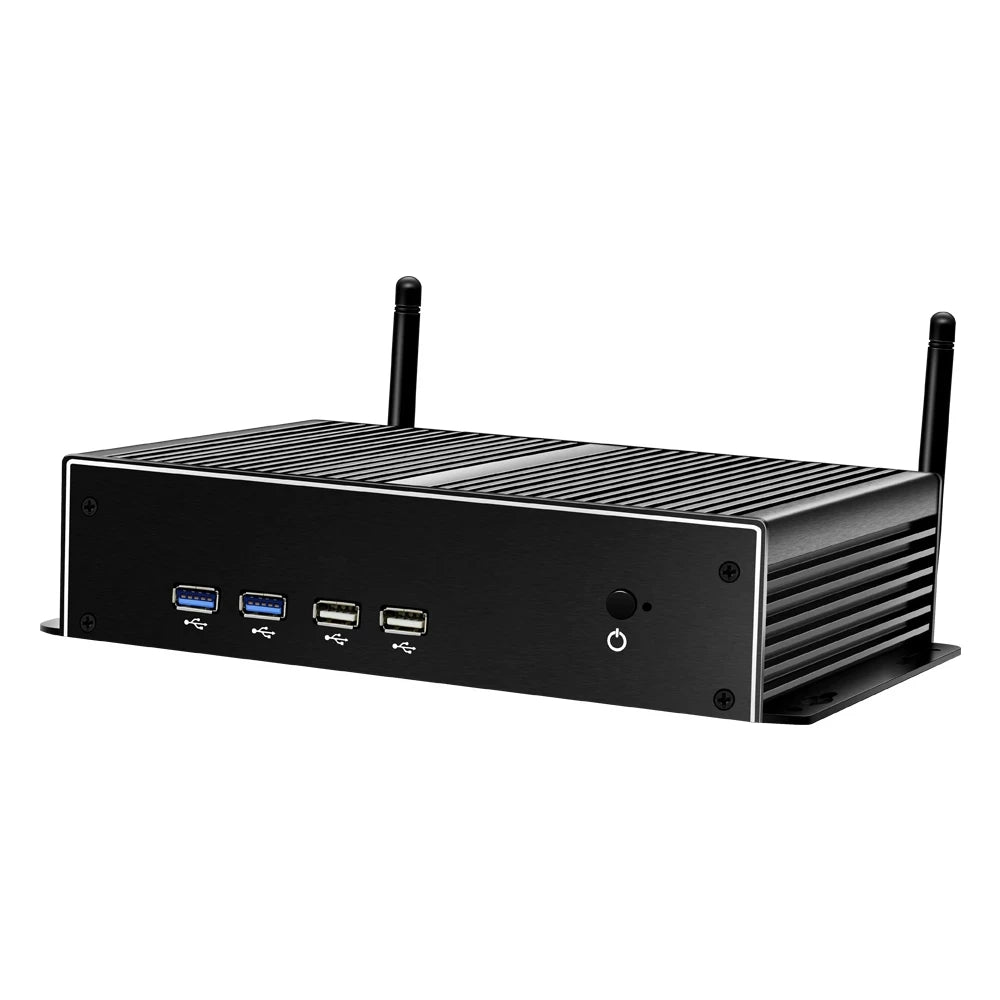

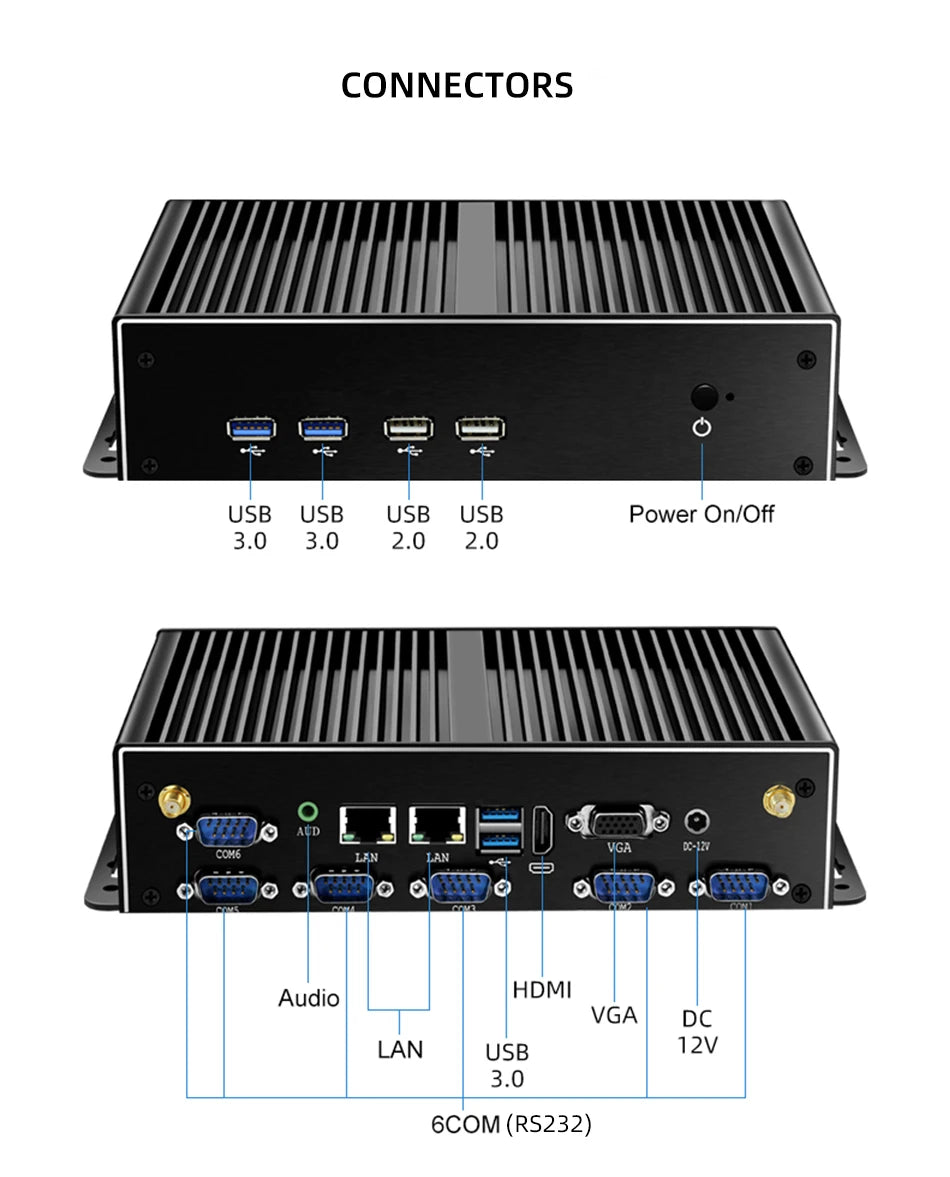

Front-Panel Connectors

Power on/off

2x USB 3.0, 2x USB2.0

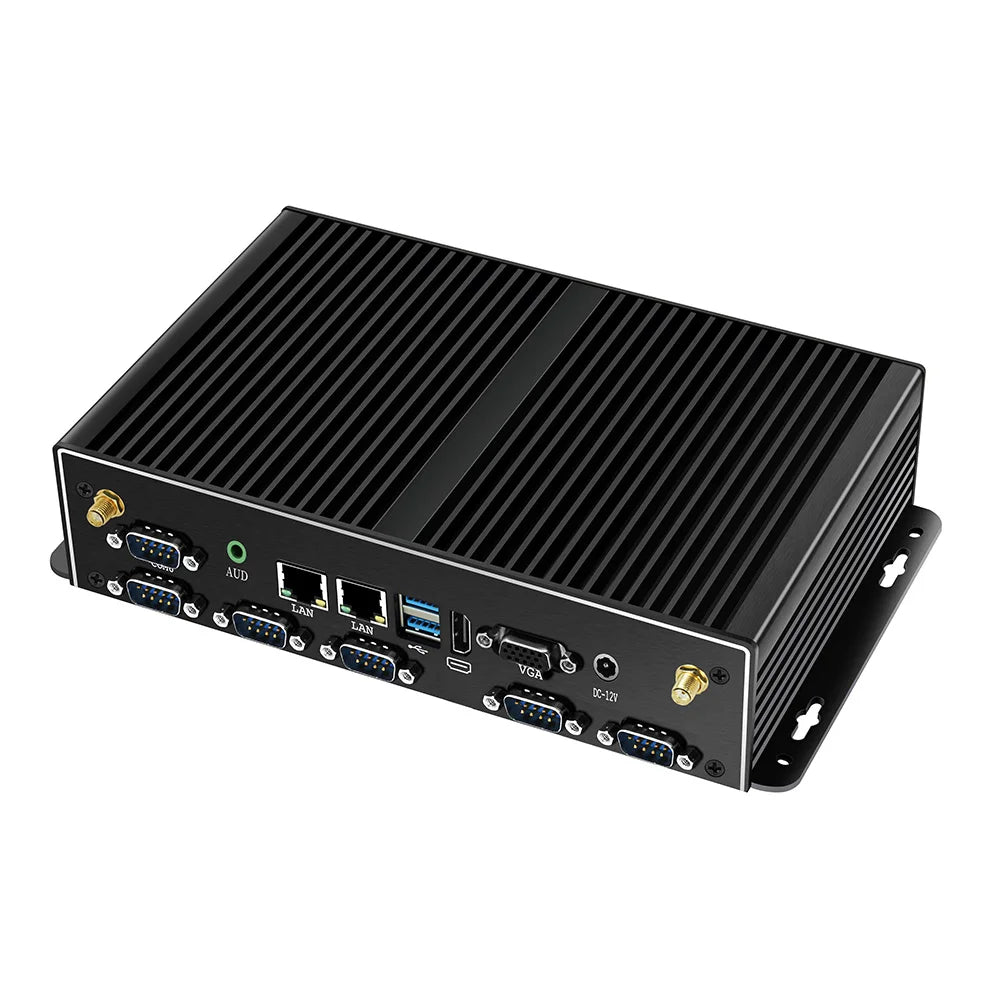

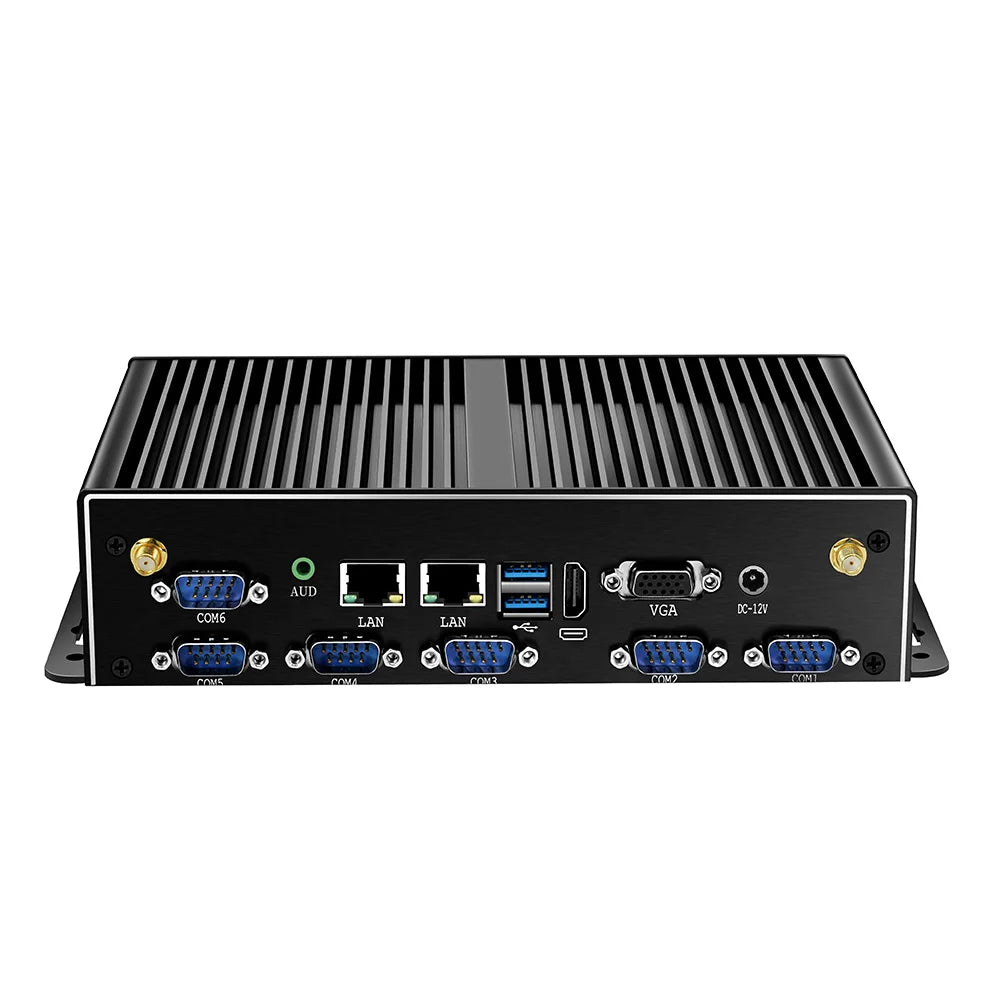

Rear-Panel Connectors

1 x HDMI + 1x VGA, 2 x USB3.0, 6 x RS232, 2 x RJ45

1 x AUD, 1 x DC IN 12V, 2 x WIFI antennas connectors

Ethernet port

2x LAN RJ45, support WOL/PXE

J1900/J2900: Inte i211AT Gigabits Ethernet

Other CPUs: Intel i225V 2.5G Ethernet

Supports Wake UP on LAN, S5 RTC Wake Settings, PXE Boot. Restore AC power loss

WIFI

1x Mini PCIE slot for WiFi module

Expansion

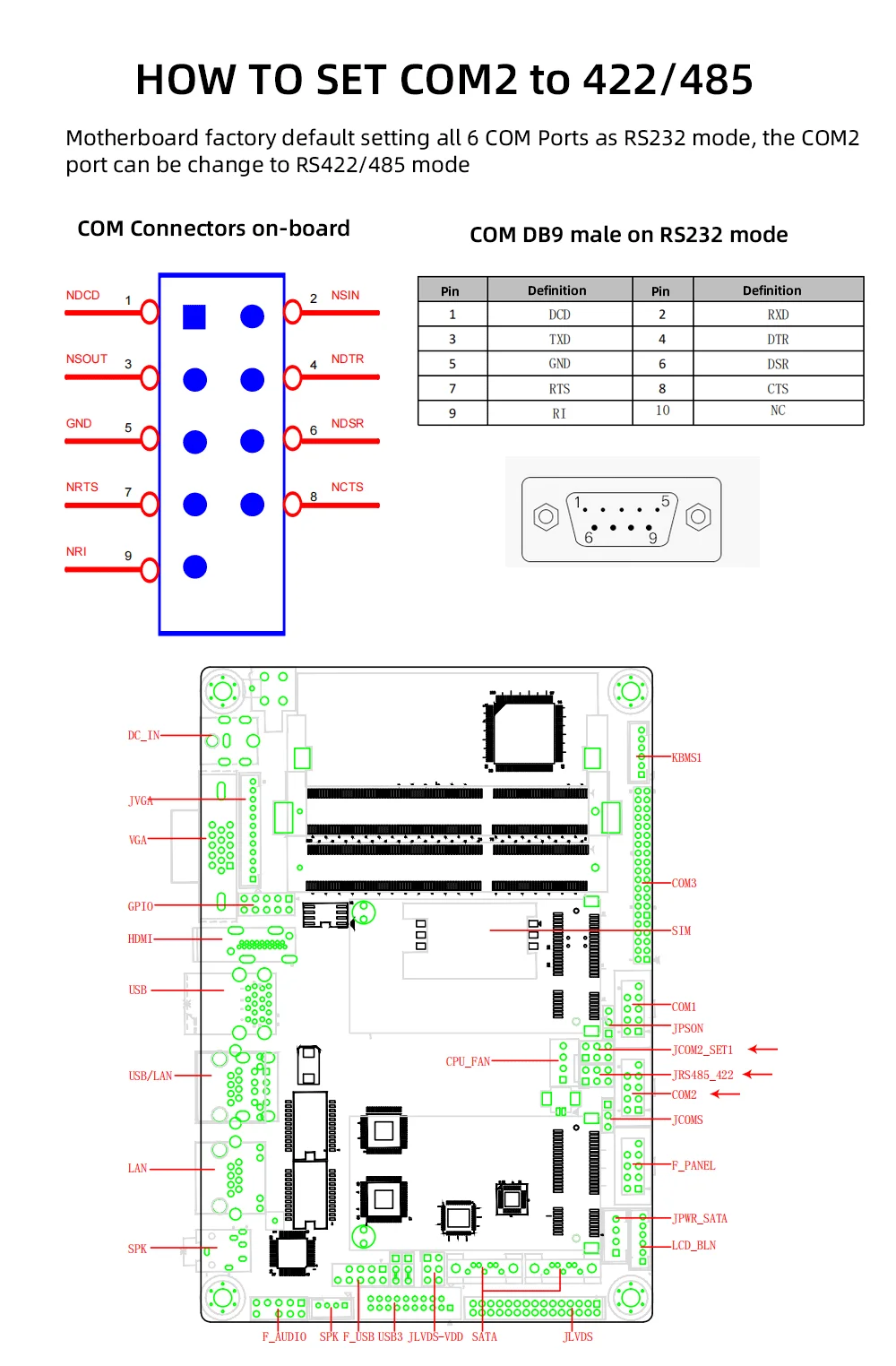

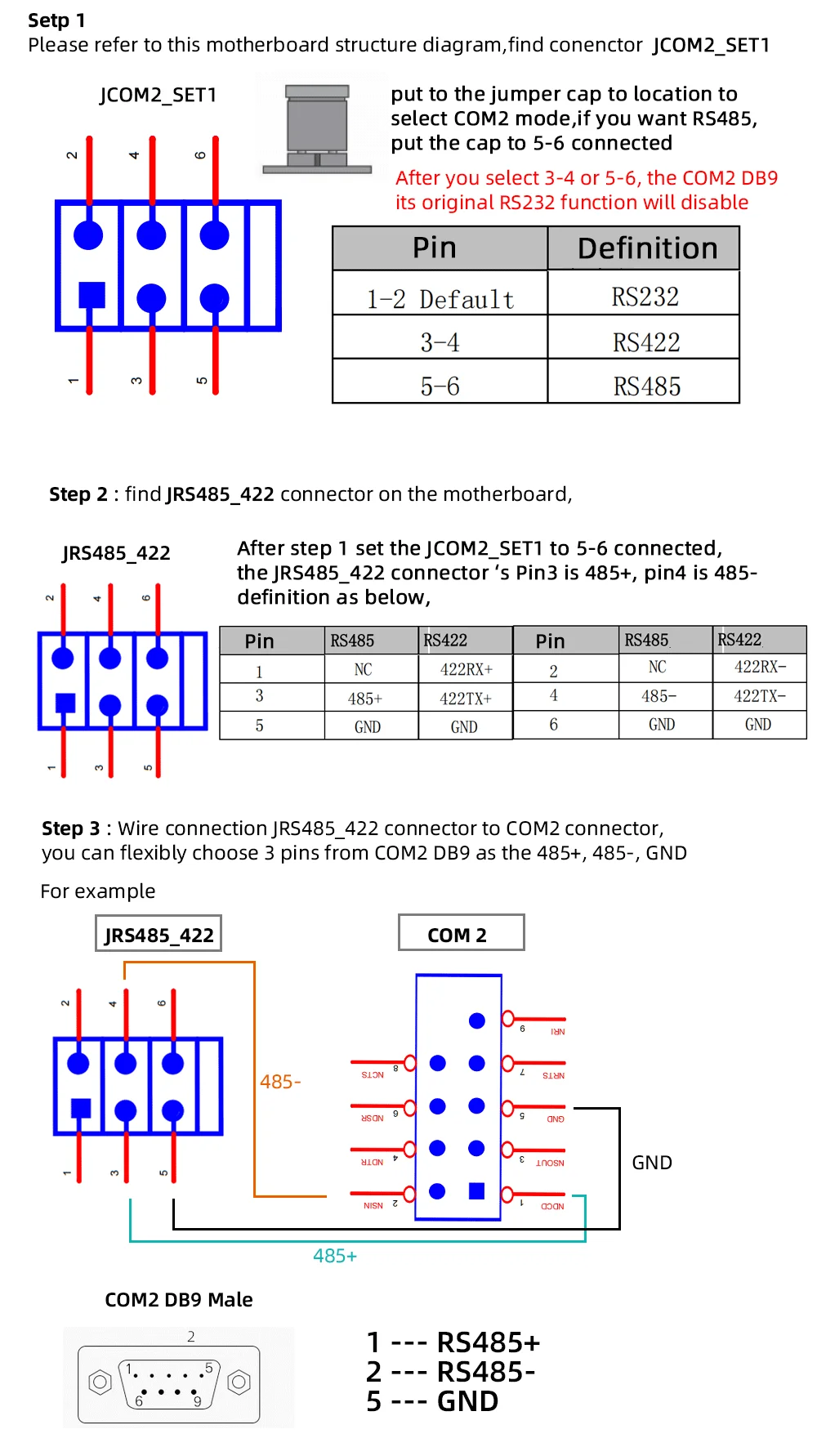

1x COM RS485,

1x LVDS optional

Watchdog Timer

Supports (If you need this hardware, please let us know before payment)

4G Module

1x Full Height Mini PCIE for WiFi/3G/4G LTE module

1x SIM slot on-board

Cooling System

Fanless Passive cooling with Heat Sink Aluminum Block

Audio port

Adopting Realtek ALC662/892 Chip, Supports dual channels, stereo, and Line out

Power

Input: DC100-240V AC/50-60Hz Output: DC 12V -5A/3A

Operating Temperature

-20 to 65℃

Storage Temperature

-20 to 65℃

Relative Humidity

5%~95% (non-condensing)

Dimension

235*137*51mm

Package Content

1x Mini PC 1x Power Adapter( We send power plug type according to your address )

1x Power Cord

1x User Manual
