Free Shipping SFP+ 10GB/SFP 1GB /2.5G / I225 2.5GB LAN C3558R C3758 C3758R Pfsense Firewall Router Mini PC Q203XXG9

Free Shipping SFP+ 10GB/SFP 1GB /2.5G / I225 2.5GB LAN C3558R C3758 C3758R Pfsense Firewall Router Mini PC Q203XXG9

CHF 524.88
Taxes included.
Color
Bundle
Stripe Trust Badge
Shipping Countries & Returns

Free express shipping within the EU in 3–5 days. Worldwide shipping in 3–7 days.

We process and ship all orders as quickly as possible and ensure that your items arrive the soonest.

Returns & Exchanges

Returns are accepted within 14 days of the delivery date. Please contact us to initiate a return if there is a product defect or damage.

Shipping countries

INTERNATIONAL - United States, Canada, Hong Kong SAR, Israel, Japan, South Korea, Malaysia, New Zealand, Singapore.

EUROPE - Austria, Belgium, Bulgaria, Croatia, Cyprus, Czechia, Denmark, Estonia, Finland, France, Greece, Hungary, Ireland, Italy, Latvia, Lithuania, Luxembourg, Malta, Netherlands, Poland, Portugal, Romania, Slovakia, Slovenia, Spain, Sweden, Germany, Switzerland, United Kingdom, Norway.

Best Value Mini PCs Online

Free Shipping Worldwide

24/7 Technical Support

Free Shipping SFP+ 10GB/SFP 1GB /2.5G / I225 2.5GB LAN C3558R C3758 C3758R Pfsense Firewall Router Mini PC Q203XXG9

Free Shipping SFP+ 10GB/SFP 1GB /2.5G / I225 2.5GB LAN C3558R C3758 C3758R Pfsense Firewall Router Mini PC Q203XXG9

SPECIFICATIONS

Brand Name: qotom

Certification: CE

Color: Black

Graphics Card Type: Integrated Card

Hard Drive Capacity: 512GB

High-concerned chemical: None

Memory Capacity: 32 GB

Model Number: Q203XXG9

Origin: Mainland China

Processor Brand: Intel

Processor Main Frequency: Intel Denverton Processor Default Atom C3758R 8 Cores Processor 2.4Ghz

Processor Model: Intel Denverton Processor Default Atom C3758R 8 Cores Processor 2.4Ghz

Q20322G9: Intel Atom Processor C3558 8M Cache, up to 2.20 GHz

Q20331G9: Intel Atom Denverton C3758R,2.4GHz,16m Cache,8 core,AES-NI,TDP 26W

Q20332G9: Intel Atom Denverton C3758,2.2GHz,16m Cache,8 core,AES-NI,TDP 25W

Q20342G9: Intel Atom Processor C3808 12M Cache, up to 2.0 GHz

Q20352G9: Intel Atom Denverton C3908,1.60GHz,12m Cache,4 core,AES-NI,TDP 26W

Type: Mini Desktop,Mini PC

Use: Household

You can choose the cpu what you want.

Q20311G9 : Intel Atom Denverton C3338R,1.8GHz,max 2.2GHz,4m Cache,dual core,TDP 10.5W

Q20321G9 :Intel Atom Denverton C3558R,2.4GHz,8m Cache,quad core,TPD 17W

Q20332G9 : Intel Atom Denverton C3758,2.2GHz,16m Cache,8 core,AES-NI,TDP 25W

Q20331G9 : Intel Atom Denverton C3758R,2.4GHz,16m Cache,8 core,AES-NI,TDP 26W

Q20342G9 : Intel Atom  Denverton C3808,2.0GHz,12m Cache,12 core,AES-NI,TDP 26W

Q20352G9 : Intel Atom  Denverton C3908,1.60GHz,12m Cache,4 core,AES-NI,TDP 26W

Q20322G9:Intel Atom® Processor C3558,8M Cache, up to 2.20 GHz TPD 16W


Pay much attention on the differences pls!!!


Specification
Category
Descriptions
Model
No.

Q20311G9/Q20321G9/Q20332G9/Q20331G9/Q20342G9 S20 Case

 Processor System

Memory
2 x DDR4 SO-DIMM Socket (Up to 64G, 2400MHz)
Chipset
By CPU
Graphics
ASPEED AST2400
Watch Dog
Yes

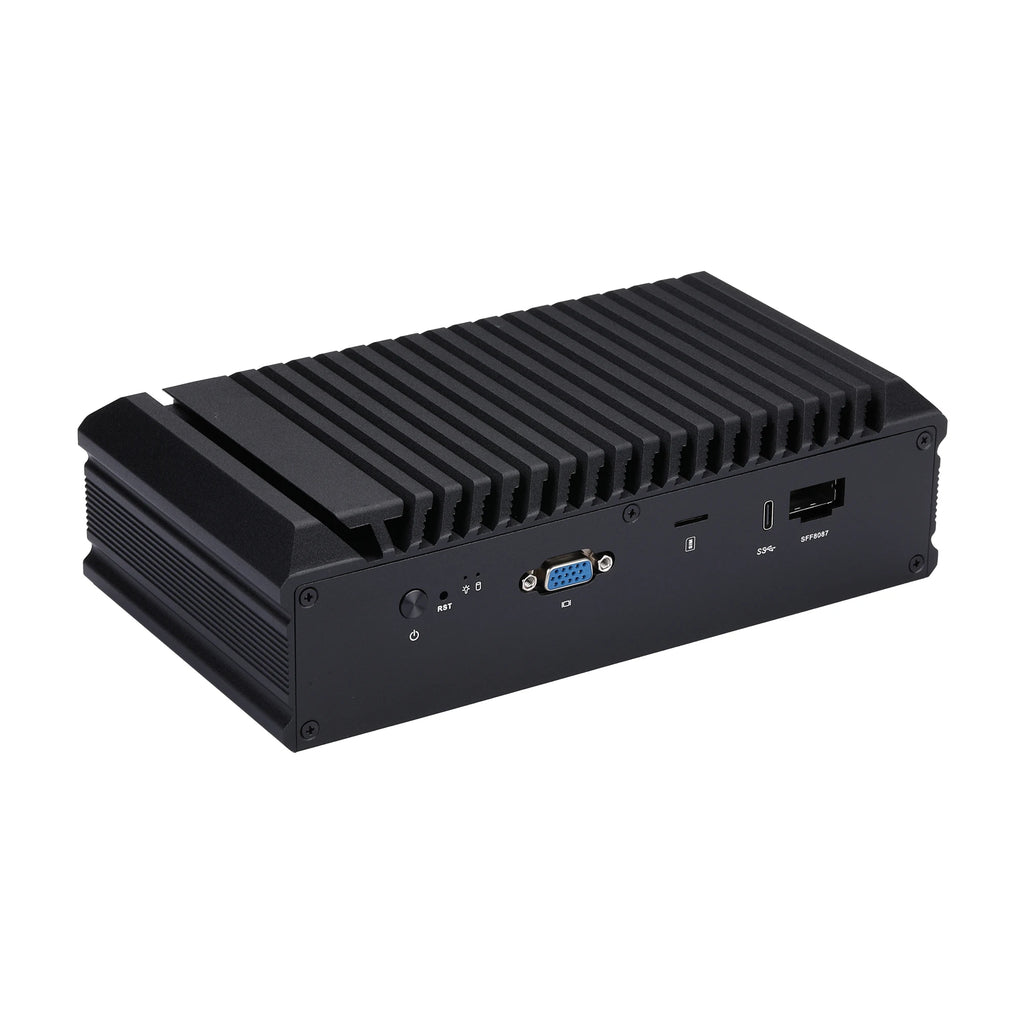

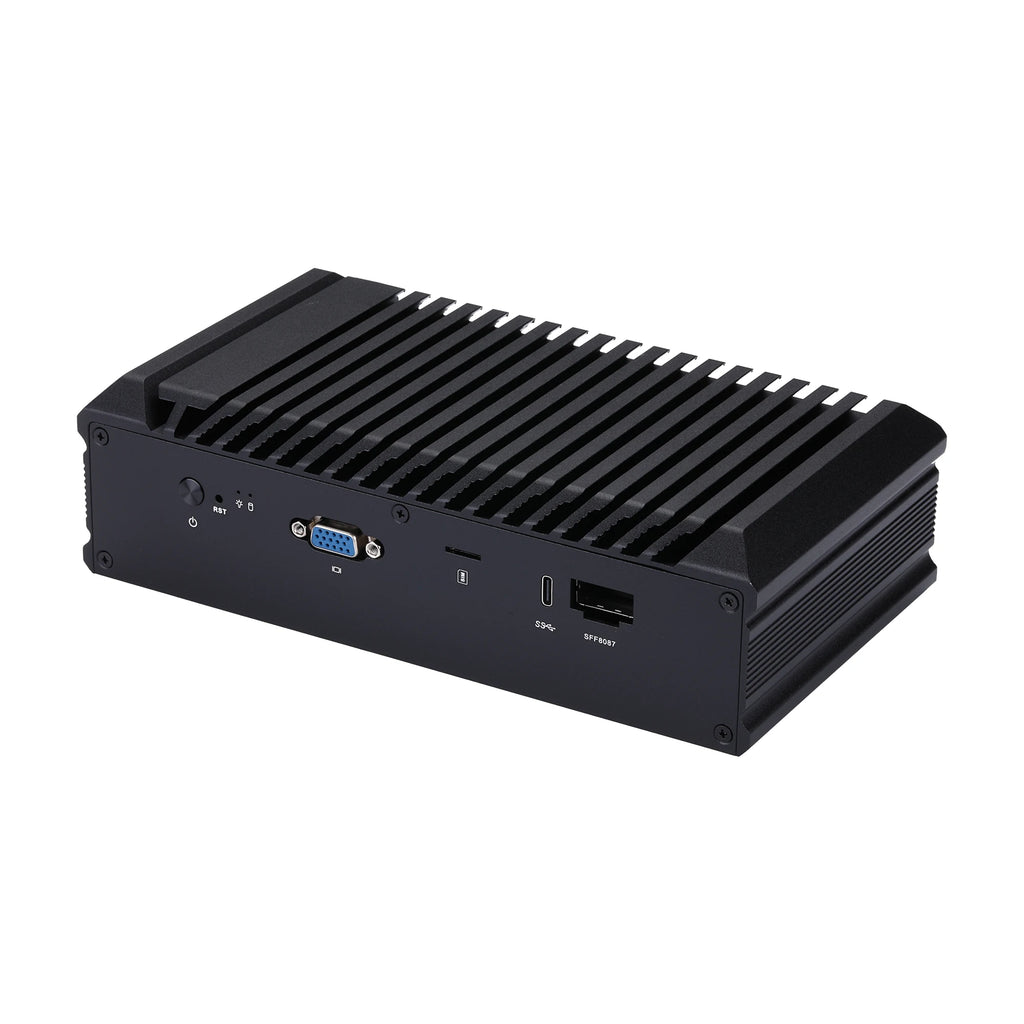

Front I/0
Power Button
1*Power Button,1*Reset Button
Reset Button
1*Power LED,1*HDD LED
VGA
1 x DB15
SIM Slot
1 x Nano SIM Slot
Mini SAS
1 x Mini SAS (SFF8087)
NO Mini SAS for Q20311G9 C3338R
Type C
1 x Type C

Q20331G9 C3758R  Support Type C(USB 3.0)

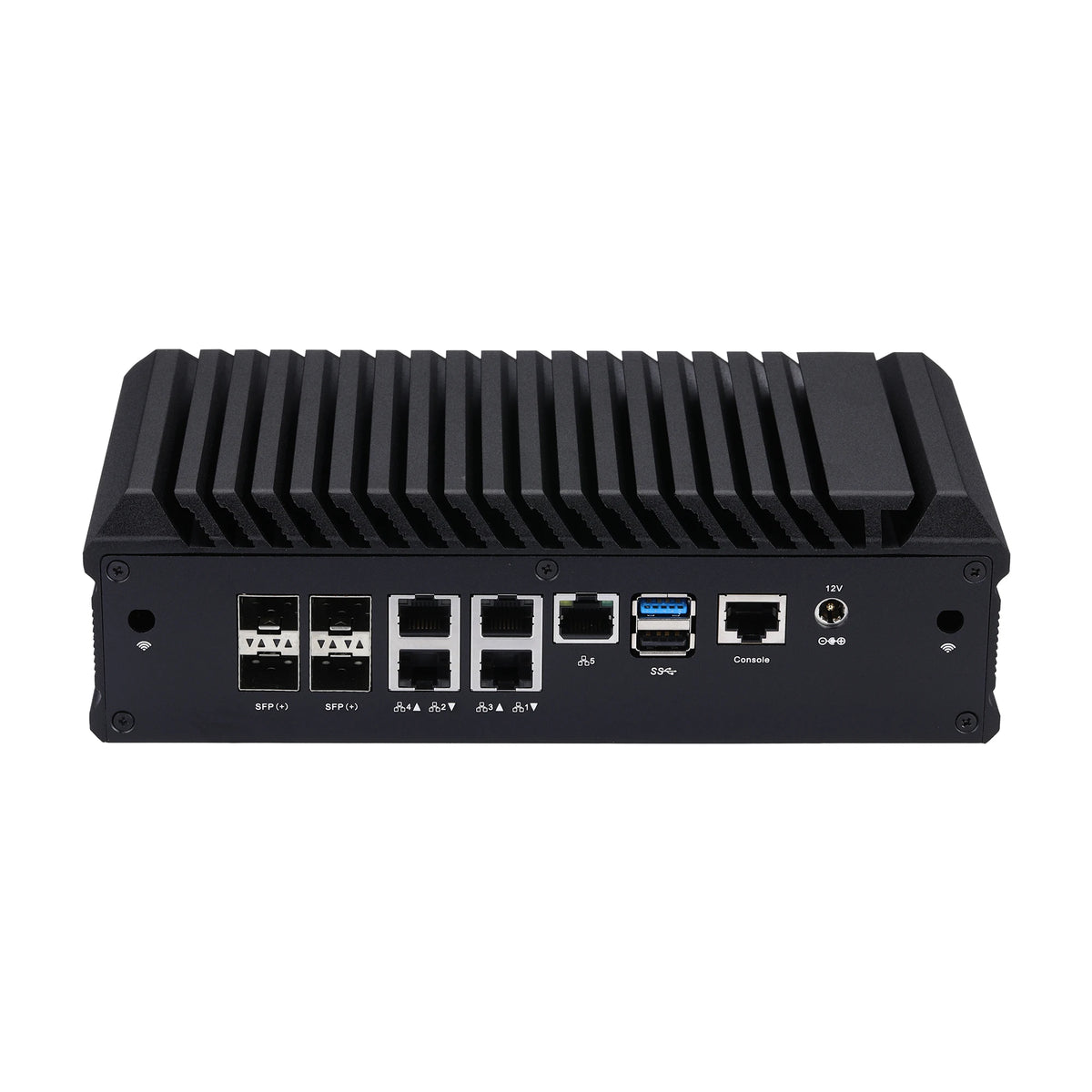

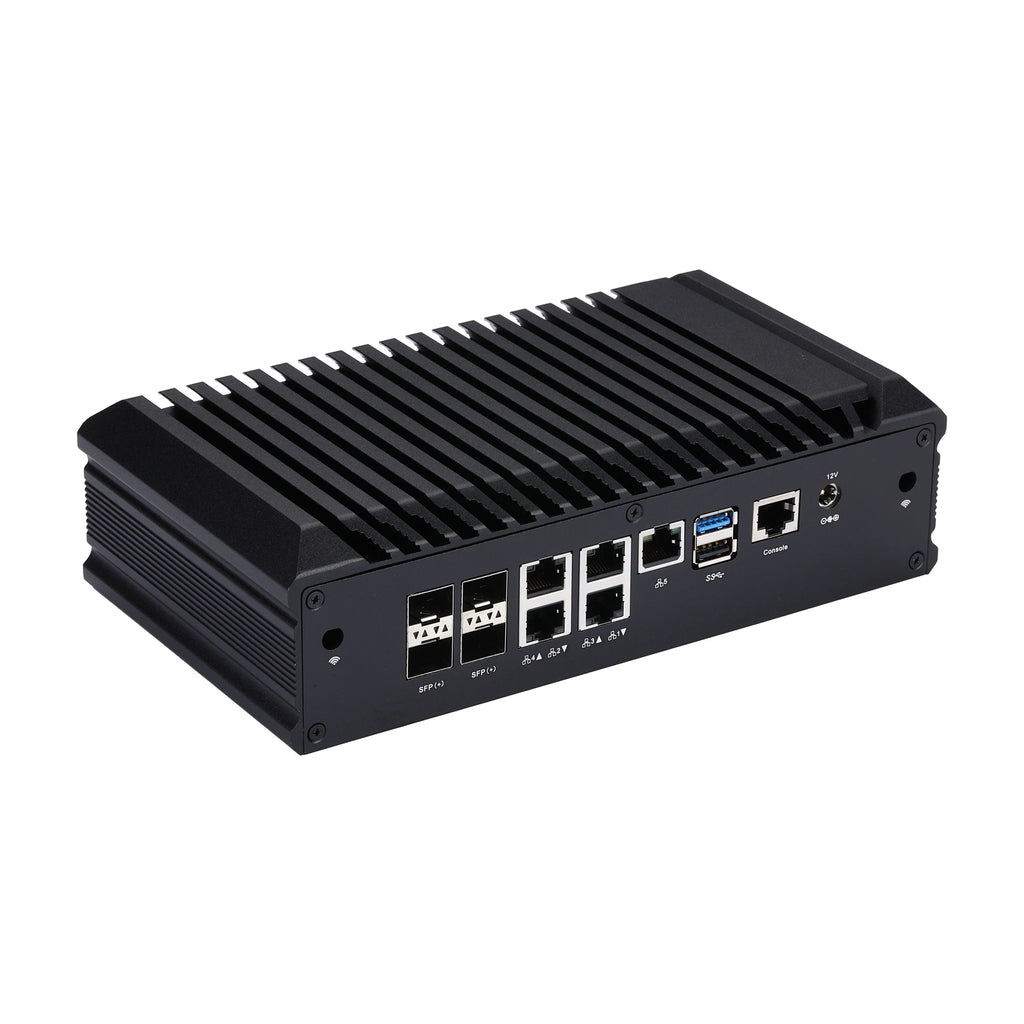

Rear I/O
Power
1 x DC Jack
Serial Port
1 x RS-232 (RJ-45)
USB
1 x USB 3.0, 1 x USB 2.0
LAN
5 x Intel I225-V/I226-V 2.5 Gigabit LAN
SFP
Q20311G9  SFP 1G x4 C3338R
 Q20321G9 SFP+ 10G  x2 + SFP 1G x2  C3558R
Q20332G9 SFP+ 10Gx4 C3758
Q20331G9 SFP+ 10Gx4 C3758R
   Q20342G9 SFP+10G *4 C3808

Storage

Type
2 x 2.5-inch HDD/SSD
2 x M.2 for SSD (M key, Type: 2280, PCIe 3.0 x 2)
Power Requirement
Power Adapter
12V5A
DC Jack
5.5mm, 2.5mm


Environmental
Operating Temp
0°C~50°C
Non-Operating Temp
-20°C~80°C
Humidity
10%~90%




Mechanical
Material
Aluminium Alloy
Dimension
217 x 122 x 62mm
Weight
1.4kg
Mounting
VESA Mounting Bracket
Packaging Dimension
285 x 260 x 93mm
Kensington Lock
No
Cooling Mode
Fanless Design
OS Support
For Windows 10, Linux

Details Images
SYSTEM
This mini pc supports Windows 10 11, Linux, pfsense, etc. This pc can be used for Bank/Home/Office/POS machine/KIOSK
Default: We pre-install windows 10 (no licence)you also can install OS and software package by yourself. F11 key
boot from USB Drive. Delete key enter into BIOS.
Packing & Delivery

Packing


1 x Mini PC 1 x Power supply (adapter and cord)1 x VESA bracket & screws
1 x color box

* Power cord options: EU/ SA/ AU/ US/ CH Type
* Dual antennas if you buy Wi-Fi
* If you need neutral packaging box, tell us in advance.
