SPECIFICATIONS

Brand Name: tellyee

Certification: CE,RoHS

Color: Black

Graphics Card Type: Integrated Card

HD interface: HDTV/DP

Hard Drive Capacity: 128 GB

High-concerned chemical: None

Material: aluminum shell

Memory Capacity: 8 GB

Model Number: 6305/N150/8505

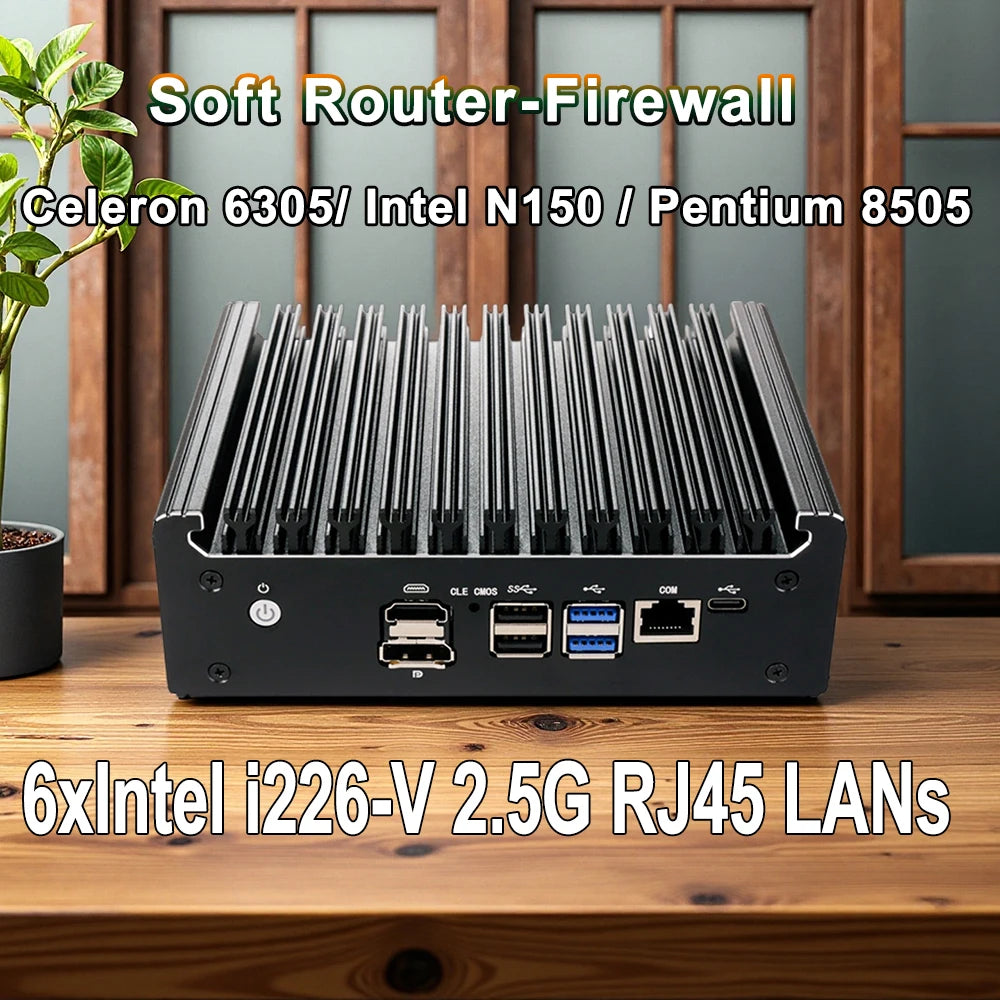

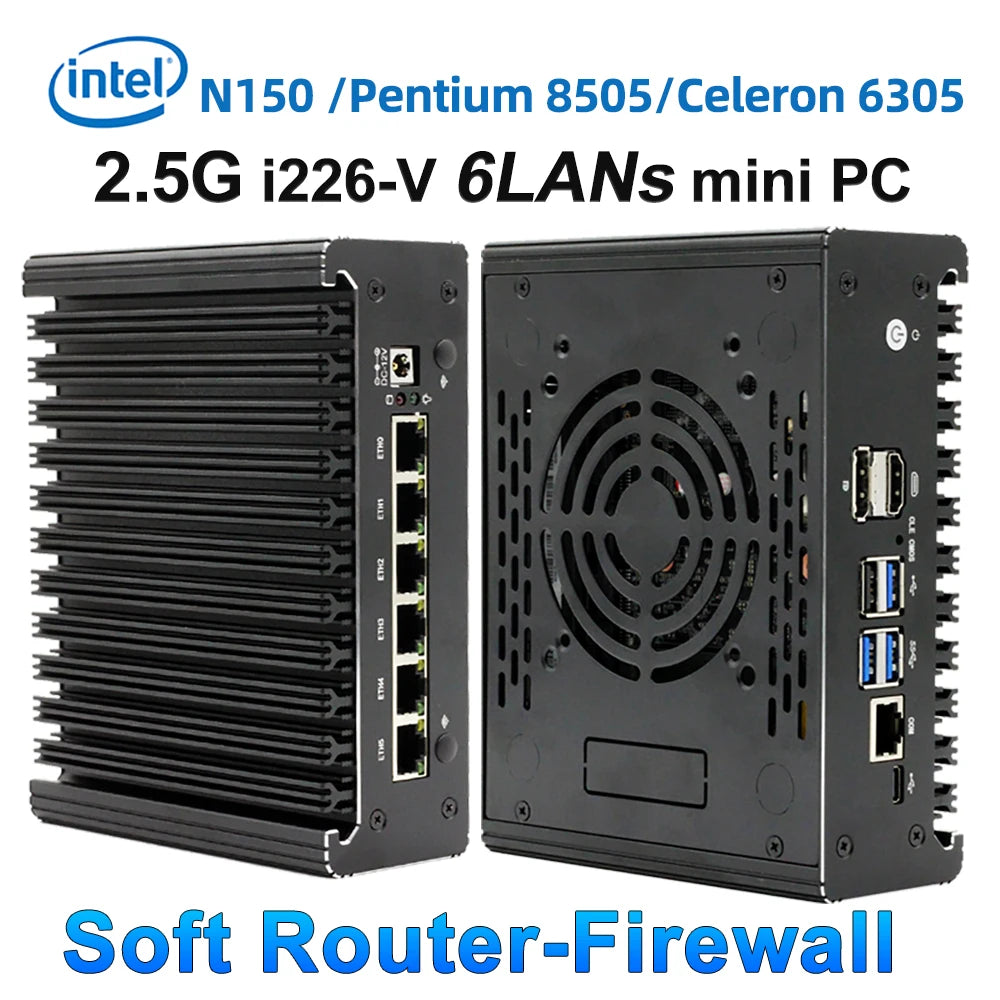

Network port: 6xIntel i226-V 2.5G RJ45 LANs, 1xCOM

Origin: Mainland China

Processor Brand: Intel

Processor Model: Celeron 6305/Pentium Gold 8505/Intel N150

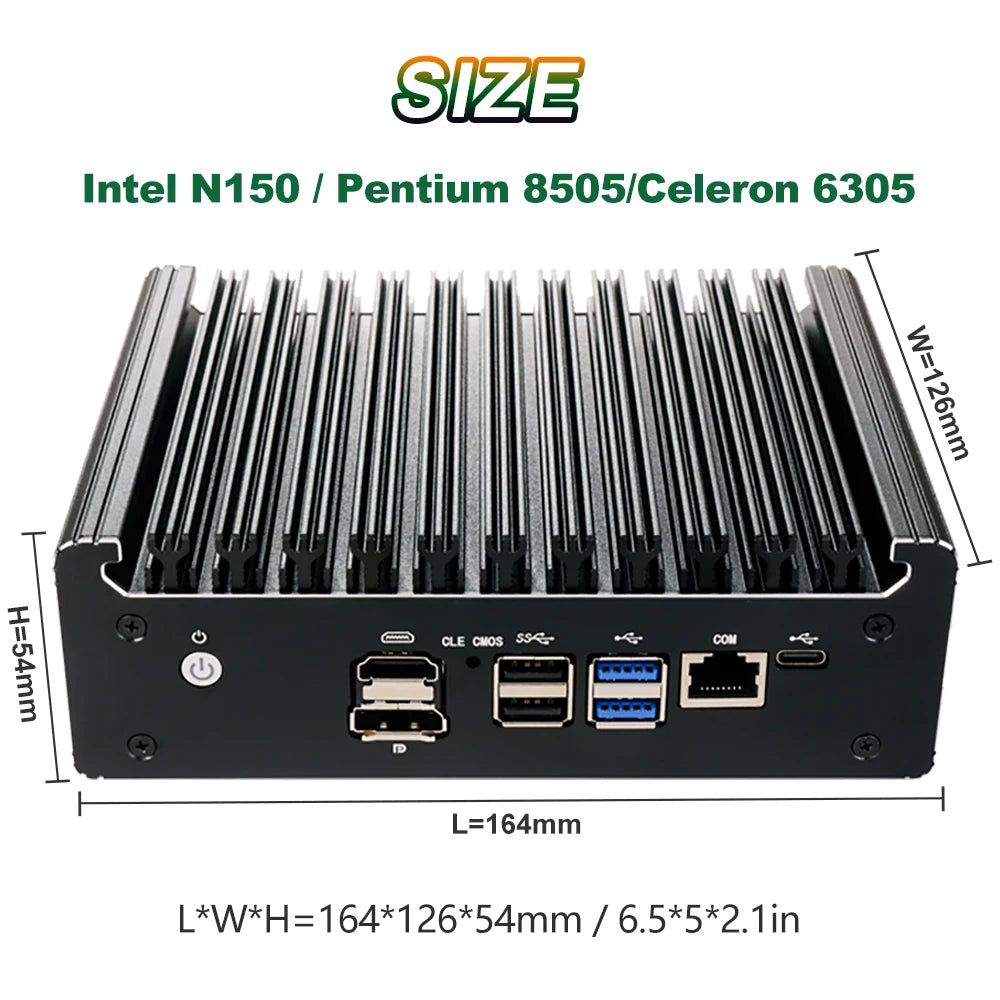

Type: Mini Desktop,Mini PC

USB interface: 2xUSB3.0, 2xUSB2.0

Use: Multimedia

system: We only provide hardware support & do not sell software.

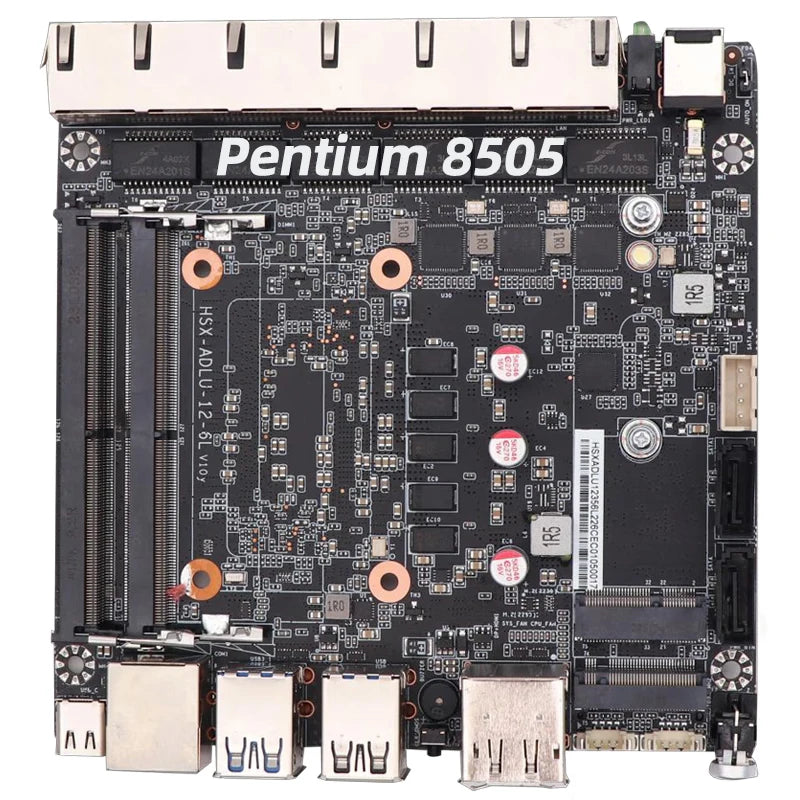

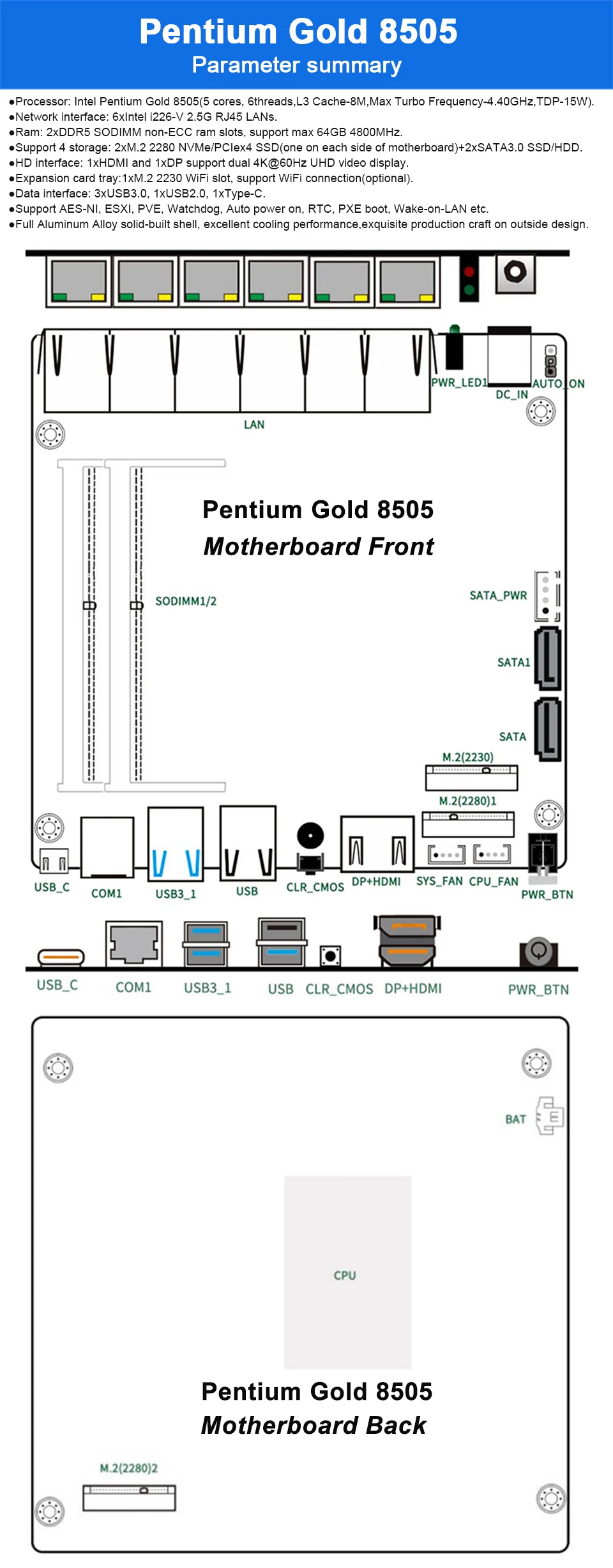

  Intel Pentium 8505 DDR5:

l Processor: Intel Pentium Gold 8505(5 cores, 6threads,L3 Cache-8M,Max Turbo Frequency-4.40GHz,TDP-15W)

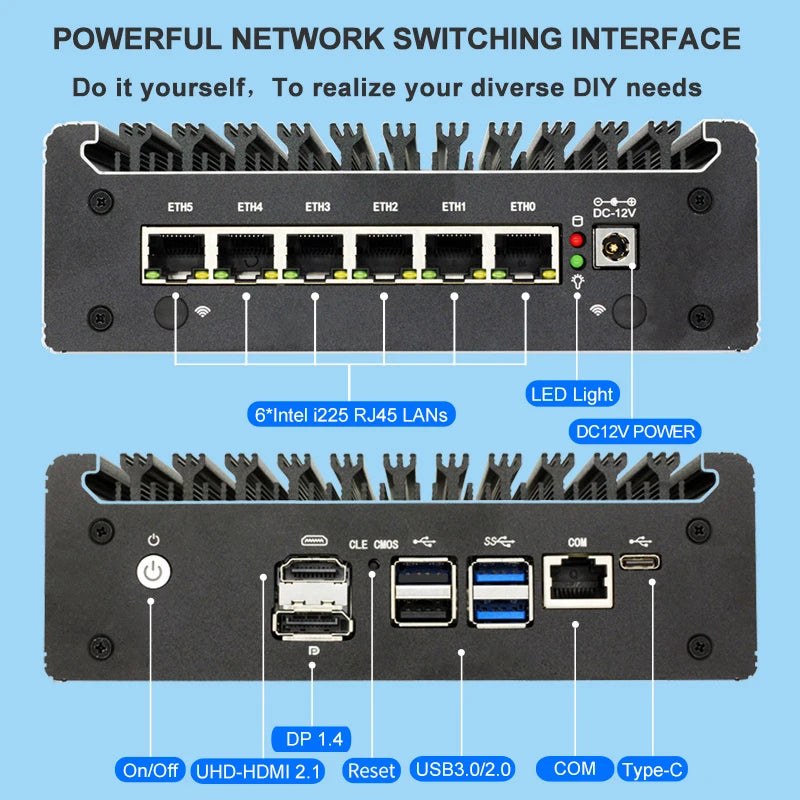

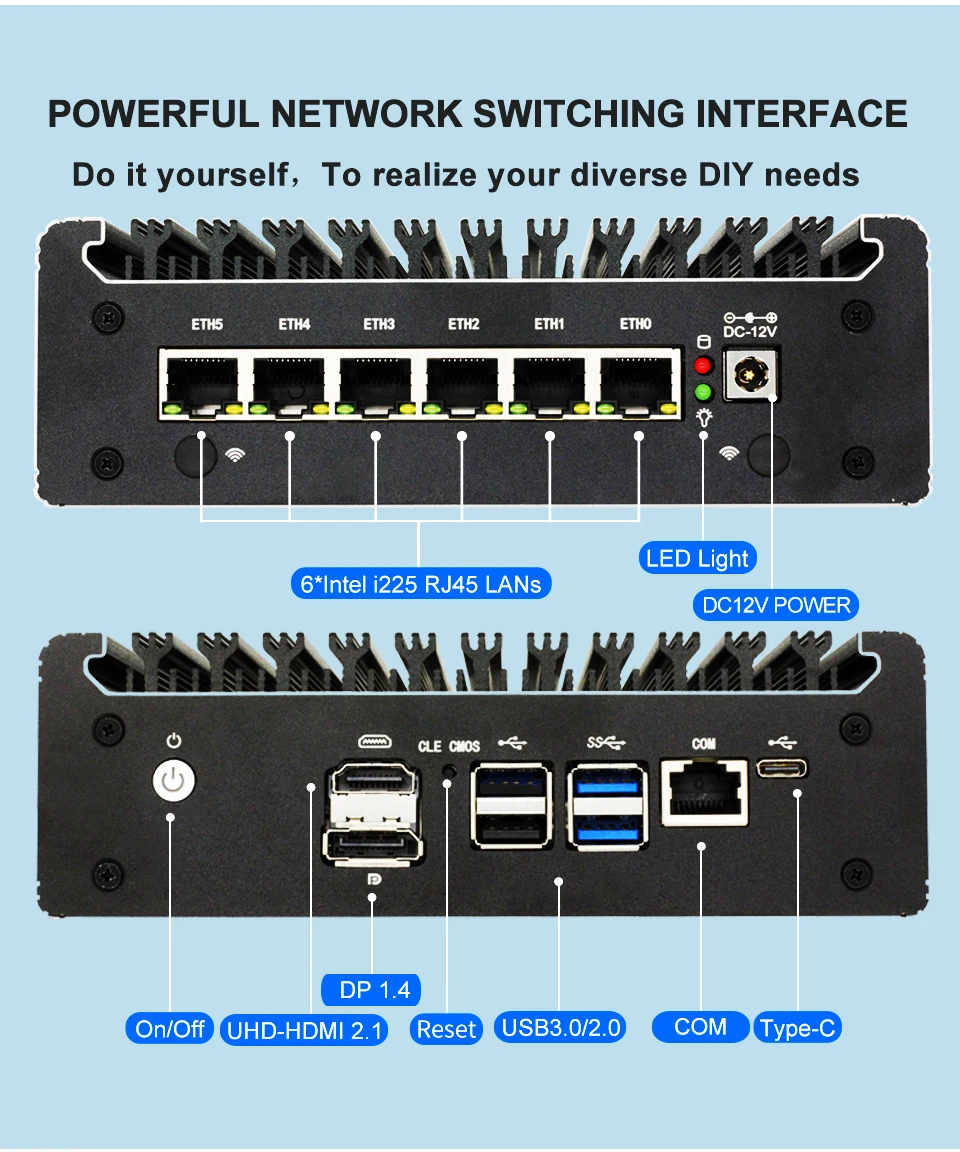

l Network interface: 6xIntel i226-V 2.5G RJ45 LANs.

l Ram: 2xDDR5 SODIMM non-ECC ram slots, support max 64GB 4800MHz.

l Support 4 storage: 2xM.2 2280 NVMe/PCIex4 SSD(one on each side of motherboard)+2xSATA3.0 SSD/HDD.

l HD interface: 1xHDMI and 1xDP support dual 4K@60Hz UHD video display.

l Expansion card tray:1xM.2 2230 WiFi slot, support WiFi connection(optional).

l Data interface: 3xUSB3.0, 1xUSB2.0, 1xType-C.

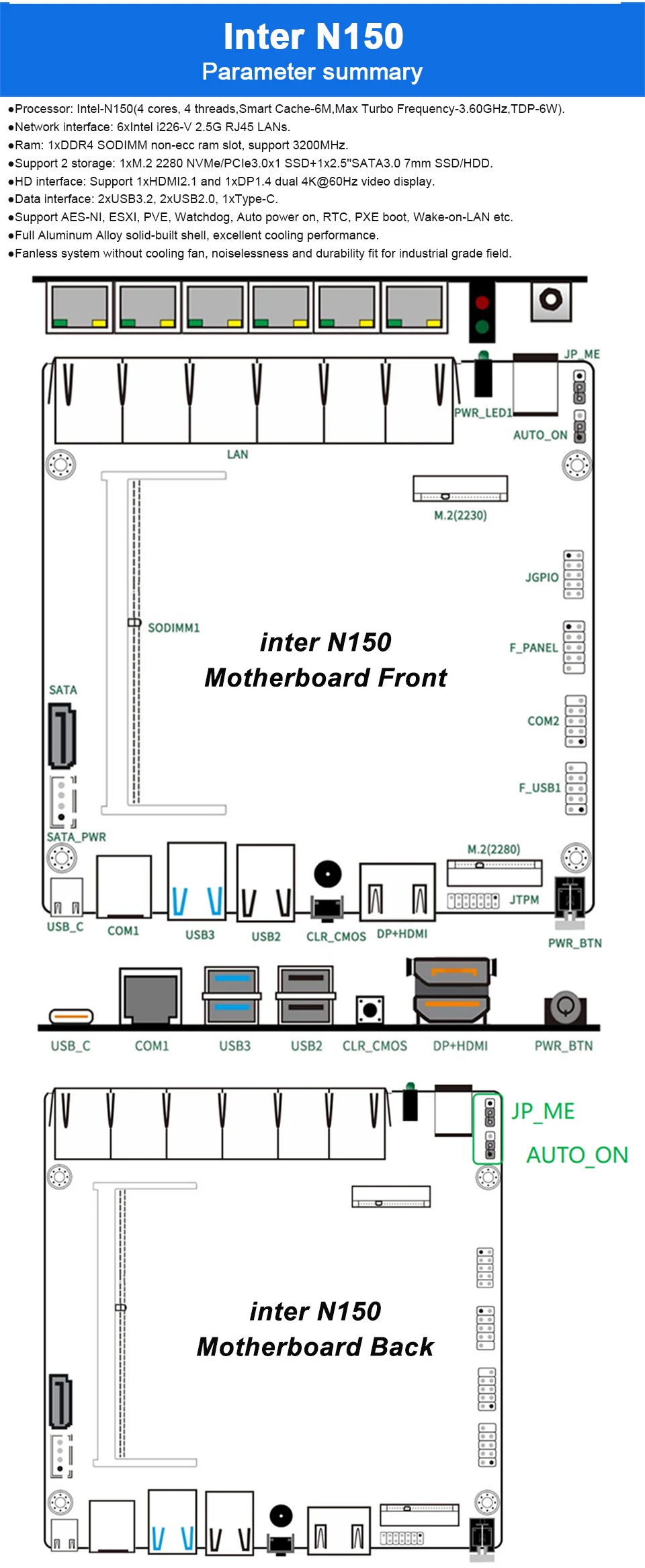

Intel N150 DDR4:

l Processor: Intel N150(4 cores, 4 threads,L3 Cache-6M,Max Turbo Frequency-3.40GHz,TDP-6W)

l Network interface: 6xIntel i226-V 2.5G RJ45 LANs.

l Ram: 1xDDR4 SODIMM non-ecc ram slot, support 3200MHz.

l Support 2 storage: 1xM.2 2280 NVMe/PCIe3.0x1 SSD+1x2.5''SATA3.0 7mm SSD/HDD.

l HD interface: Support 1xHDMI2.1 and 1xDP1.4 dual 4K@60Hz video display.

l Data interface: 2xUSB3.2, 2xUSB2.0, 1xType-C.

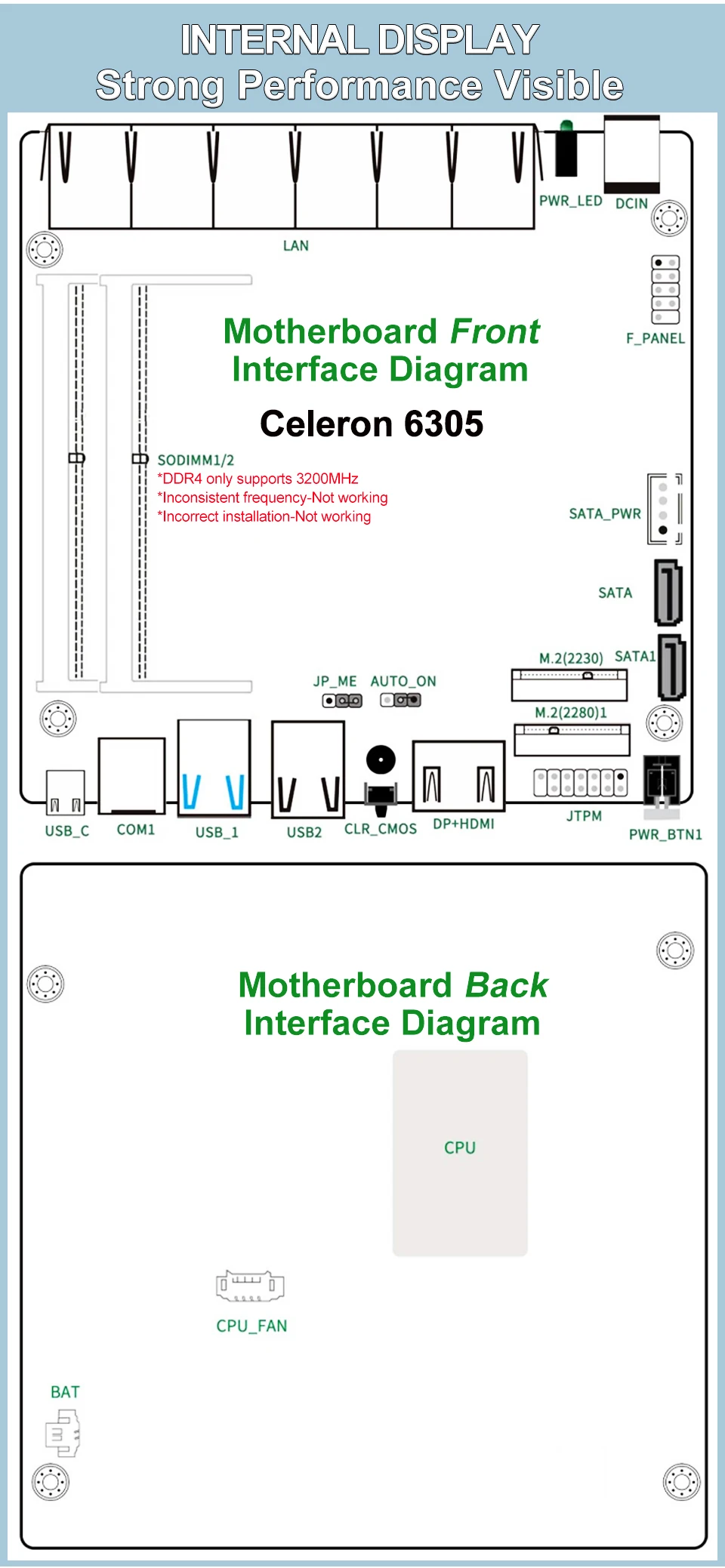

Intel Celeron-6305 DDR4:

l Processor: IntelCeleron-6305(big)(2 cores-2 threads,Smart Cache-4M,Basic frequency-1.80GHz,TDP-15W)

l Network interface: 6xIntel i226-V 2.5G RJ45 LANs.

l Ram: 2xDDR4 SODIMM non-ecc ram slot, support 3200MHz（Inconsistent frequency&Incorrect installation-Not working）.

l Support 2 storage: Support 2 storage: 1xM.2 2280 NVMe(PCIe3.0x4) x1 SSD+1x2.5''SATA3.0 7mm SSD/HDD(motherboard has 2 SATA interfaces)

l HD interface: Support 1xHDMI2.0 and 1xDP1.4 dual 4K@60Hz video display.

l Data interface: 2xUSB3.0, 2xUSB2.0, 1xType-C

  Support use:

l Support AES-NI, ESXI, PVE, Watchdog, Auto power on, RTC, PXE boot, Wake-on-LAN etc.

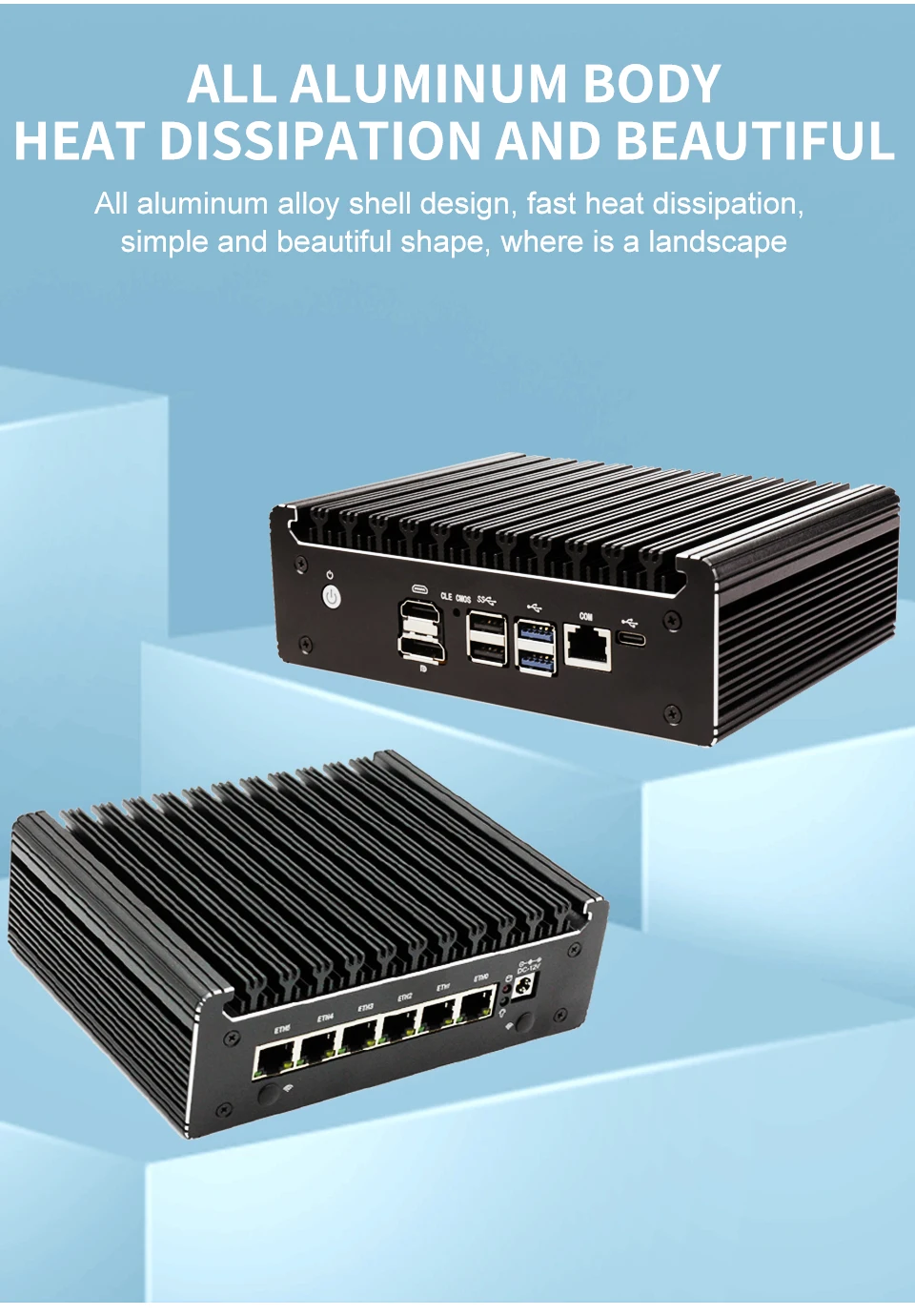

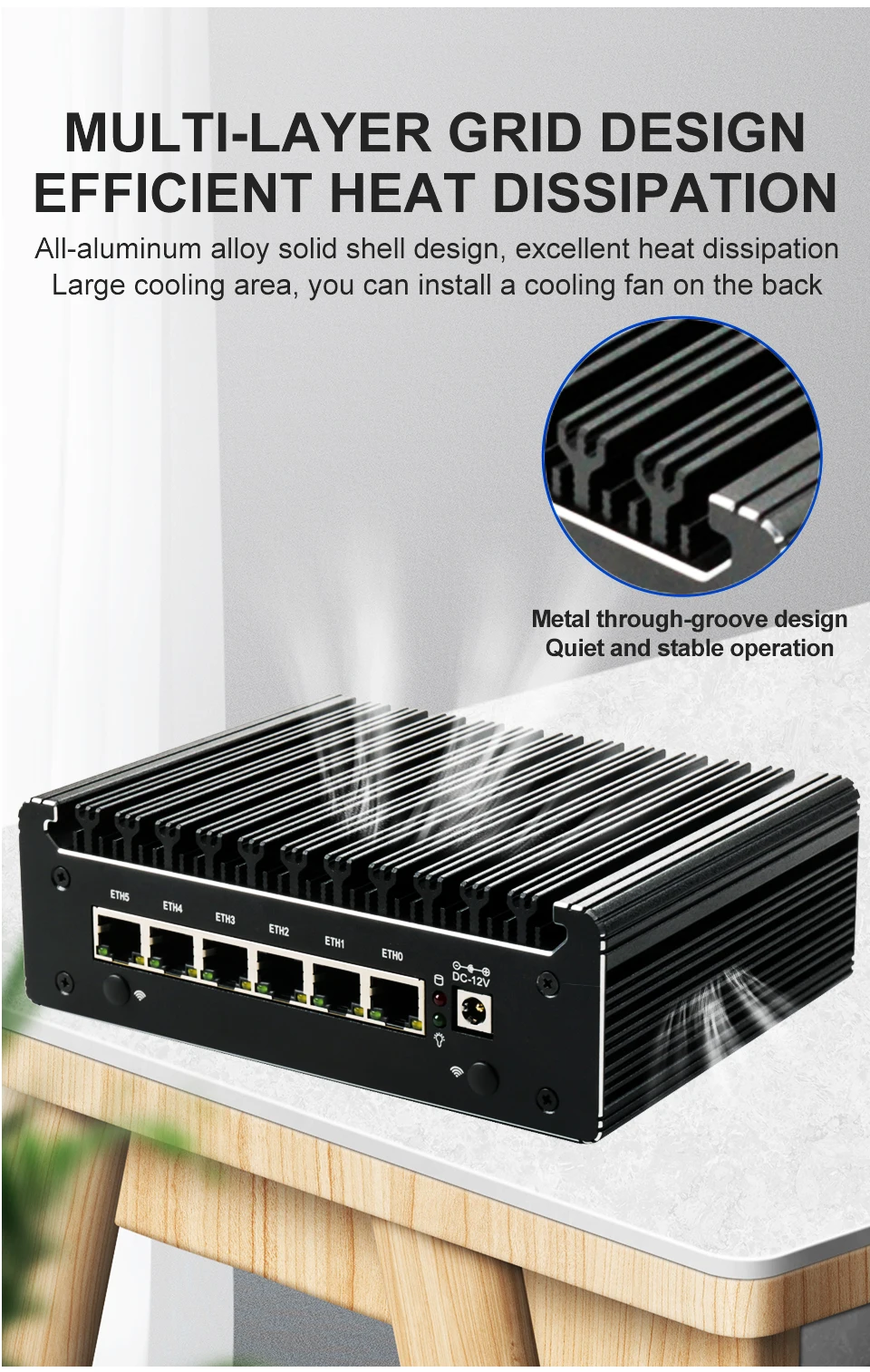

l Full Aluminum Alloy solid-built shell,  excellent cooling performance,exquisite production craft on outside design. It is silent and durable to work as long as 7x24 hours.

l Fanless system without cooling fan, noiselessness and durability fit for industrial grade field.

l COM interface: COM cannot be used as a network port. It has no network speed and does not transmit data. The serial communication port (cluster communication port) is the COM port, or serial port for short. It can be used for many purposes, such as connecting a mouse, printer or modem, and it can also connect Industrial instrumentation.

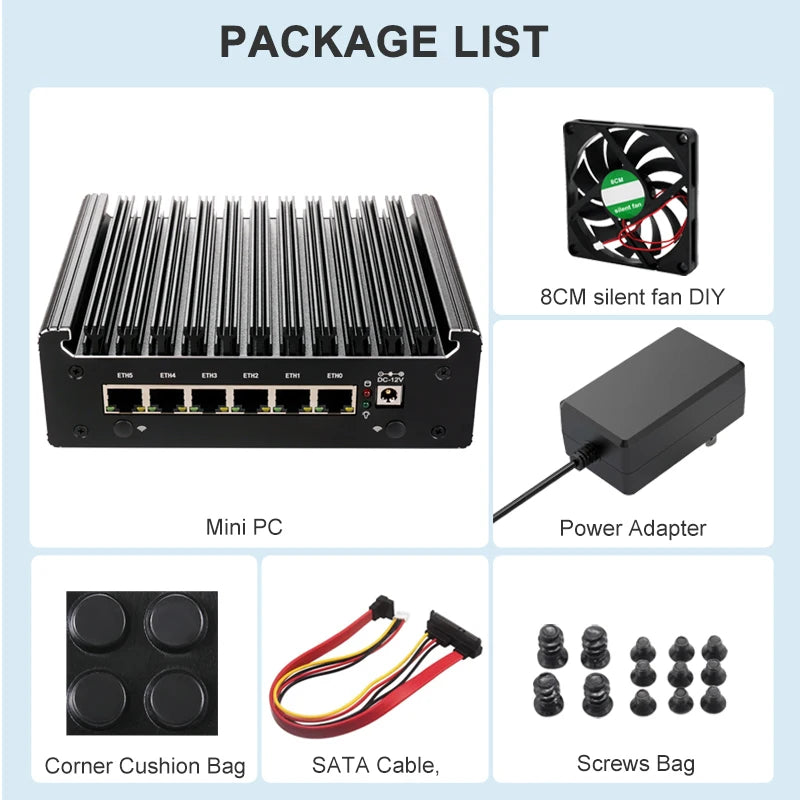

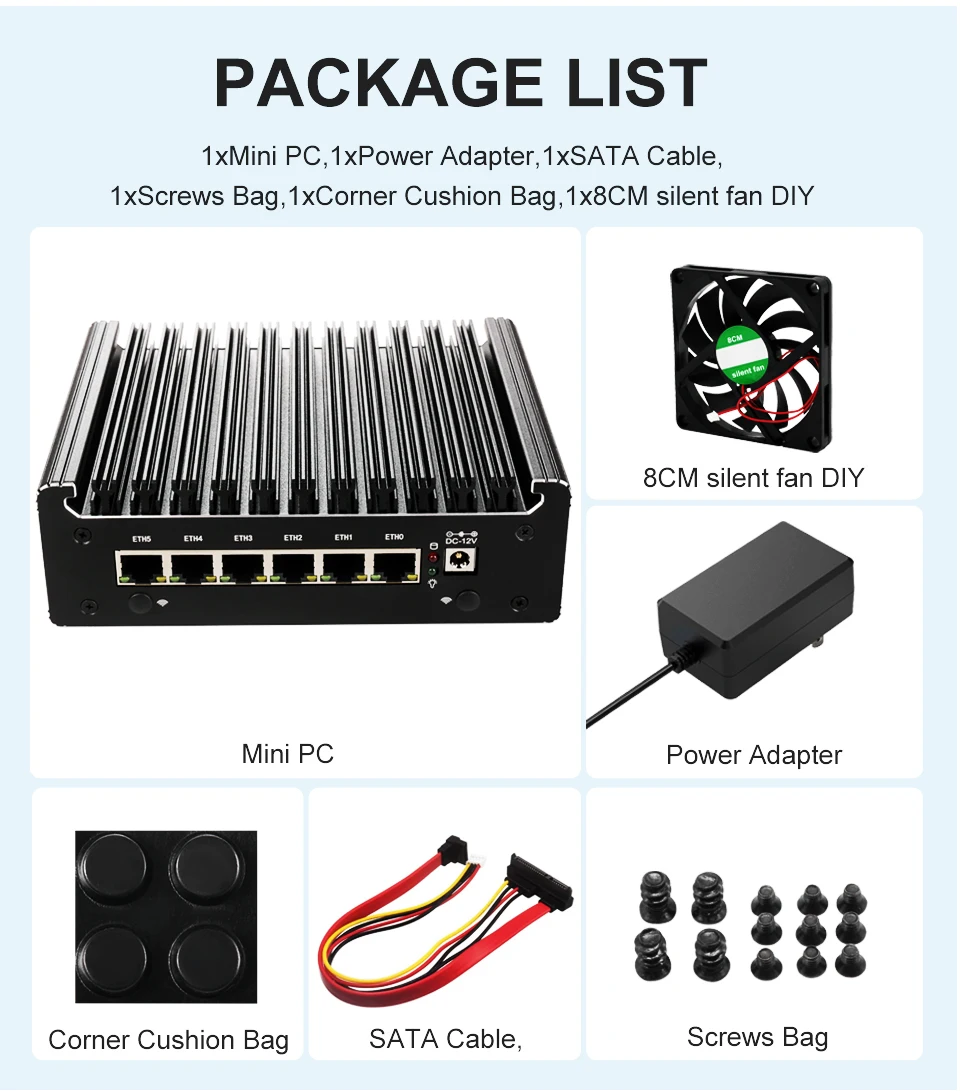

 Package List:

l 1xmini PC(Ship according to order specifications).

l 1xSATA Cable.

l 1xScrews Bag.

l 1xCorner Cushion Bag.

l 1x8CM silent fan (free-while supplies last-DIY).

l 1xPower Adapter(Select the socket to be shipped according to the order).

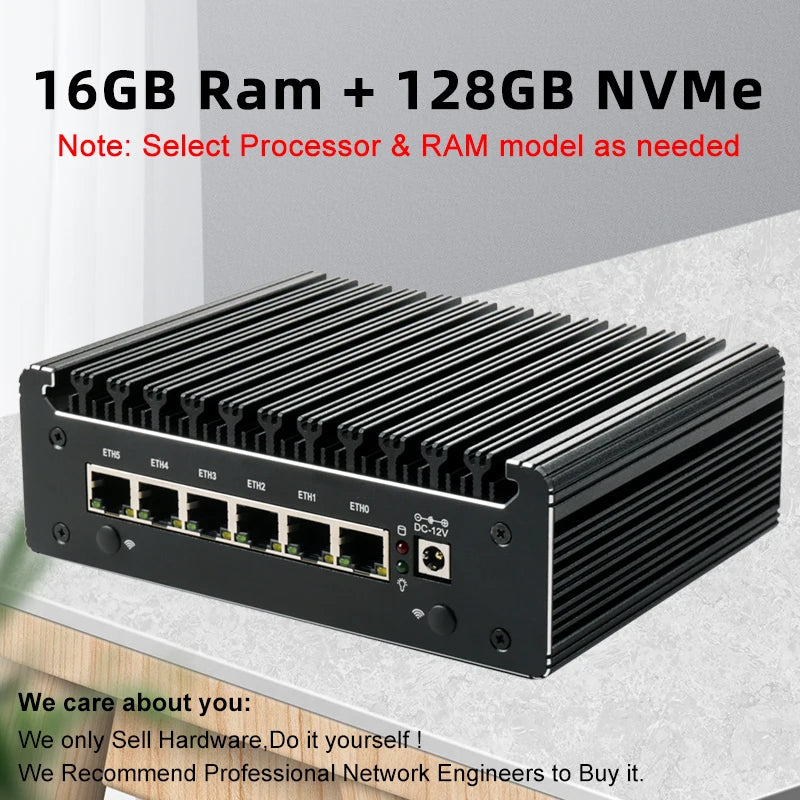

 we care about you:

l Suggest to install newest version of following systems with supportable kernel: pfSense-CE 2.7, OPNsense 23.x, pfSense Plus, OpenWrt,ESXi, Proxmox, CentOS etc

l We only provide hardware support & don't sell any commercial system software. Do it yourself.

l This product has certain network expertise and is recommended for professional network engineers to purchase.
