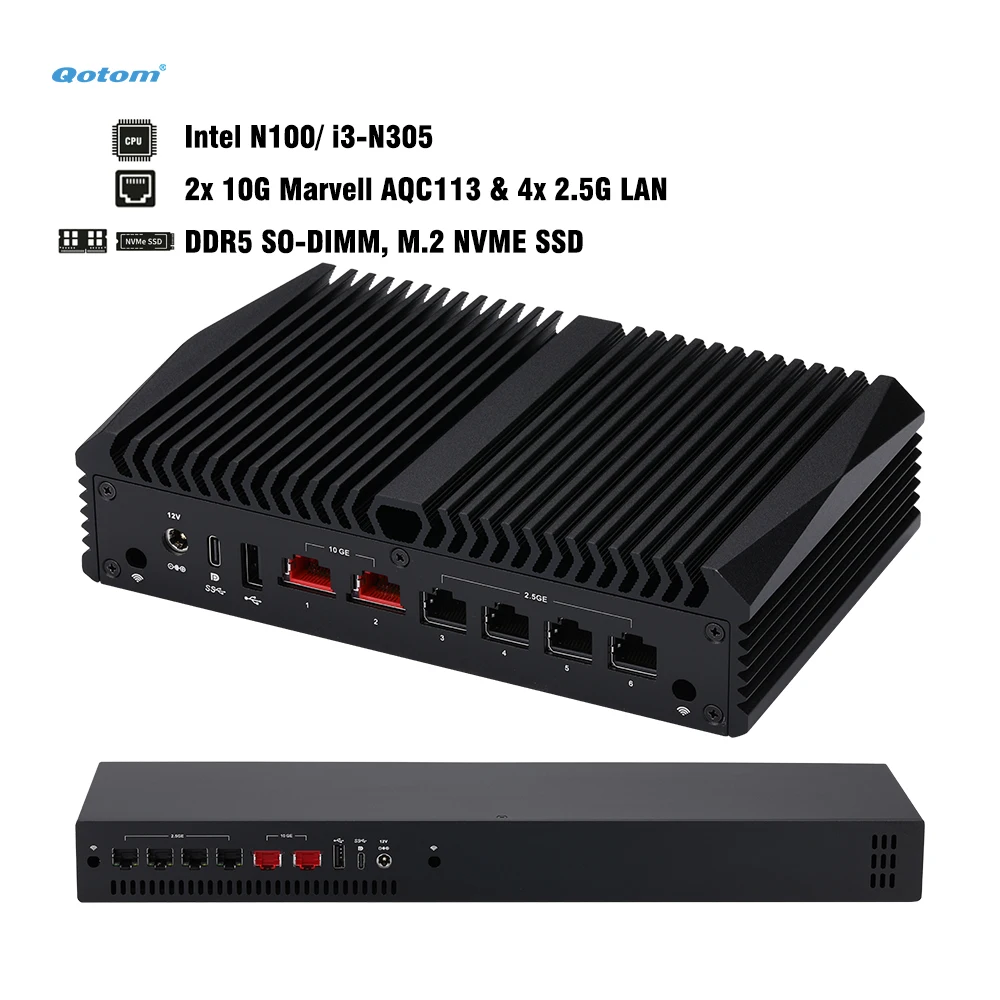

Mini PC & Router Appliance – Intel N100 / i3-N305, 2x 10G Marvell LAN, 4x 2.5G Intel i226V LAN, DDR5 SO-DIMM, M.2 NVME SSD

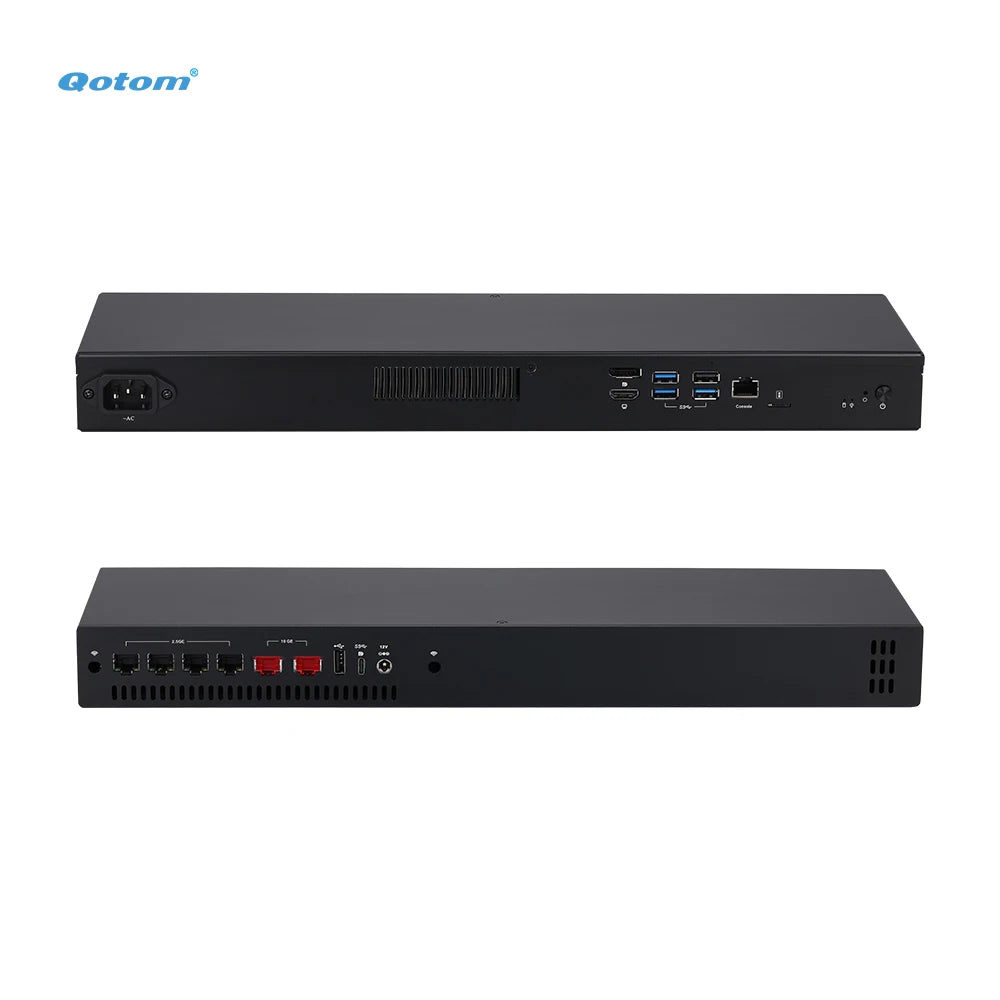

Mini case S13 and 1U Rack for you to choose

IMPORTANT PRE-PURCHASE NOTICE (PLEASE READ)

To ensure this hardware fits your project perfectly, please review the following technical constraints before purchasing:

• OS Compatibility (No pfSense/OPNsense)

The ultra-fast Dual 10G Marvell AQC113 network interfaces require modern drivers. We highly recommend OpenWrt, UEFI Linux (Ubuntu/Debian), or Windows 10/11. Unix-based systems (including pfSense, OPNsense, and FreeBSD) currently DO NOT have drivers for this Marvell chipset and are not supported.

• Storage Limitations

To maintain a highly compact and thermally efficient design, this model exclusively supports M.2 NVMe SSDs. It does NOT support legacy 2.5-inch SATA SSDs or HDDs.

• Wireless Connectivity

There is NO internal Wi-Fi slot on the motherboard. If you require wireless capabilities, please plug in an external USB Wi-Fi adapter.

Unrivaled Networking Bandwidth

Equipped with 2x 10G Marvell AQC113 LAN ports and 4x 2.5GbE LAN ports, this appliance is a powerhouse for extreme data routing. Perfect for upgrading your home lab to 10-Gigabit speeds, handling multi-gigabit fiber internet, and deploying high-throughput OpenWrt router builds.

Next-Gen Processing & DDR5

Choose between the Intel Processor N100 (4 Cores / 4 Threads) or the powerful Core i3-N305 (8 Cores / 8 Threads). Combined with support for ultra-fast DDR5 memory, this appliance effortlessly handles high-load network packet processing, Docker containers, and virtual machines without breaking a sweat.

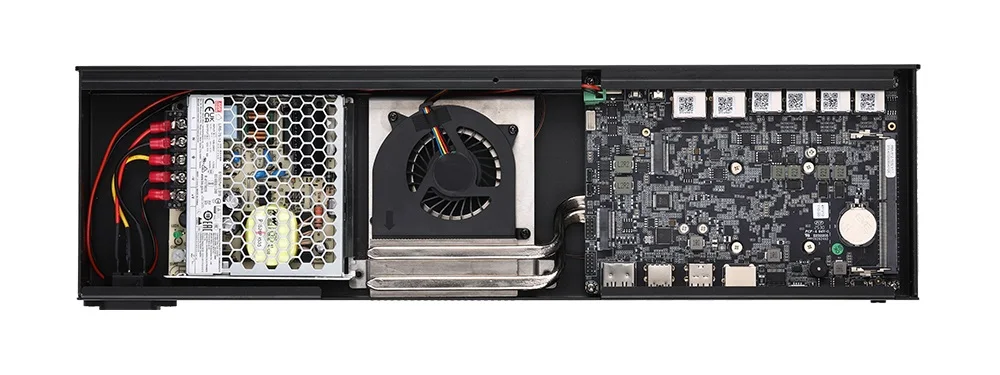

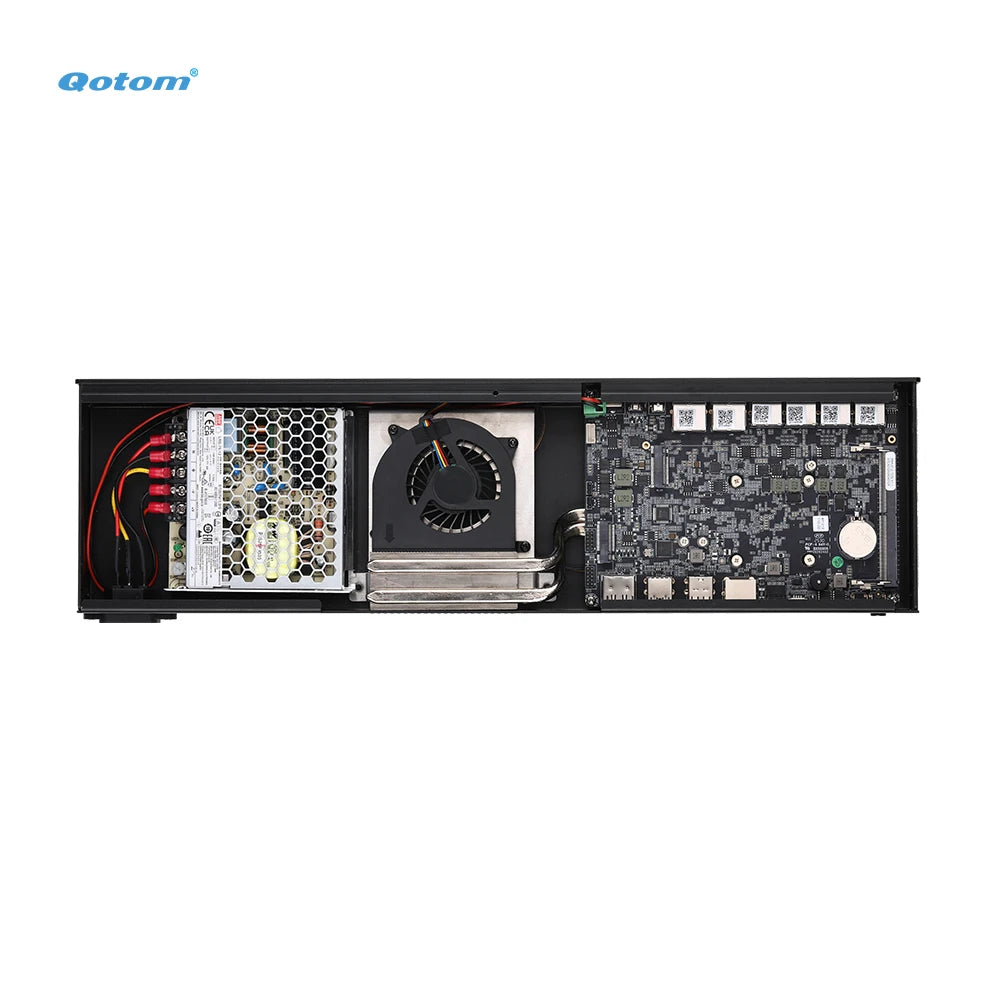

Hybrid Cooling for Peak Stability

Pushing dual 10G networking requires serious thermal management. This appliance utilizes a Hybrid Cooling System: the heavy-duty aluminum chassis acts as a massive passive heatsink for near-silent standard operation, while a dedicated internal assist fan kicks in during heavy loads. This ensures your processor and Marvell AQC113 chips never thermal throttle, guaranteeing 24/7 rock-solid stability even under extreme network traffic.

Intel Processor

• Q10922H6: Intel Processor N100 6M Cache, Quad Core up to 3.40 GHz, CPU TDP 6W

• Q10924H6: Intel Processor X7425E 4M Cache, Quad Core up to 3.20 GHz. CPU TDP 12W

• Q10932H6: Intel Core i3-N305 Processor 6M Cache, 8 Cores up to 3.80 GHz. CPU TDP 15W

• Q11032H6: Intel Processor Core i3-N355 6M Cache, 8 Cores up to 3.90 GHz, CPU TDP 15W

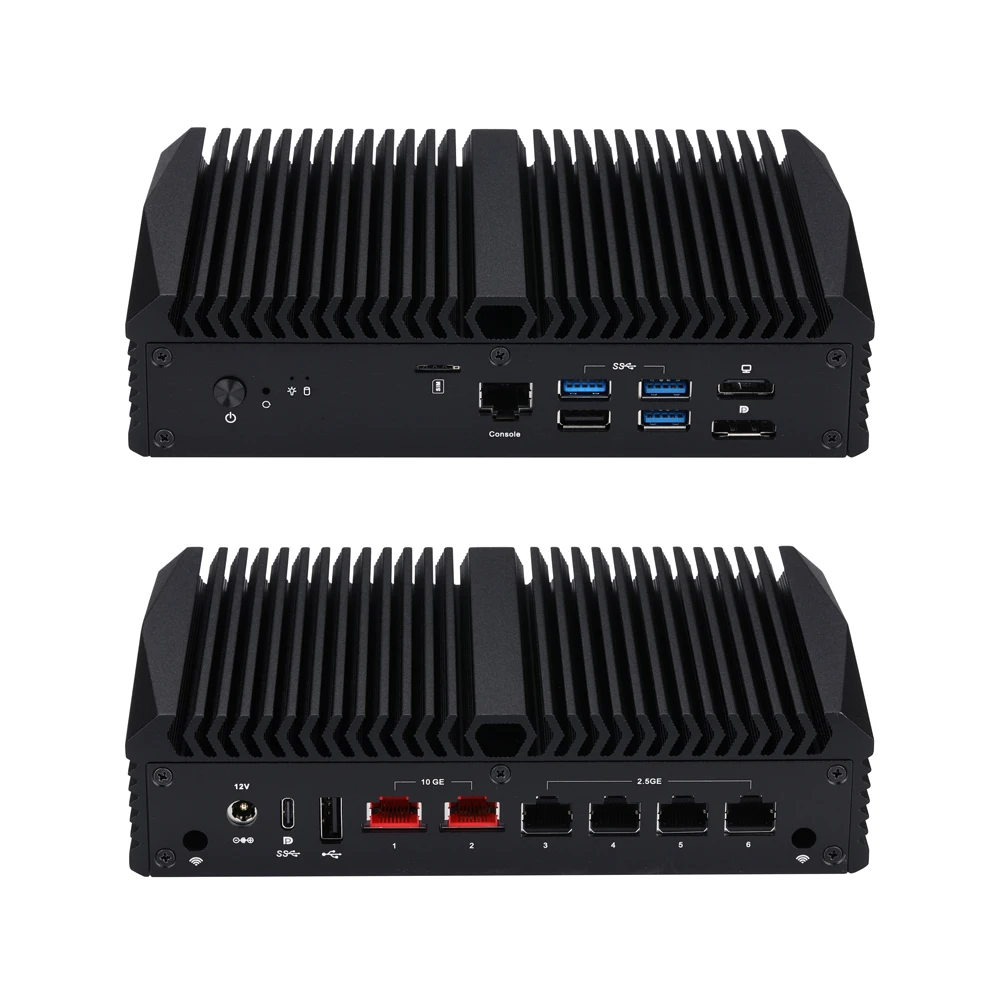

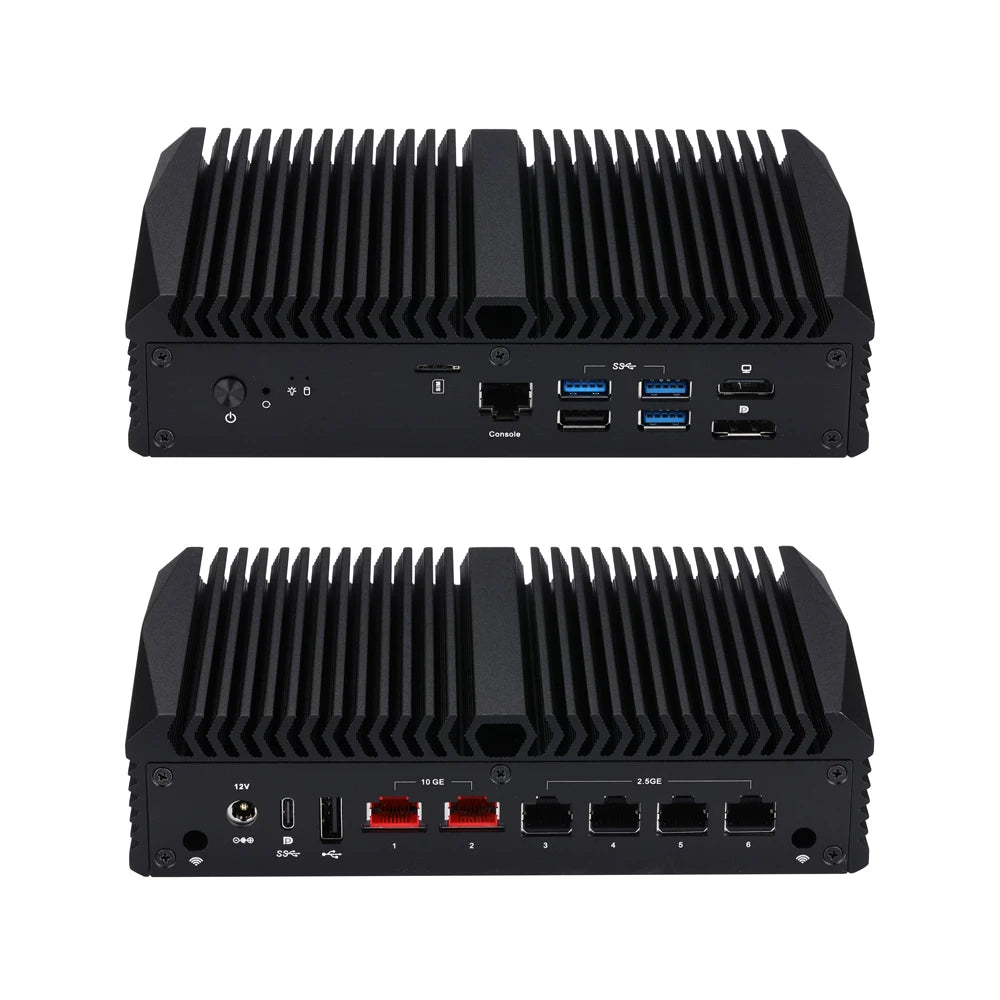

Front I/O

• 1 x Power Button, 1 x Reset Button
• 1 x Power LED, 1 x HDD LED
• 1 x Nano SIM Slot
• 1 x RS-232 Port (RJ-45)
• 1 x HD, 1 x DP
• 3 x USB 3.0, 1 x USB 2.0

Rear I/O

• 1 x DC Jack
• 1 x USB 2.0
• 1 x Type C (USB 3.0, Display Port)
• 2 x Marvell AQC113 10 Gigabit LAN
• 4 x Intel I226-V 2.5 Gigabit LAN

Expansion

• 1 x M.2 for 4G/5G (B key, Type: 3042/3052)
• 1 x M.2 for SSD (M key, Type: 2280, PCIe 3.0 x 1)
• 1 x DDR5 SO-DIMM Socket (Up to 16G)
• 1 x SIM Card Slot
• AutoStart Jumper, 1 x 3Pin, Pitch 2.54mm
• CMOS Clear Jumper, 1 x 3Pin, Pitch 2.0mm
