Processors

Intel Core i3 4010U, 2 cores 4 threads, 3M Cache, 1.70 GHz, TDP: 15W

Intel Core i3 5005U, 2 cores 4 threads, 3M Cache, 2.0 GHz, TDP: 15W

Intel Core i5 4200U, 2 cores 4 threads, 3M Cache, 1.60Ghz up to 2.60 GHz, TDP: 15W

Intel Core i5 5200U, 2 cores 4 threads, 3M Cache, 2.20GHz up to 2.70 GHz, TDP: 15W

Intel Core i7 4500U, 2 core 4 threads, 4M Cache, 1.80Ghz up to 3.00 GHz, TDP: 15W

Intel Core i7 5500U, 2 cores 4 threads, 4M Cache, 2.40GHz up to 3.00 GHz, TDP: 15W

Intel Celeron 2955U, 2 cores 2 threads, 2M Cache, 1.40GHz, TDP: 15W

Intel Pentium 3805U, 2 cores 2 threads, 2M Cache, 1.90GHz, TDP: 15W

intel Core i3-7100U, 2 cores 4 threads, 3M Cache, 2.40GHz, TDP15W

Graphics Card

2955U: Intel HD Gprahics

3805U: Intel HD Graphics

4010U: Intel HD Graphics 4400

4200U: Intel HD Graphics 4400

4500U: Intel HD Graphics 4400

5005U: Intel HD Graphics 5500

5200U:Intel HD Graphics 5500

5500U:Intel HD Graphics 5500

i3-7100U: intel HD Grpahics 620

Memory(RAM)

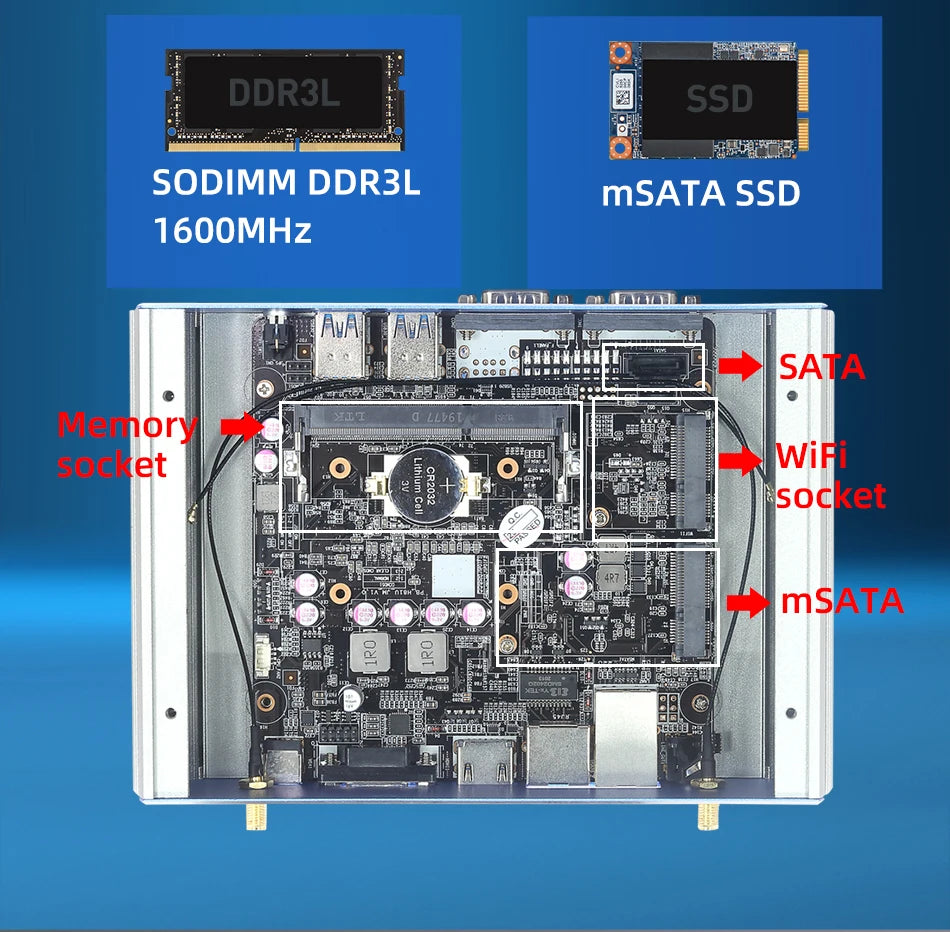

2955U/3805U/i3-5005U/i5-4200U/5200U/i7-4500U/5500U: 1x SODIMM DDR3L 1333/1600Mhz

2955U/3805U/4010U/4200U/4500U max support to 1x 8GB RAM

5005U/5200U/5500U max support to 1x 16GB RAM

i3-7100U: 1x SODIMM DDR4 , max to 32GB

Hard Disk(SSD)

2955U/3805U/i3-5005U/i5-4200U/5200U/i7-4500U/5500U:

Support 1* mSATA SSD + 1*2.5" SATA HDD/SSD

i3-7100U support 1* M.2 NVMe /SATA SSD + 1* 2.5" SATA HDD/SSD

Dual Display

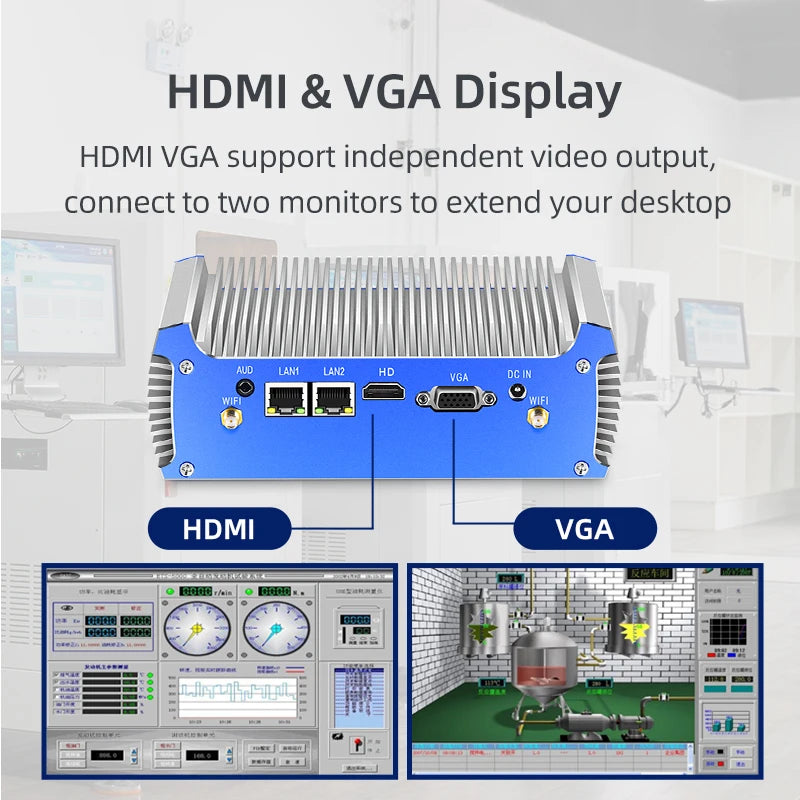

VGA x1, HDMI1.4 x1 Support Dual-Line Synchronous or Independently Display

Supported OS

Win 10/8.1/7, Linux, ubuntu, Openelec, etc.

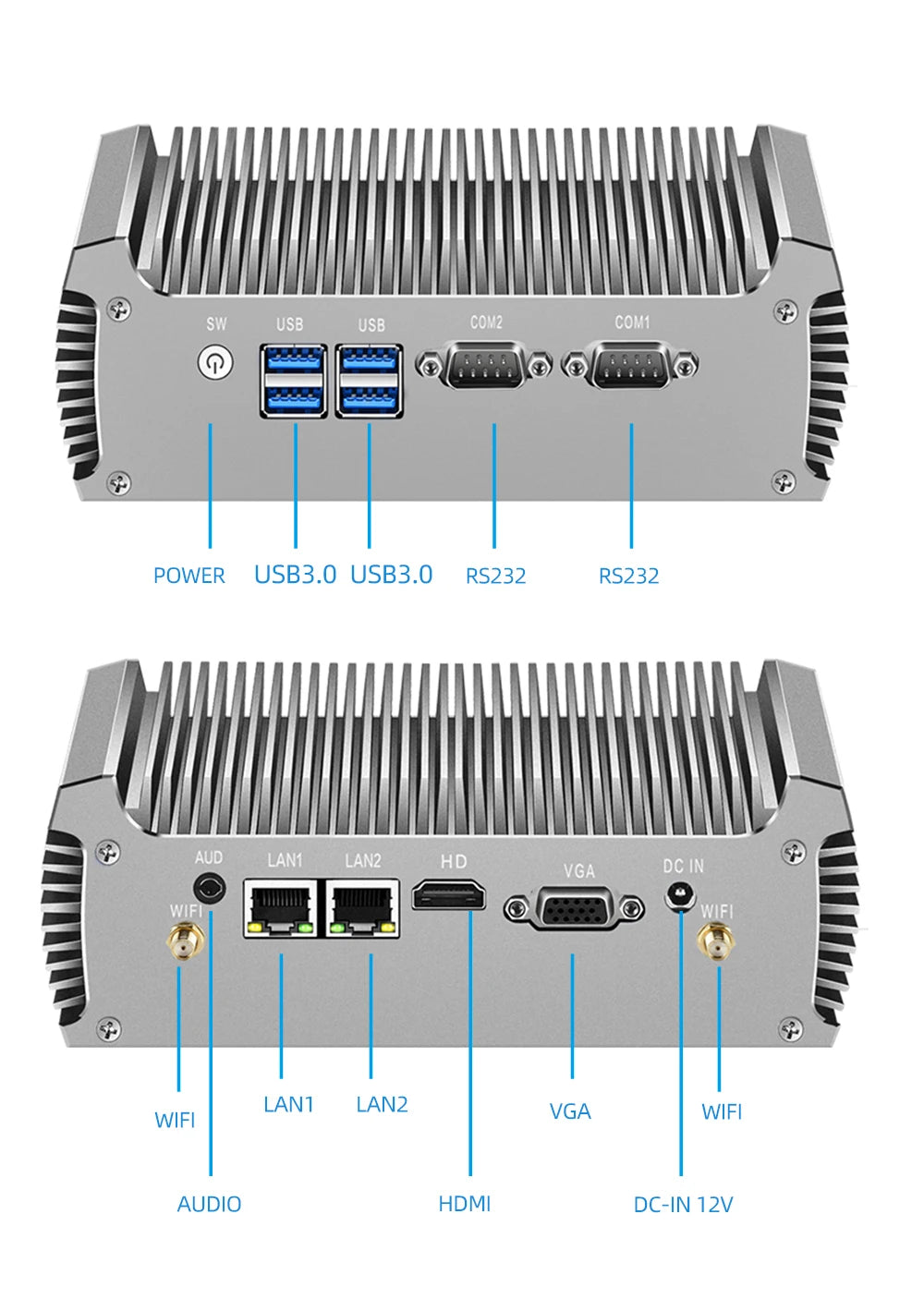

Front-Panel Connectors

Power ON/Off

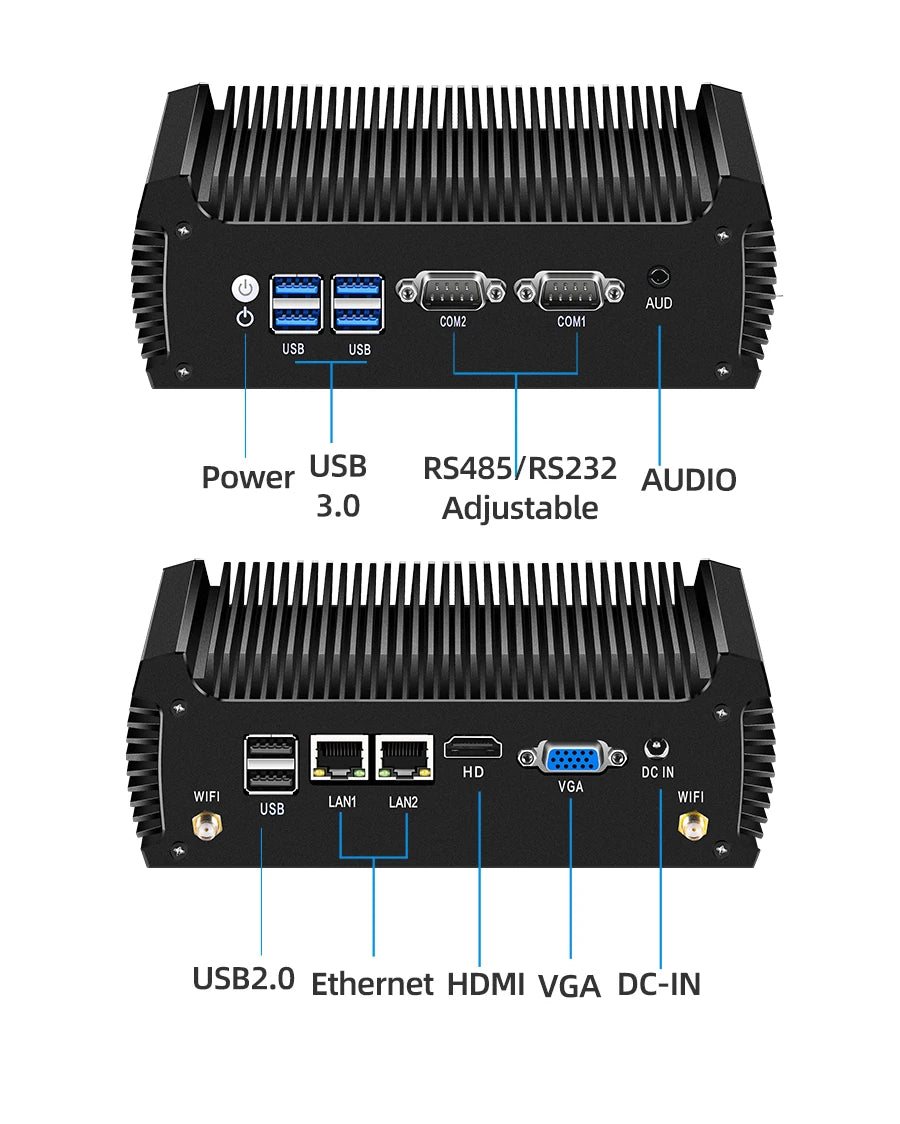

2 x RS232 COM (i3-7100U support RS232/485 adjustable)

4 x USB 3.0

i3-7100U has 4x USB3.0 and 2x USB2.0

Rear-Panel Connectors

1 x HDMI + 1x VGA

2 x LAN RJ45 10/100/1000 Mbps Adaptive
1 x DC IN 12V
1 x Audio 2-in-1 jack
2 x WIFI antennas connectors

Ethernet port

2 x RJ45 1000Mbps Realtek 8111H Gigabits Ethernet

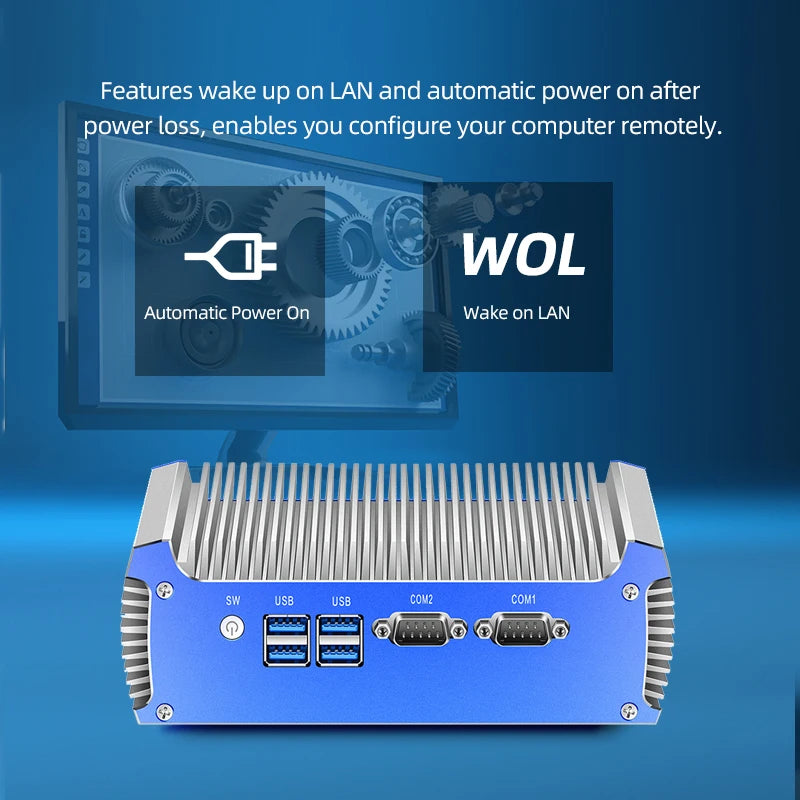

Support Wake UP on LAN, S5 RTC Wake Settings, PXE Boot, Restore on AC power loss.

WIFI

Mini -PCIE , with dual antenna, 300Mbps

Audio

Realtek ALC662/897 Audio Control Chip, support 2 Channels, Stereo, Line out

Extension Options

1 x Mini PCI-E slot

Power

Input: DC100-240V AC/50-60Hz Output: DC 12V-5A/3A

Mounted

VESA/Wall-mounted/Desktoped

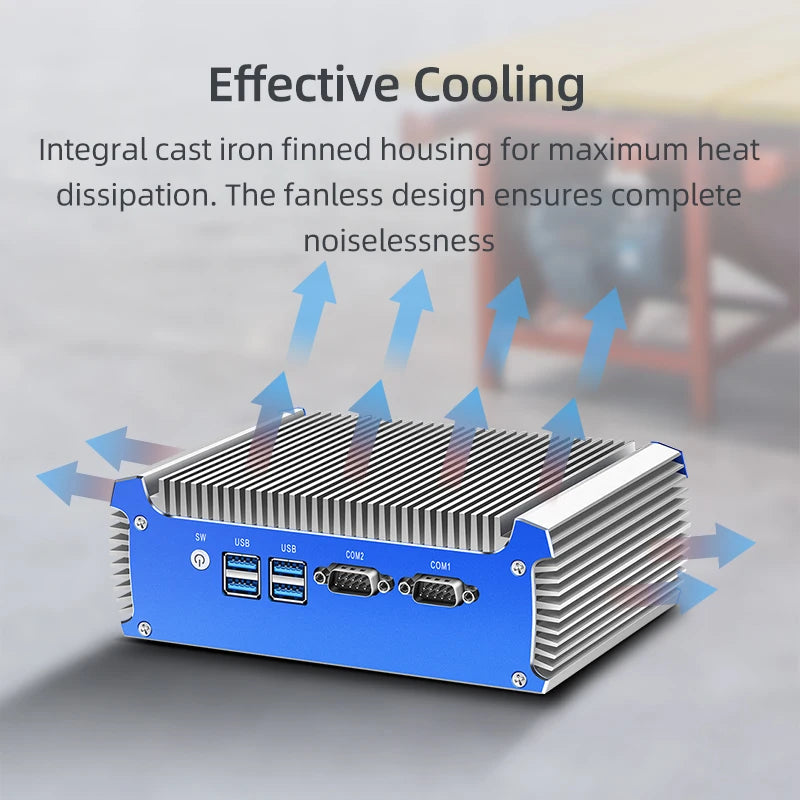

Cooling System

Fanless Passive Cooling withHeatSink Aluminum

Chassis Material

Aluminum Alloy

Operating Temperature

-20 to 65℃

Storage Temperature

-20℃ to 65℃

Relative Humidity

5%~95% (non-condensing)

Dimension

182.5*126.5*62.6mm

Package Contents

1x Mini PC X46G
1x Power Adapter

1x SATA Power Cable & SATA Cable

1x User Manual
