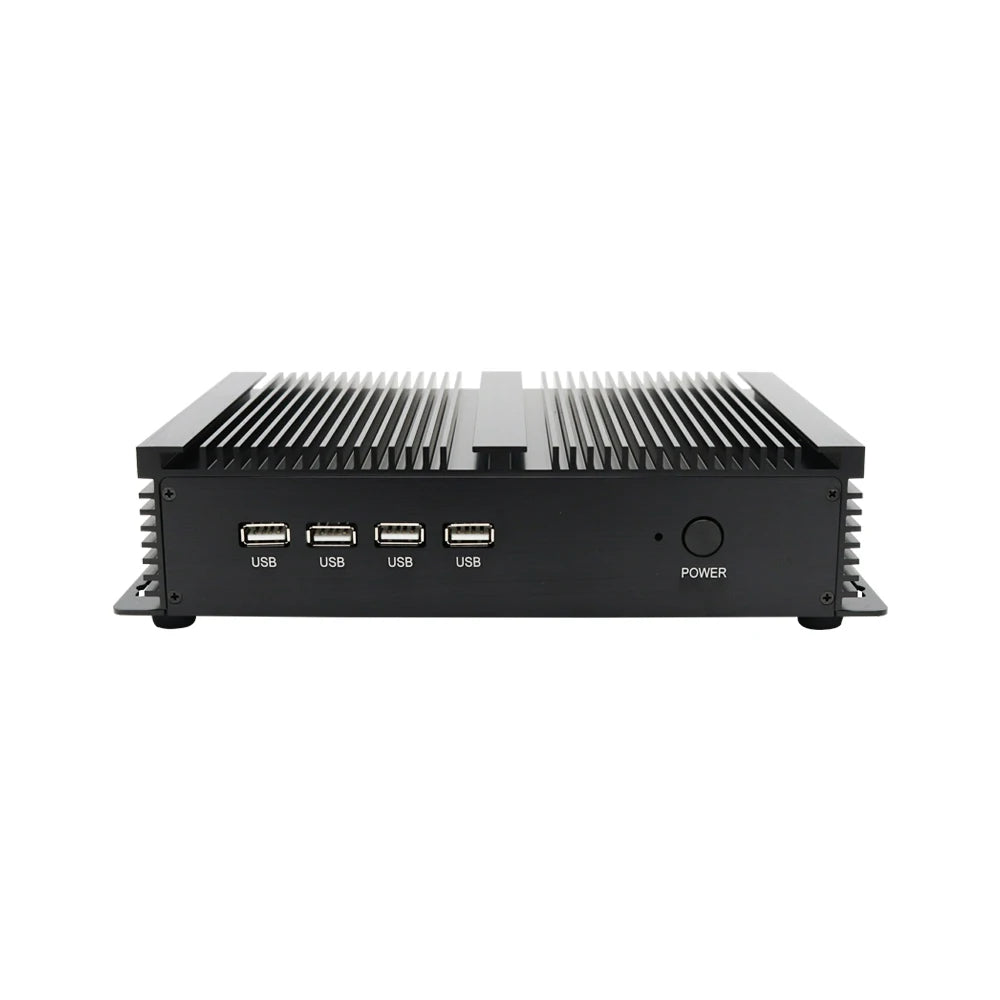

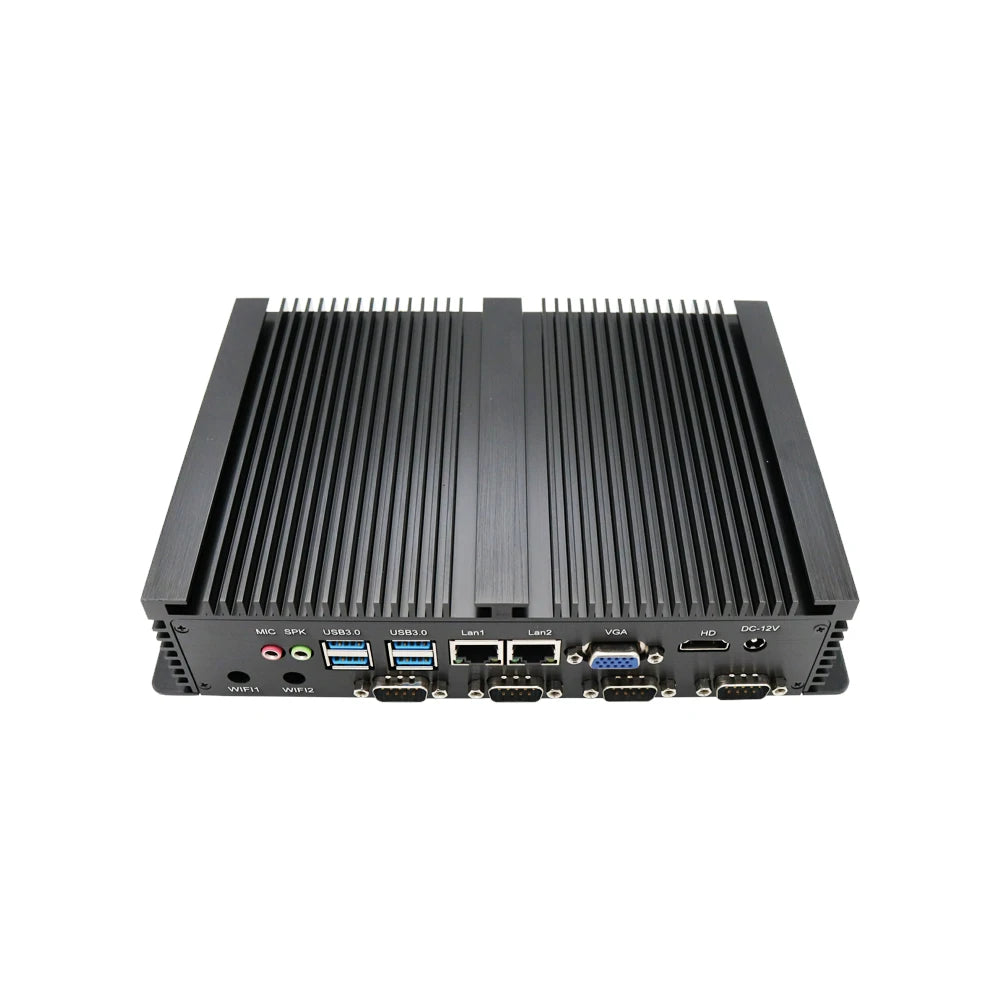

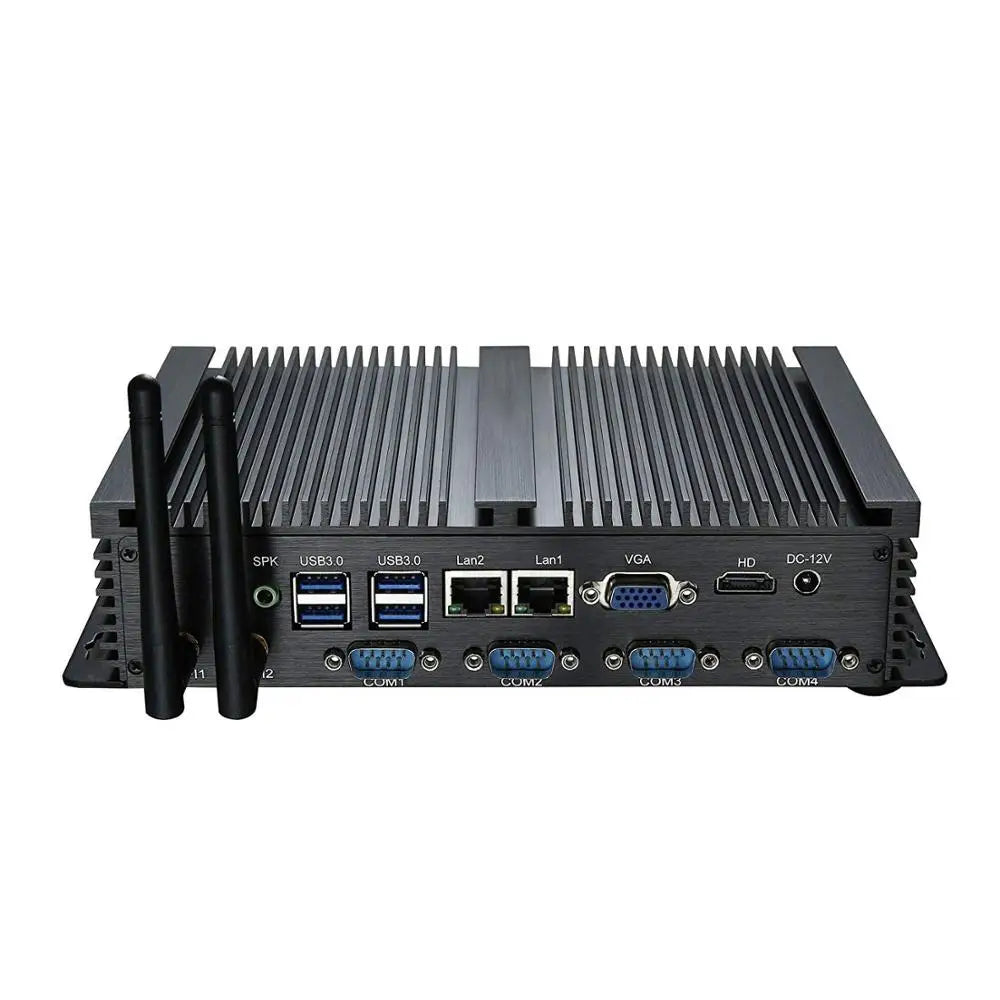

Yohirs Industrial Fanless Mini Computer Intel Core i5 3317U Celeron 1037U 2xRJ45 Lan 4xRS232 COM 8USB Rugged Micro PC Win7 XP OS
CHF 450.59
Taxes included.
Shipping Countries & Returns
Free express shipping within the EU in 3–5 days. Worldwide shipping in 3–7 days.
We process and ship all orders as quickly as possible and ensure that your items arrive the soonest.
Returns & Exchanges
Returns are accepted within 14 days of the delivery date. Please contact us to initiate a return if there is a product defect or damage.
Shipping countries
INTERNATIONAL - United States, Canada, Hong Kong SAR, Israel, Japan, South Korea, Malaysia, New Zealand, Singapore.
EUROPE - Austria, Belgium, Bulgaria, Croatia, Cyprus, Czechia, Denmark, Estonia, Finland, France, Greece, Hungary, Ireland, Italy, Latvia, Lithuania, Luxembourg, Malta, Netherlands, Poland, Portugal, Romania, Slovakia, Slovenia, Spain, Sweden, Germany, Switzerland, United Kingdom, Norway.
Best Value Mini PCs Online
Free Shipping Worldwide
24/7 Technical Support

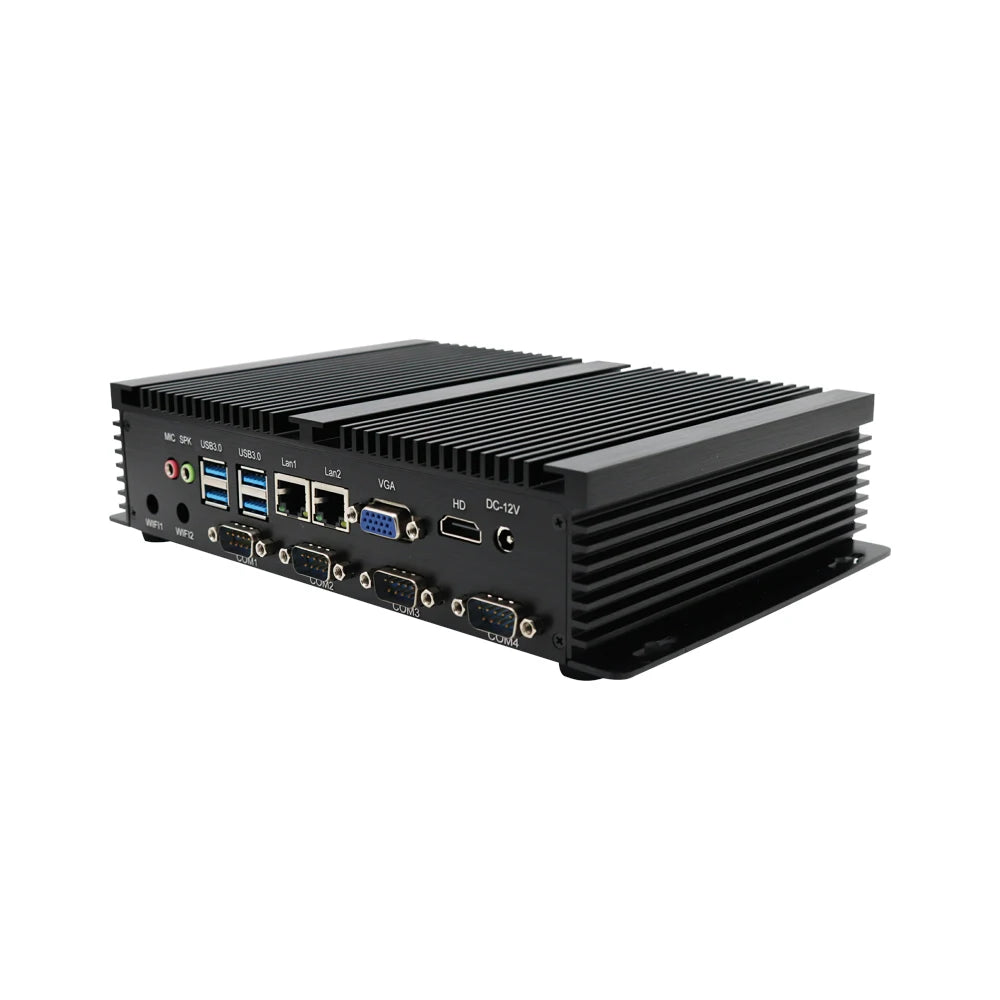

Yohirs Industrial Fanless Mini Computer Intel Core i5 3317U Celeron 1037U 2xRJ45 Lan 4xRS232 COM 8USB Rugged Micro PC Win7 XP OS
SPECIFICATIONS
Brand Name: yohirs
COM: 4 *RS232 COM
CORE: Dual Core Four Threads
CPU: intel Core i5 3317U/Celeron 1037U
Certification: CE,FCC,RoHS
Color: Black color aluminum alloy
Display: 1 x VGA, 1 x HDMI
Feature: Fanless
Funtions: Calls on function automatically, Wake-On-LAN
GPU: Intel HD Graphics 4000
Graphics Card Type: Integrated Card
Hard Drive Capacity: 120GB
High-concerned chemical: None
LAN: 2*Intel GbE RJ45 10/100Mbps/1000Mbps BaseT LAN
Memory Capacity: 4GB

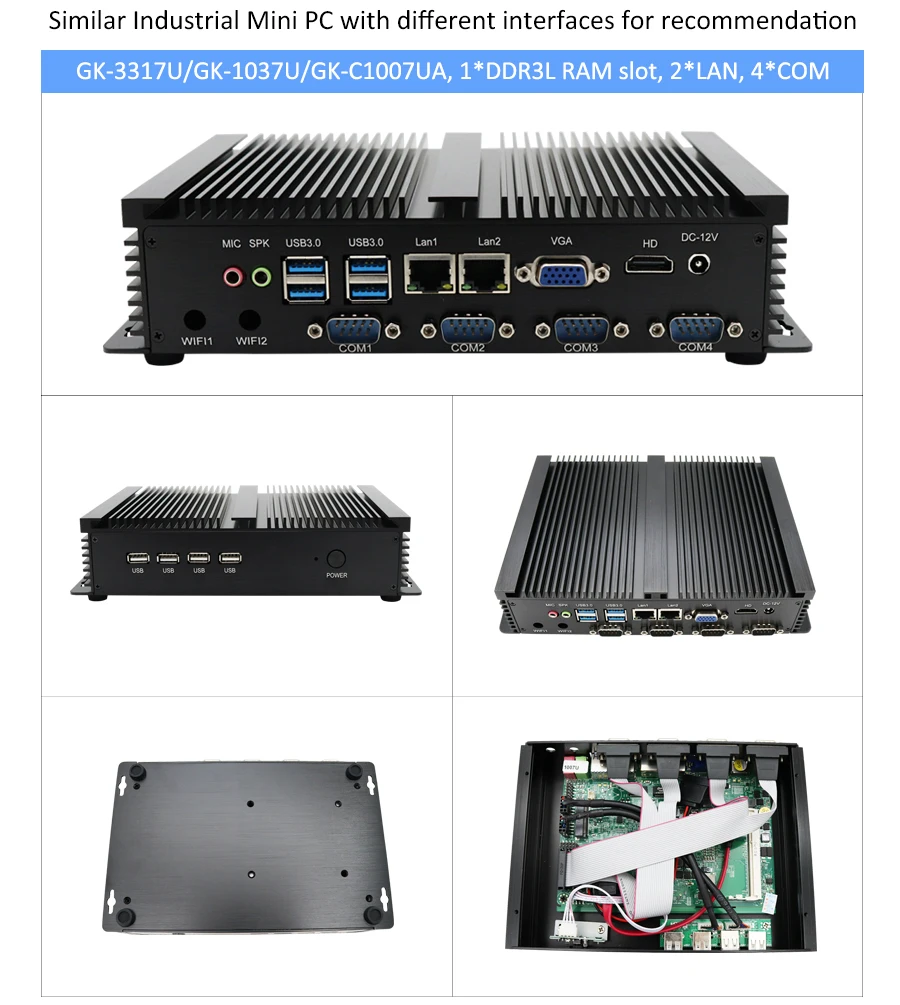

Model Number: GK-3317U/1037U
OS: Windows 7/Windows 8/Windows 10/Linux
Origin: Mainland China
Processor Brand: Intel
Processor Main Frequency: 2.60GHz
Processor Model: Intel Core i5-3317U
RAM: 1*DDR3L-1600, DD3L-1333, LPDDR3-1600, LPDDR3-1333
SIZE: 34*28*9cm

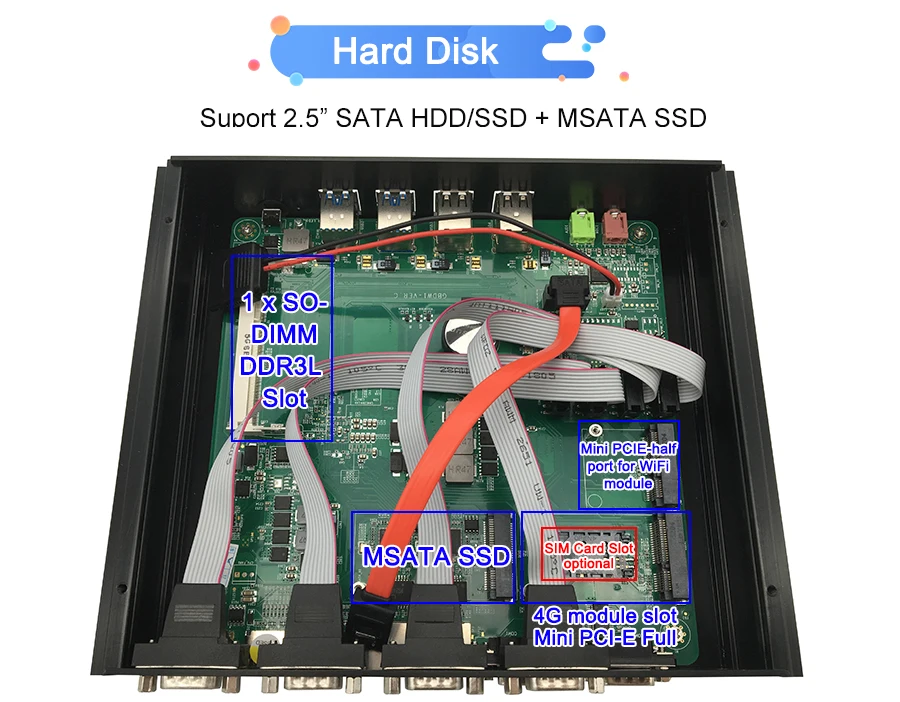

Storage: 1*M-SATA3.0 SSD, 1*SATA3.0 HDD support 6Gb/s
Type: Mini Desktop,Mini PC
USB: 4 x USB2.0, 4 x USB3.0
Use: Multimedia
compatible: for industrial/home/school/office
Product Highlight:

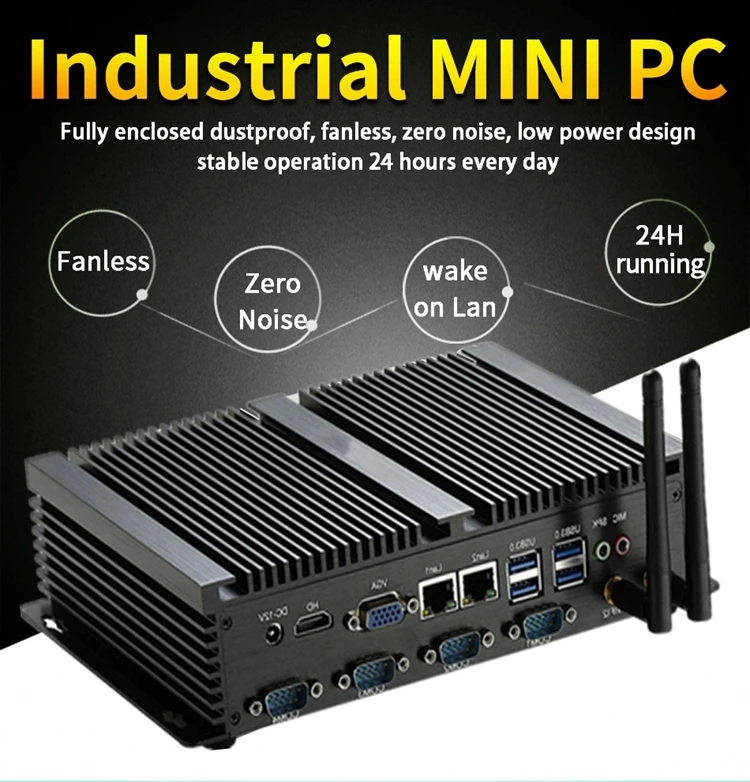

- Brushed Full Aluminum Alloy Black color shell, Exquisite production craft on outside design.

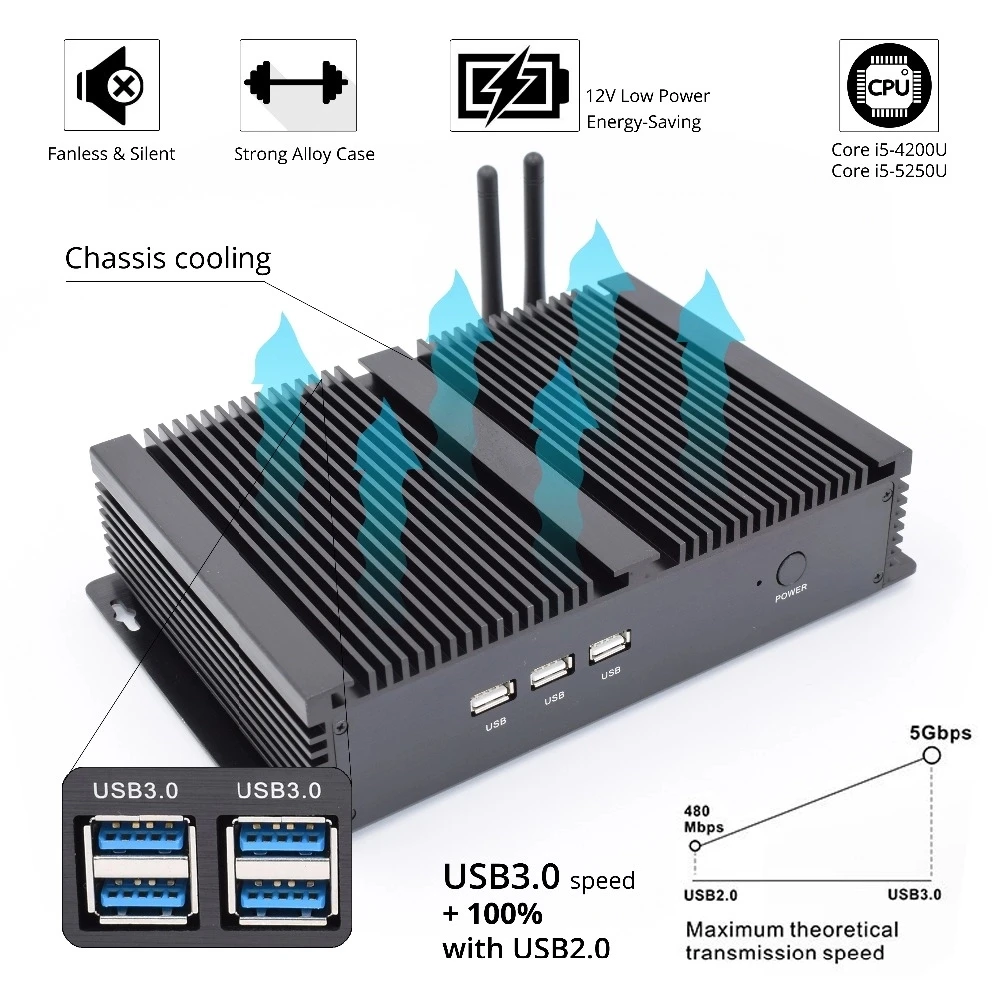

- Fanless system without cooling fan, no any noise, work as long as 24 hours.

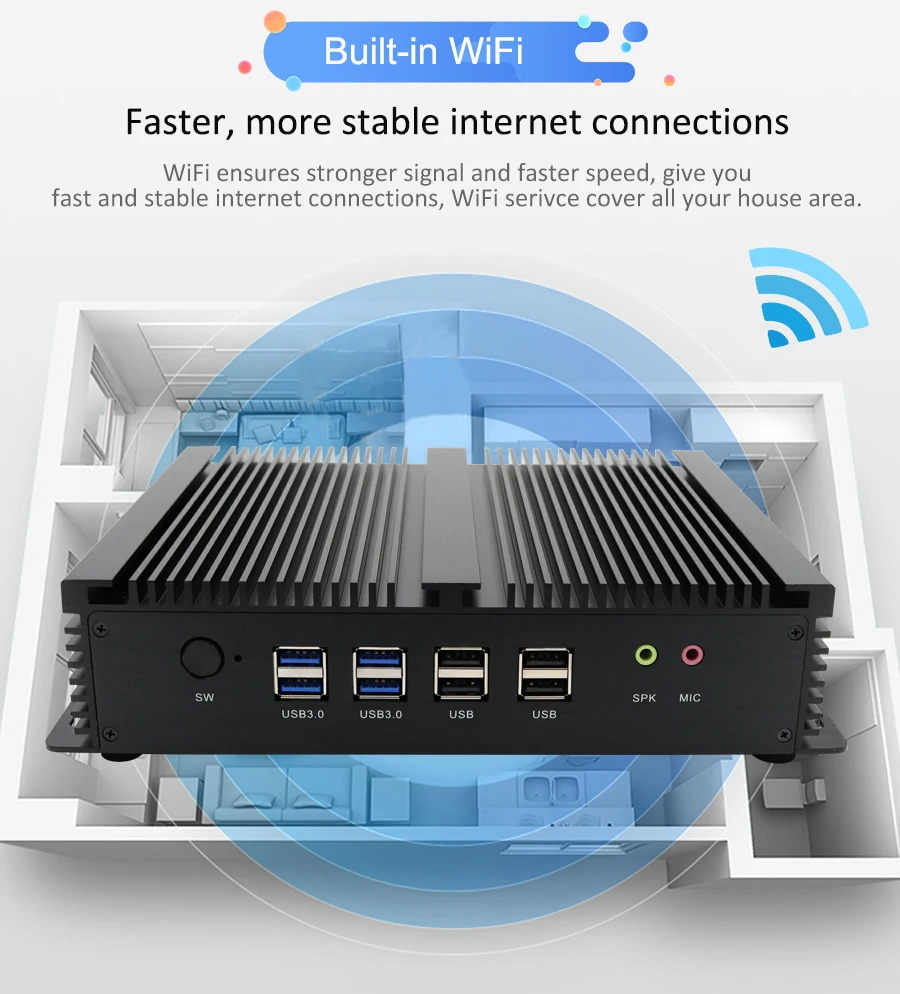

- Built-in Wi-Fi or Bluetooth with dual external antennas for option.
- Low consumption TDP only 17W, save much energy and eco-friendly.

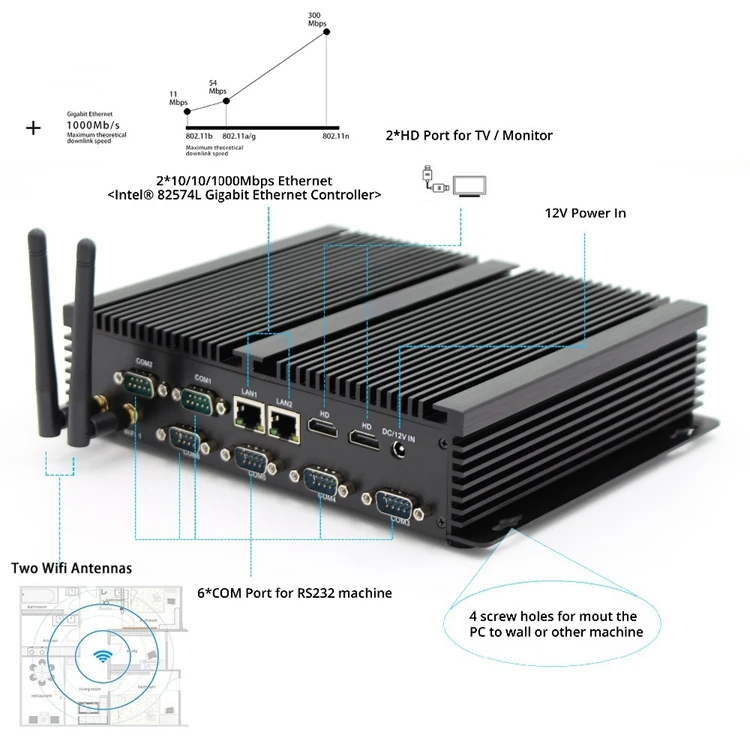

- Dual RJ45 Gigabit LAN and 4 RS232 COM ports fit for industrial field.

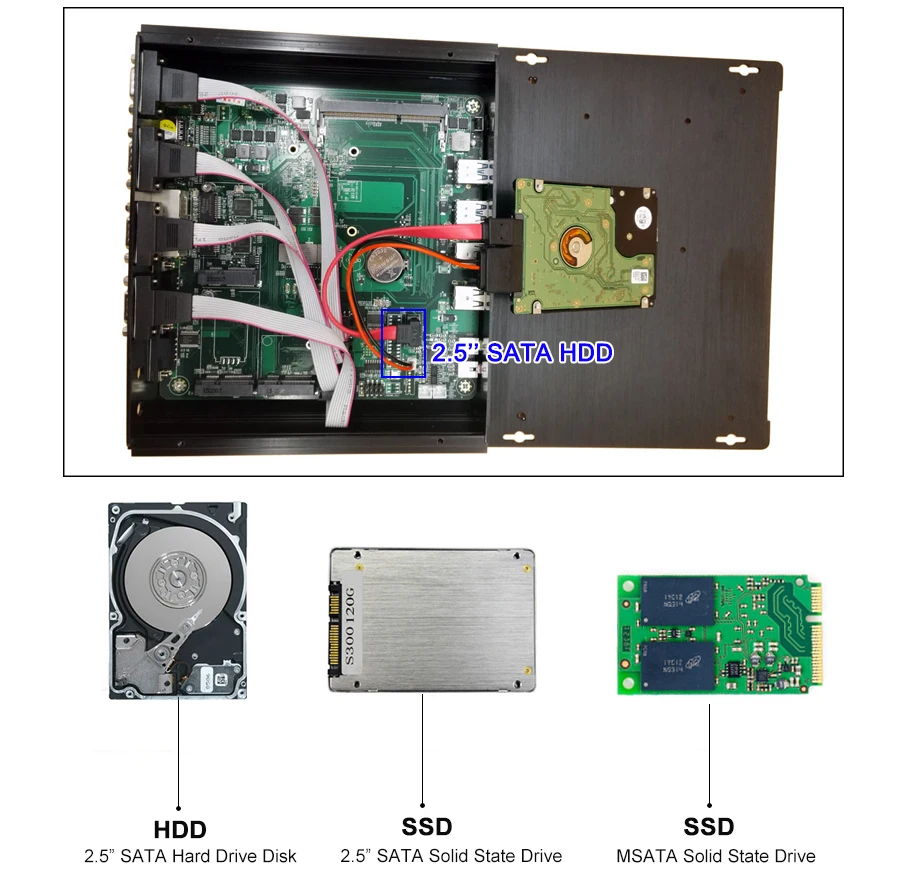

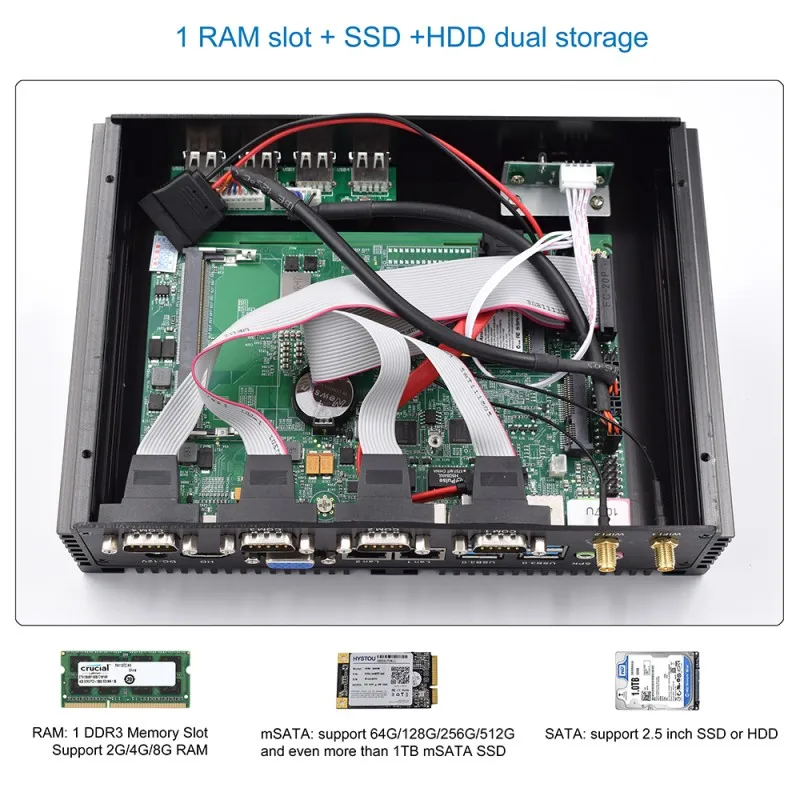

- Can install MSATA SSD+2.5” SATA HDD together.
- Support VGA + HDMI dual display output synchronously.
Processor parameter for referance only :

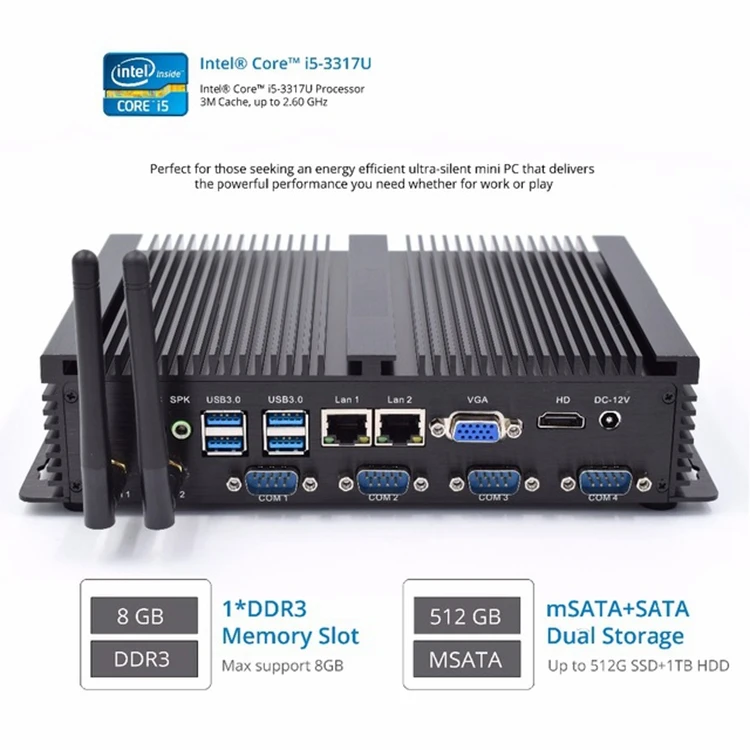

1. CPU Intel Core i5 3317U 2 core 4 threads 3MB cache 1.7GHz Max 2.6GHz TDP 17W Graphics HD 4000.
2. CPU Intel Celeron 1037U 2 core 2 threads 2MB cache 1.8GHz TDP 17W Graphics HD 2500.
Note:
1.Barebone Mini PC ("No Ram No HD No WiFi" bundle) package DO NOT include WiFi(antennas), if you need, please pay extra $6 for WIFI at this link.If you need help,pls contact us.
All industrial computers with4/ 6 coms in this shop do not have WiFi by default.
2.DO NOT buy Barebone Mini PC ("No Ram No HD No WiFi" bundle) If you are NOT IT hardware technician. PC demands professional skill to assemble.We DO NOT compensate for buyer's man-made damage and faulty.
3.CPU 3317U and CPU 3437U/3327U, shipped randomly based on inventory
Basic Information: | |
CPU |
* Onboard Intel Core i5-3317U/5-3347U * Onboard Intel Celeron 1037U * Onboard Intel Celeron 1007U |
TDP |
17W |
Motherboard |
170 x 120mm customized size |
BOIS |
AMI BIOS, ACPI supported |
Chipset |
Intel HM77 Express |
Memory |
1 xSO-DIMM DDR3LSlot support 2GB/4GB/8GBDDR3L DDR3/L/-RS 1333/1600 |
OS |
Windows 7/Windows 8/Windows 10/Linux |

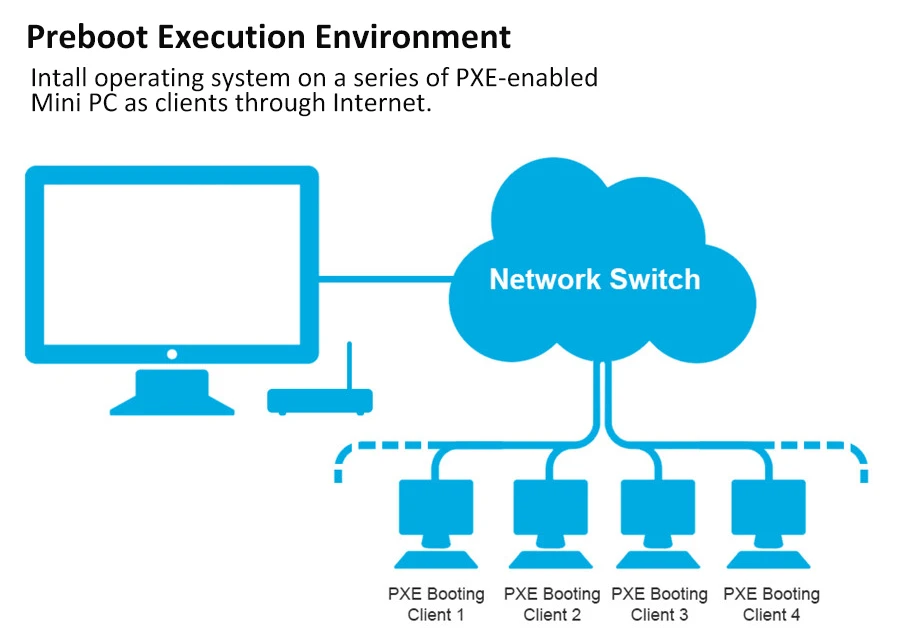

PXE |
YES |
Audio |
Intel(R) display audio @ Intel Panther Point High Definition |
Network |
Onboard Realtek RTL8168/8111/8112PCI-E Gigabit Ethernet NIC 10/100Mbps/1000Mbps BaseT LANAdaptive |
Video |
*INTELIvy Bridge Graphics Controller(350-1050MHz),Intel® HD Graphics 4000 *INTELIvy Bridge Graphics Controller(350-1000MHz) *INTELIvy Bridge Graphics Controller(350-1000MHz) |

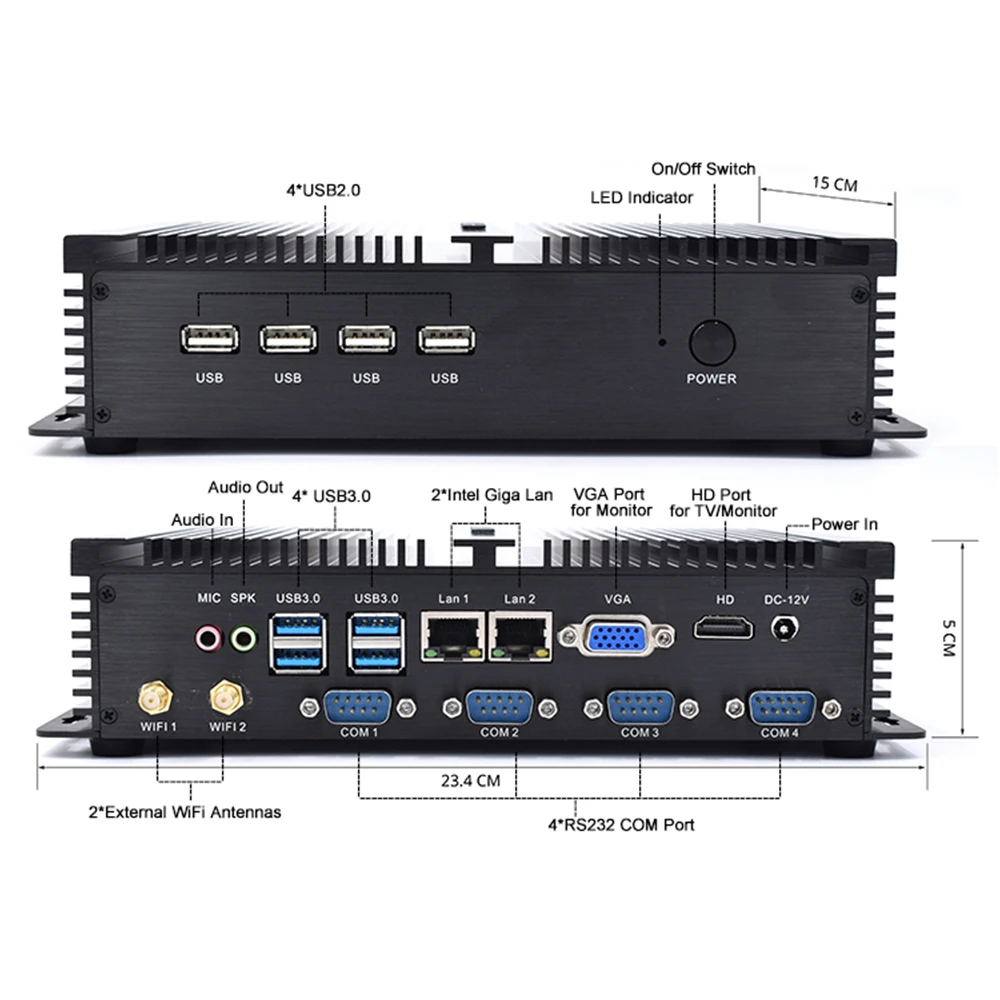

Input/output port | |
Switch |
1 x Power On/Off Switch |
Power |
1 x 12V DC In |
LED |
1 x LED |
USB |
4 x USB2.0, 4 x USB3.0 |
Display |
1 x VGA, 1 x HDMI |
LAN |
2x RJ45 Giga LAN |
COM |
4 x RS232 COM |
Audio |
1 x MIC, 1 x SPK |
Storage |
|
MSATA |
1 x M-SATA3.0 slot for MSATA SSD, support 6Gb/s |
SATA |
1 x SATA3.0 slot for SATA HDD or SSD, support 6Gb/s |
Wi-Fi |
|
Module |

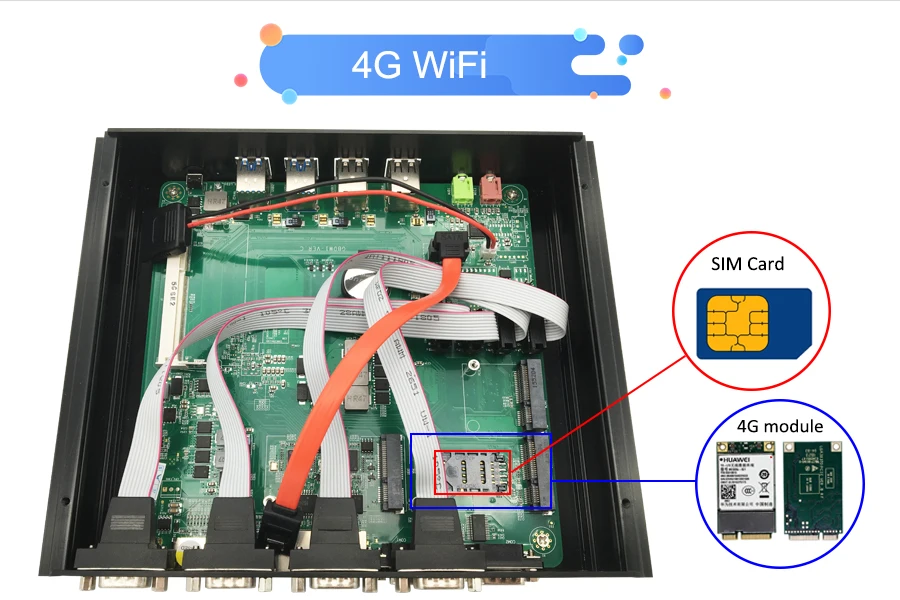

1 x mini PCIE-half port for Wi-Fi module |
Antenna |
2 x inner RF cables and 2 x external antennas |
Power and Working Environment | |
Input |
DC100-240V AC/50-60Hz |
Output |
DC 12V/5A |
Operating Temperature |
0/+70 Centigrade |
Storage Temperature |
-20/+85 Centigrade |
Relative Humidity |
10%~85% (non-condensing) |
Product Dimension & Details | |
Size |
234*150*43mm |
Weight |
Net1.8kg, Gross2.1kg |
Shell |
Black color aluminum alloy |
Mounting |
4 Mounting holes on case |
Cooling Mode |
Fanless |
Function |
Calls on function automatically,Wake-On-LAN |
Package Content |
|
Standard |
1xMini PC, 1xPower Adapter, 1xPower Cord, 1xScrews Bag |
Optional |
Wi-Fi antennas, 1xHDMI cable, 1xUser Manual, 1xLong Screws Bag |
